15mm Explosion-proof Thermographic Camera

➢Safety: Being explosion-proof can operate in hazardous environments without risking explosions due to sparks or heat generation. This is crucial in industries like oil and gas, chemical processing, and firefighting where volatile substances are present.

➢Detection Capability: Thermal imaging technology allows for the detection of heat signatures, making it ideal for identifying potential hazards such as overheating equipment, electrical faults, or even intruders in low-visibility conditions like smoke or darkness.

Contact Now E-Mail Telephone WhatsApp

Product Details

Applications:

Industrial Safety: Used in oil and gas refineries, chemical plants, and manufacturing facilities to monitor equipment integrity, detect leaks, and prevent accidents.

Emergency Response: Deployed by firefighters and emergency responders to locate trapped individuals, assess fire progression, and navigate through smoke-filled environments.

Security and Surveillance: Enhances perimeter security at critical infrastructure sites, military installations, and borders by detecting intrusions or suspicious activities in low-light conditions.

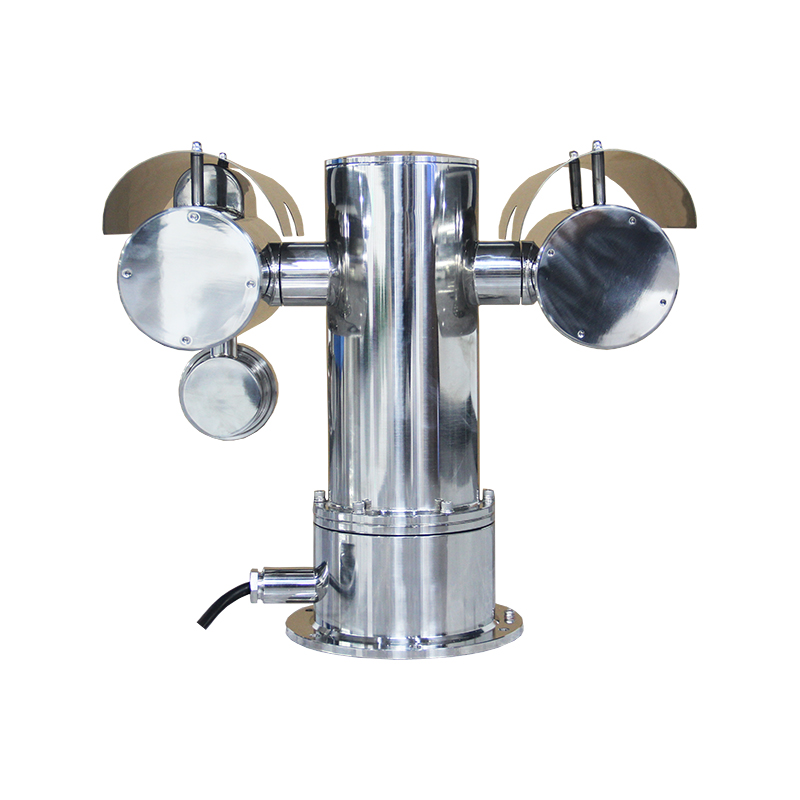

JV-ETVC4115-2037

Technical paramater

JV-ETVC4115-2037
Thermal imaging
Types of detectors	Uncooled infrared focal plane sensor
Material type	Vanadium oxide
Resolution ratio	400×300
Cell spacing	17μm
Response band	8- 14μm
Thermal sensitivity, NETD	40mK/F1.0
Frame frequency output	50/60Hz
Focal distance	15mm
Angle of field	15°×11°
F value	1.0
The temperature bar	Turn on / off
Video coding format	H. 265/H.264/MJPEG
Temperature measurement range	-20℃ ~ + 150℃ or 0 ℃ -550℃
Temperature measurement accuracy	± 2 ℃ or ± 2% larger (firing rate, distance, ambient temperature, etc.)
Temperature measurement response time	≤ 30ms
Visible light
Sensor type	1/2” Progressive Scan CMOS
Pixel	2mp
Signal system	PAL/ NTSC
Focal distance	6-222mm
Zoom	37x optical doubling, 16x digital doubling
Electronic shutter	1 / 5s- 1 / 20,000s
IR light distance	100 Meters
Noise- signal ratio	>55dB
Image output	Code Flow 1:50Hz: 50fps ( 1920x1080, 1280x720) 60Hz: 60fps ( 1920x1080, 1280 x720) Code Flow 2:50Hz: 25fps (D1 / VGA / 640x360 / CIF) 60Hz: 30fps (D1 / VGA / 640x360 / CIF) Code stream 3:50Hz: 25fps (VGA / CIF / QVGA) 60Hz: 30fps (VGA / CIF / QVGA)
Wide Dynamic	＞120dB
Code rate control	CBR/ VBR
Video compression standard	H. 265/H.264/MJPEG
Audio compression format	G7 1 1_ ALAW/ G711_ ULAW:8kbps;RAW_PCM:16kbps
PTZ
Rotation range	Horizontal: 360° continuous rotation; vertical: ± 90°
Rotation speed	Horizontal: 0. 1° -40° / s, vertical: 0. 1° -40° / s
Preset point	255
Preposition accuracy	±0. 1°
Automatic cruise	4 bars, each with 16 preset points that can be added
Double the speed limit	Support
Power memory	Support
Explosion- proof sign	Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db
Certificate number	CNEx19.2694X
Power supply	AC85V ~ 260V
Operating temperature and humidity	- 40℃ ~60℃ , humidity less than 90%RH (no condensation)
Levels of protection	IP68
Material	304 Stainless steel ( chemical, acid and alkali corrosive environment)
Integration features	ONVIF、GB28181、SDK
SDK develop	Linux C /windows C& C++
Outline hole specifications	1 G3 / 4 " outlet hole
Product weight	≤ 30kg

Use Environment

1. It is suitable for environments with Class IIA, IIB, and IIC combustible gases, and is rated for Zone 1 and Zone 2 with ignition temperature groups ranging from T1 to T6. These are areas where combustible gases or vapors can form explosive mixtures with air.

2. Additionally, it can be used in Zone 21 and Zone 22 areas with ignition temperature groups ranging from T1 to T6, as well as locations containing combustible dust mixtures.
