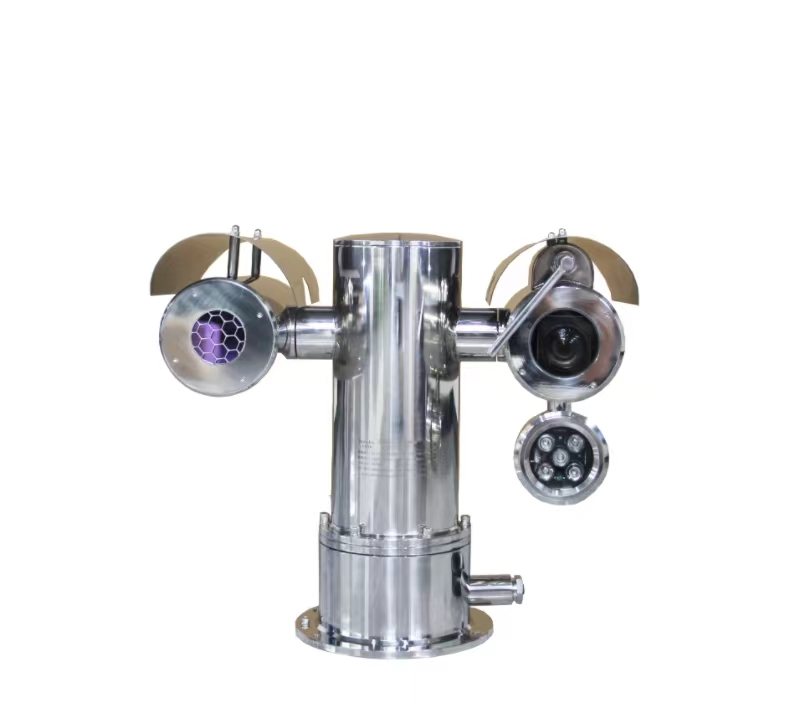

Explosion-proof Thermal Imaging Camera 35mm
JV-ETVC6135-2037 is an advanced surveillance device designed for hazardous environments where there is a risk of explosion due to the presence of flammable gases, vapors, or dust. This digital camera co-mbines thermal imaging and visible imaging abilities to supply comple-te monitoring and better safety.
Feature
➢Supports detection of people, vehicles, fire points and ship types
➢Visible light uses a 2 million pixel 1/2" CMOS image sensor, and supports 37x optical zoom, focal length: 6-222mm
➢Starlight level low illumination monitoring, minimum illumination: color 0.001Lux@(F1.5, AGC ON); 0lux infrared light on
Technical paramater
Product name | JV-ETVC6135-2037 | |
Thermal Imaging
| Detector type | Uncooled infrared focal plane sensor |
Material type | Vanadium oxide | |
Original pixels | 640(H) × 512(V) | |
Video resolution | 704(H) × 576(V) | |
Pixel spacing | 12 μm | |
Thermal Sensitivity (NETD) | ≤40mK | |
Response wave band | 8~14μm | |
Frame rate output | 25Hz | |
Lens type | Fixed focal length | |
Focus method | Manual focus | |
Focal length | 35mm | |
F value | F1.0 | |
Field of view | Horizontal:12° Vertical: 10° | |
Fire point detection distance (1m*1m) | 1458m | |
Humanoid detection distance (1.8*0.5m) | 1456m | |
Vehicle shape detection distance (4.0*1.5m) | 4472m | |
Humanoid recognition distance (1.8*0.5m) | 364m | |
Vehicle shape recognition distance (4.0*1.5m) | 1118m | |
Temperature measurement function | Point temperature measurement, line temperature measurement, area temperature measurement, full screen temperature measurement | |
Temperature measurement alarm | Over temperature alarm | |
Temperature measurement accuracy | ±2℃ or ±2% | |
Temperature measurement response time | ≤ 30ms | |
Temperature measurement range | -20°C ~ 150°C | |
Main stream | D1 @25/30fps | |
Substream | CIF @25/30fps | |
Visible light | Sensor type | 1/2” Progressive Scan CMOS |
Focal length | 6-222mm | |
Magnification | 37x optical zoom, 16x digital zoom | |
Minimum illumination | Color 0.001Lux@(F1.5, AGC ON); black and white 0.0001Lux@(F1.5, AGC ON); 0lux infrared light on | |
Infrared distance | ≥100 meters | |
Signal-to-noise ratio | >55dB | |
Wide dynamic range | >120dB | |
PTZ | Rotation range | Horizontal: 360° continuous rotation; vertical: ±90° |
Spinning speed | Horizontal: 0.1°- 40°/s, vertical: 0.1°- 40°/s | |
Preset | 255 | |
Preset position accuracy | ±0.1° | |
General specifications | Explosion-proof sign | Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db |
Certificate No | CNEx19.2694X | |
Power supply | AC100V ～ 240V/DC24V 3A(optional） | |
Working temperature | -40℃~60℃ | |
Protection level | IP68 | |
Shell material | 304 stainless steel | |
Integrated features | ONVIF, GB28181, SDK | |
Audio port | 1 in, 1 out (optional) | |
Alarm interface | 1 in, 1 out (optional) | |
Outlet hole specifications | 1 G3/4" cable outlet | |
Product weight | ≤30kg | |
Application
Oil and Gas Industry:Used in refineries, drilling rigs,and offshore systems to screen operations,notice wa-rmth anomalies,and make certain security in explosive environments.
Mining:Deployed in mines and processing flowers to beautify security,display activities,and perceive via-ble dangers in areas with explosive dust.
Pharmaceutical Manufacturing:Used in amenities dealing with unstable chemical compounds to make sure protected monitoring,realize temperature changes, and comply with security regulations.
