JV-LRF1508AD 10 KM Laser Rangefinder Module

10 KM 1535nm Laser Rangefinder Module | JV-LRF1508AD

Laser Rangefinders

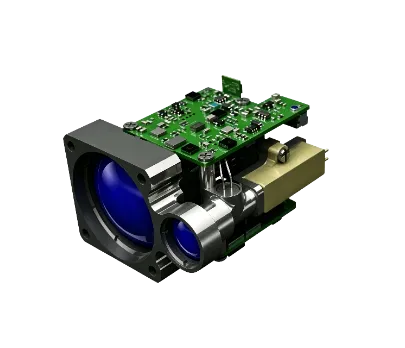

10 KM Laser Rangefinder Module

JV-LRF1508AD is a compact Class 1 eye-safe long-range laser ranging module. With excellent small-target detection, low power consumption and wide temperature tolerance, it can be embedded into various optoelectronic devices to deliver stable, accurate distance measurement in harsh outdoor scenarios.

OEM
ODM

Application Scenarios

Maritime Laser Ranging

Airport Laser Ranging

Mining Laser Ranging

10 KM Long-Range Precision Ranging & Small Target Detection

Equipped with a 1535 nm Class 1 eye-safe laser and high-performance ranging optics, the JV-LRF1508AD supports long-distance measurement up to 10 km under high-visibility conditions. With ±1 m ranging accuracy, dual-target detection and high valid measurement rate, it provides reliable distance data for maritime monitoring, aerial platforms, security systems and outdoor inspection applications.

Compact Integration & Reliable Outdoor Performance

Designed with a compact integrated structure, the JV-LRF1508AD features low power consumption, wide temperature adaptability and excellent optical noise suppression. Supporting RS422/TTL communication, the module can be easily embedded into handheld equipment, electro-optical systems, gimbals and other intelligent sensing devices for stable operation in demanding environments.

Core Specifications

Parameters	JV-LRF1508AD
Representative products
Eye Safety Class	Class 1
Laser Wavelength	1535 nm ±5 nm
Beam Divergence	≤0.45 mrad
Minimum Ranging Distance	≤20 m
Maximum Ranging Distance	≥10000 m (Building target, visibility ≥20km) / ≥8700 m (2.3 m×4.6 m target)/ ≥5500 m (0.5 m×1.7 m target)/ ≥3000 m (0.1 m×0.2 m target)
Ranging Accuracy	≤±1 m
Measurement Frequency	Single shot, 1 Hz~10 Hz
Multi-target Detection	Dual targets
Distance Resolution	≤20 m
Valid Measurement Rate	≥98%
Communication Interface	RS422 / TTL
Supply Voltage	DC 4.5 V~14 V
Standby Power	≤0.15 W @5 V
Average Power	≤0.6 W @5 V, 1 Hz
Peak Power	≤5 W @5 V
Weight	≤60 g

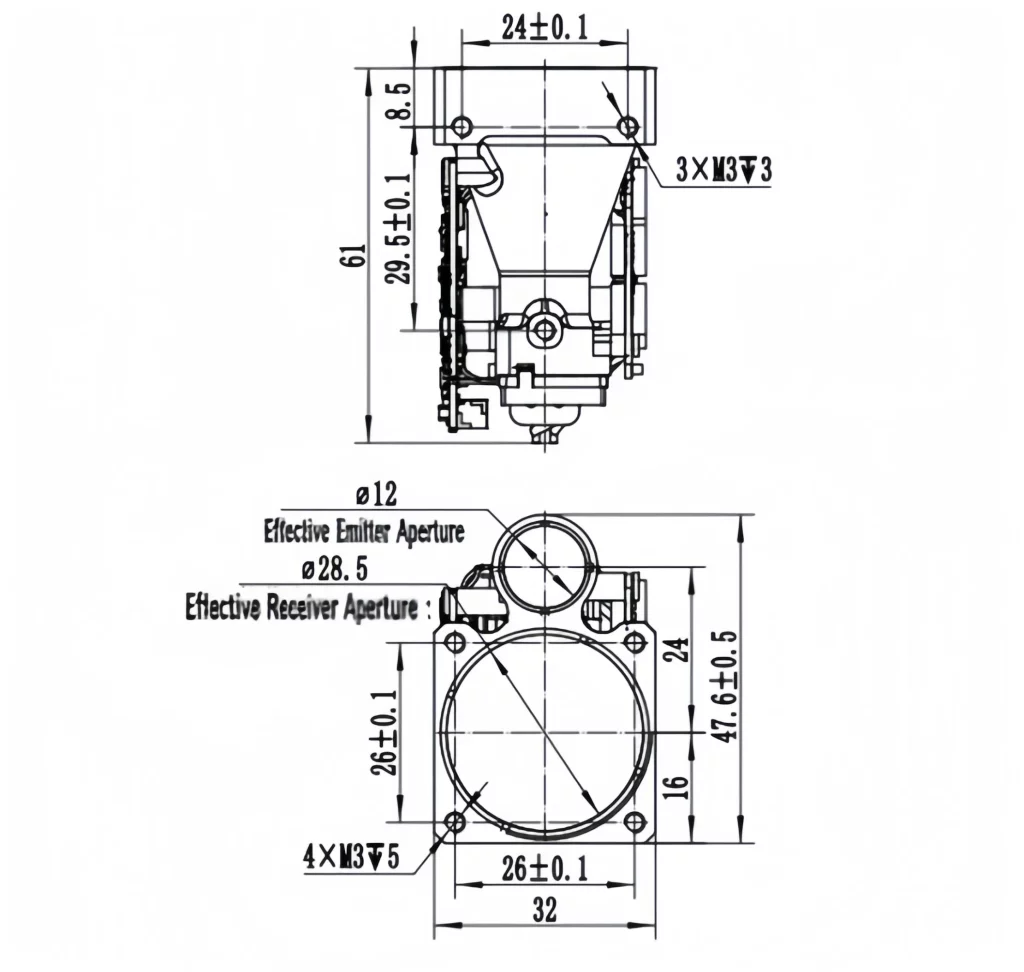

Dimension	≤61×32×48 mm (L×W×H)
Operating Temperature	-40℃ ~ +60℃
Storage Temperature	-45℃ ~ +75℃
