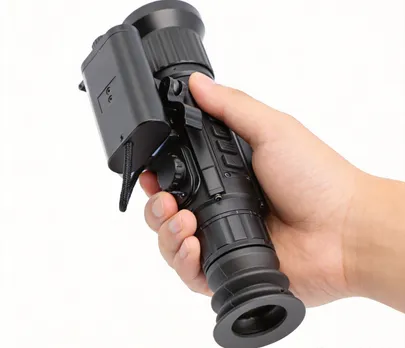

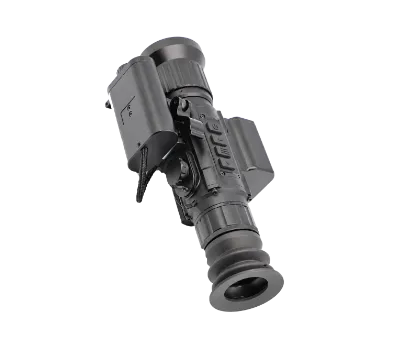

35mm Thermal Imaging Scope

Thermal Imaging Camera

35mm Thermal Imaging Scope

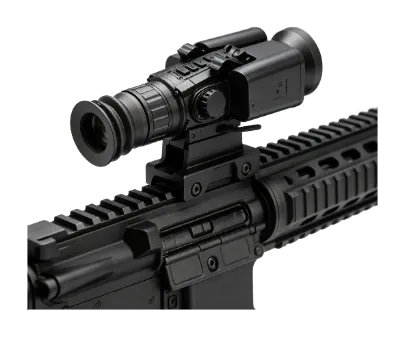

This product is a dedicated personnel reconnaissance target shooting night vision viewer. The product is equipped with an advanced 640 × 512 resolution detector. It delivers high-quality, high-resolution infrared images in total darkness, fog, haze, and smoke. It is suitable for night-time observation and target acquisition. Different adapters are available for different applications. The scope can be used with a variety of sighting and observation equipment. It can be mounted on compatible equipment and telescopic sights. It can also be used as a handheld device for night reconnaissance and target observation. The system features IP67-rated water and dust resistance. It is lightweight, shock-resistant, and resistant to interference. It is suitable for use in a wide range of weather conditions.

  • CE
  • FC
  • ISO
  • OEM
    ODM

Effect Display

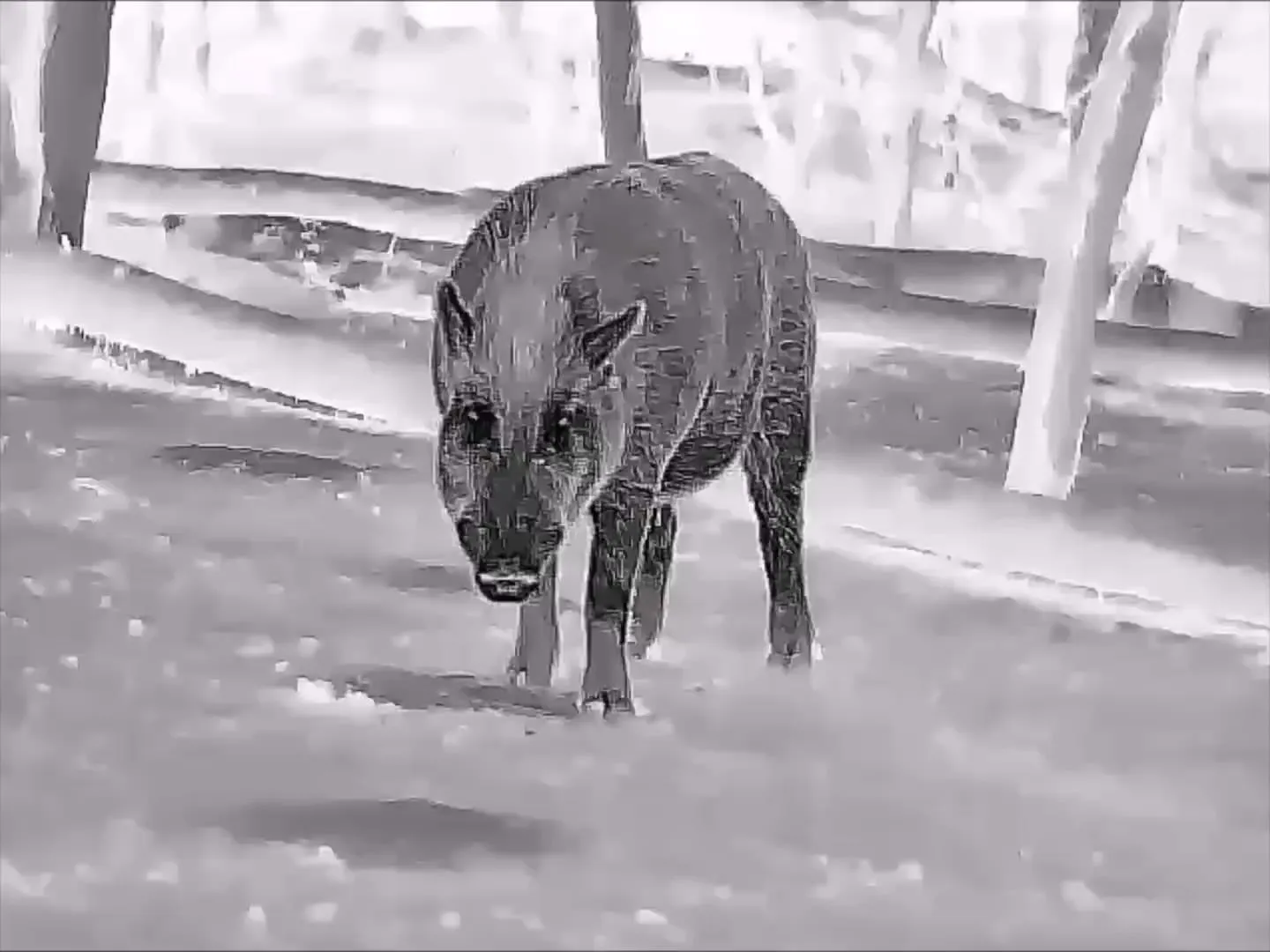

Infrared Thermal Imaging
Infrared Thermal Imaging
Infrared Thermal Imaging
01

High-Resolution Thermal Imaging Performance

Equipped with an uncooled infrared sensor with 640×512 resolution, 8-14μm spectral range and ≤30mK NETD, the thermal imaging scope provides clear and sensitive thermal images for reliable target observation.

02

Accurate Target Detection & Measurement

Featuring a 35mm focal length, digital 2X/4X/8X zoom and an 800m laser rangefinder, the thermal imaging scope enables precise target observation with a recognition distance of up to 1.5 km for animals.

Core Specifications

Parameter JV-TSR635
Representative products
Recognition distance 1.5km for animals
Detector Uncooled sensor Resolution 640×512
FOV 10.6°×8.0°
Spectral range 8-14μm
NETD ≤30mk
Frame rate 50Hz
Focal length 35mm
Zoom Digital zoom: 2X/4X/8X
Laser range finder 800m (±2m)
Weapon mount type Picatinny, MIL-STD 1913
Display 1024×768 OLED
Start up ≤3 seconds
Pitch angle Support
Slant angle Support
Compass Support
WIFI Support
Battery type CR123A
Operating time 6~8 hours continuous operation
Working temp. -40℃ ~ +60℃
Shock 1200G/1ms
