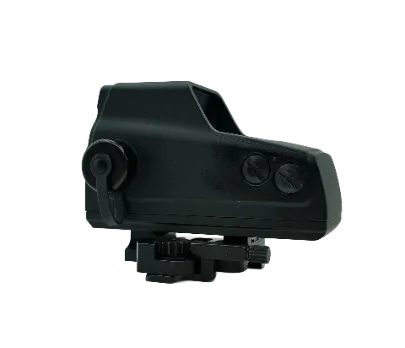

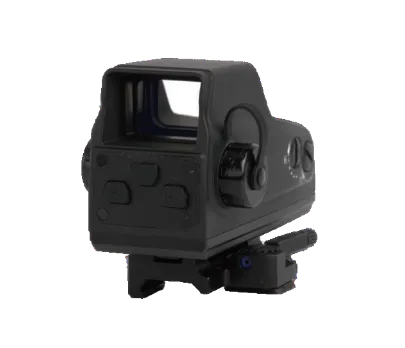

Holographic Sight
Red Dot Sights

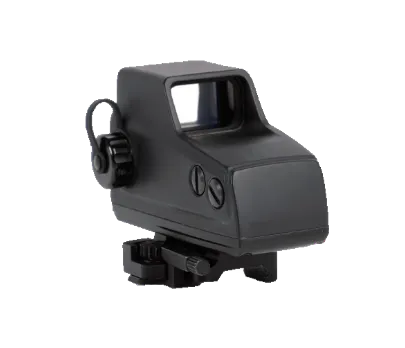

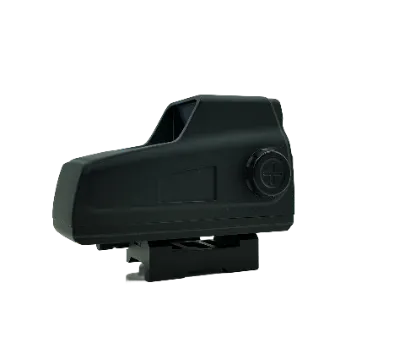

Holographic Sight
This holographic sight is purpose-built for fast, precise close-range target acquisition in both daytime and nighttime scenarios, effectively boosting rapid response capability for tactical use. It delivers a crisp, clear reticle to support quick firing, comes with dedicated daytime and night vision modes, and features a simple structure for intuitive operation. Compatible with various firearm types via interchangeable connectors, it also stands out for its compact size and lightweight profile.
-
-
-
-
OEM
ODM
Effect Display
Holographic Sight
Holographic Sight
01
Clear Holographic Reticle & Day/Night Modes
Featuring true 1× magnification and a ≥28×18mm optical window, the JV-HS-01 delivers a clear, unobstructed sight picture for rapid target acquisition. Adjustable reticle brightness and dedicated daytime/night-vision modes allow the aiming point to remain clearly visible under different lighting conditions.
02
Rugged Construction & Repeatable Zero
Built with a 6061-T6 aluminum housing, the sight withstands impacts up to 1500g and provides IP67 waterproof protection for demanding field environments. With a ±10 mil reticle adjustment range and ≤1 mil repeatable zero-position variation, it maintains stable and reliable aiming performance after repeated mounting and use.
Core Specifications
| Parameter | JV-HS-01 |
| Representative products |  |
| Magnification | 1× |
| Housing Material | Aluminum 6061-T6 |
| Weight | ≤300g (Including Mounting Base and Battery) |
| Parallax | ≤1.5′ |
| Reticle Brightness | Adjustable Brightness, Crystal Clear View |
| Optical Window | ≥28mm × 18mm |
| Impact | 1500g |
| Reticle Adjustment Range | ≥±10mil |
| Zero Position Variation | ≤1mil (Repeatable Clamping Accuracy) |
| Power Supply | AA batteries (1.2V–1.5V) |
| Continuous Working Time | ≥8h (Normal Temperature) |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -55℃ ~ +75℃ |
| Waterproof | IP67 |
| Size | 98mm × 39mm × 78mm |
