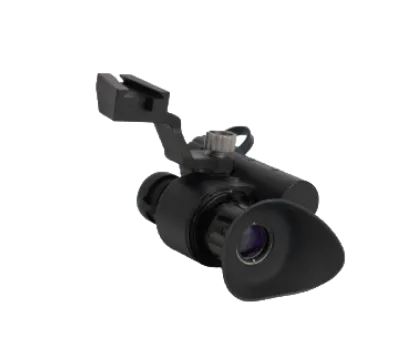

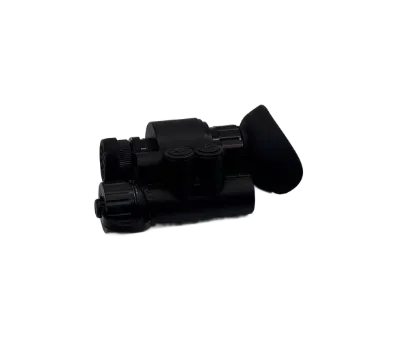

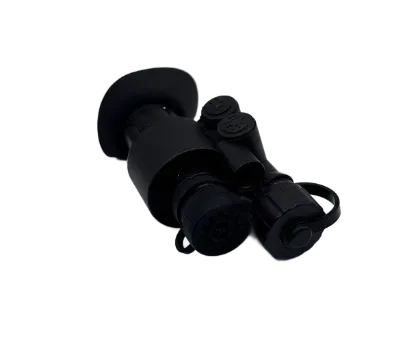

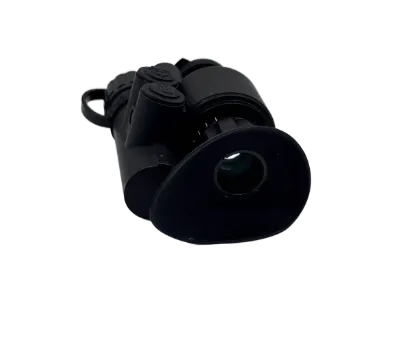

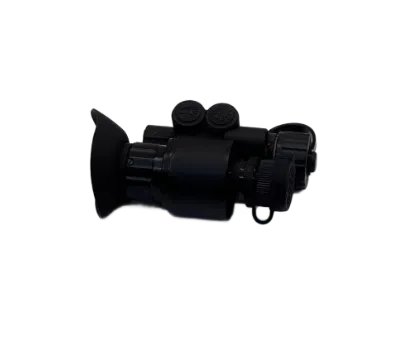

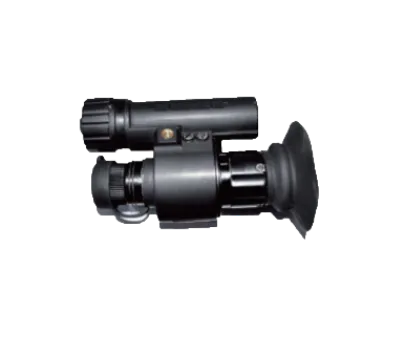

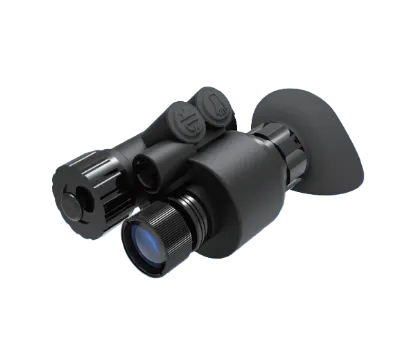

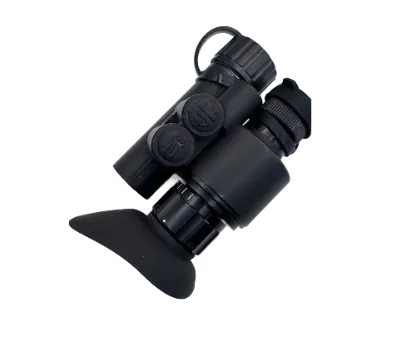

Low-Light Monocular Night Vision Goggles
This is head-mounted single-lens night vision goggles. assist users in observing and identifying targets at night or in low light environments. Mainly used in fields such as security, wilderness exploration, hunting etc. The head-mounted design completely frees up both hands. Combined with the single-eye imaging structure, it can simultaneously retain the naked-eye environmental perception ability of the other eye, balancing night vision observation and judgment of the surrounding environment, significantly enhancing the safety and operational efficiency of nighttime operations.
-
-
-
-
OEM
ODM
Effect Display
High-Resolution Low-Light Night Vision
Featuring an 800×600 sensor and 1024×768 display, the monocular night vision device supports infrared-assisted illumination and provides pedestrian recognition at ≥100m under no-moon conditions, with a focus range from 250mm to infinity.

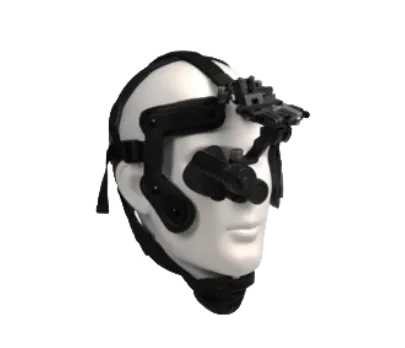

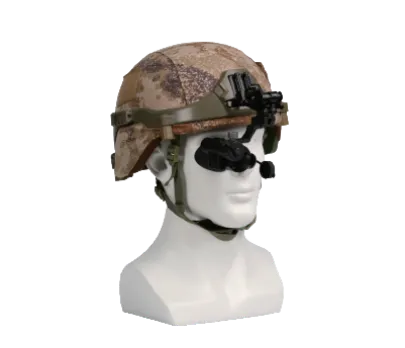

Ultra-Light Handheld & Helmet-Mounted Design
Weighing only 180g including the battery, the compact device supports both handheld and helmet-mounted use, 1X magnification with optional 3X/4X/5X configurations, ≥6 hours of continuous operation and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVD100 |
| Representative products | ![]() |
| Recognition distance | No moon, identify pedestrians ≥100m |
| Sensor resolution | 800×600 |
| Display resolution | 1024×768 |
| Magnification | 1X (3X/4X/5X Optional) |
| FOV | ≥25°×18° |
| Diopter | -5SD ~ +3SD |
| Continuous working time | ≥6h (Normal temperature) |
| Storage temperature | -55℃ ~ +70℃ |
| Working temperature | -40℃ ~ +55℃ |
| Power | 18650 or 18500 battery |
| Focus range | 250mm ~ ∞ |
| Waterproof | IP65 (IP67 Optional) |
| Weight | 180g (Including battery) |
| Size | 57mm × 87mm × 48mm |
