Built-in 4x Enhanced Noise Reduction Algorithm
Vehicle-Mounted Thermal Cameras

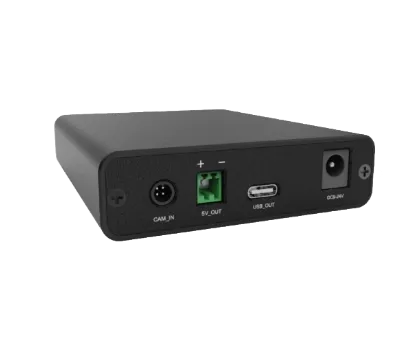

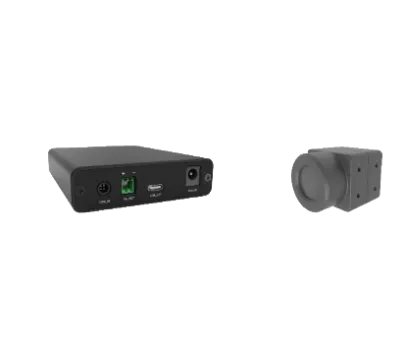

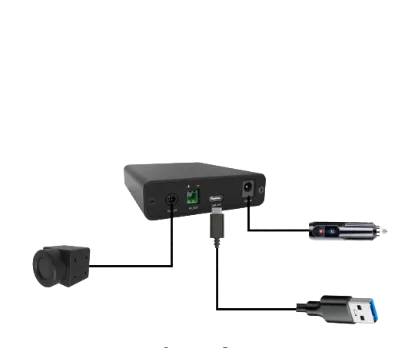

USB-OUT Automotive Thermal Imaging Unit
The Android-specific Automotive Thermal Imaging Night Vision System combines infrared thermal imaging with AI recognition to improve visibility in darkness, glare, fog, smoke, and haze. It supports long-range road detection, pedestrian and vehicle recognition, and visual and audible collision warnings. With APP settings, GPS support, an IP67-rated camera, and compatibility with passenger and commercial vehicles, it provides reliable driving assistance for nighttime and adverse weather conditions.
-
-
-
-
OEM
ODM

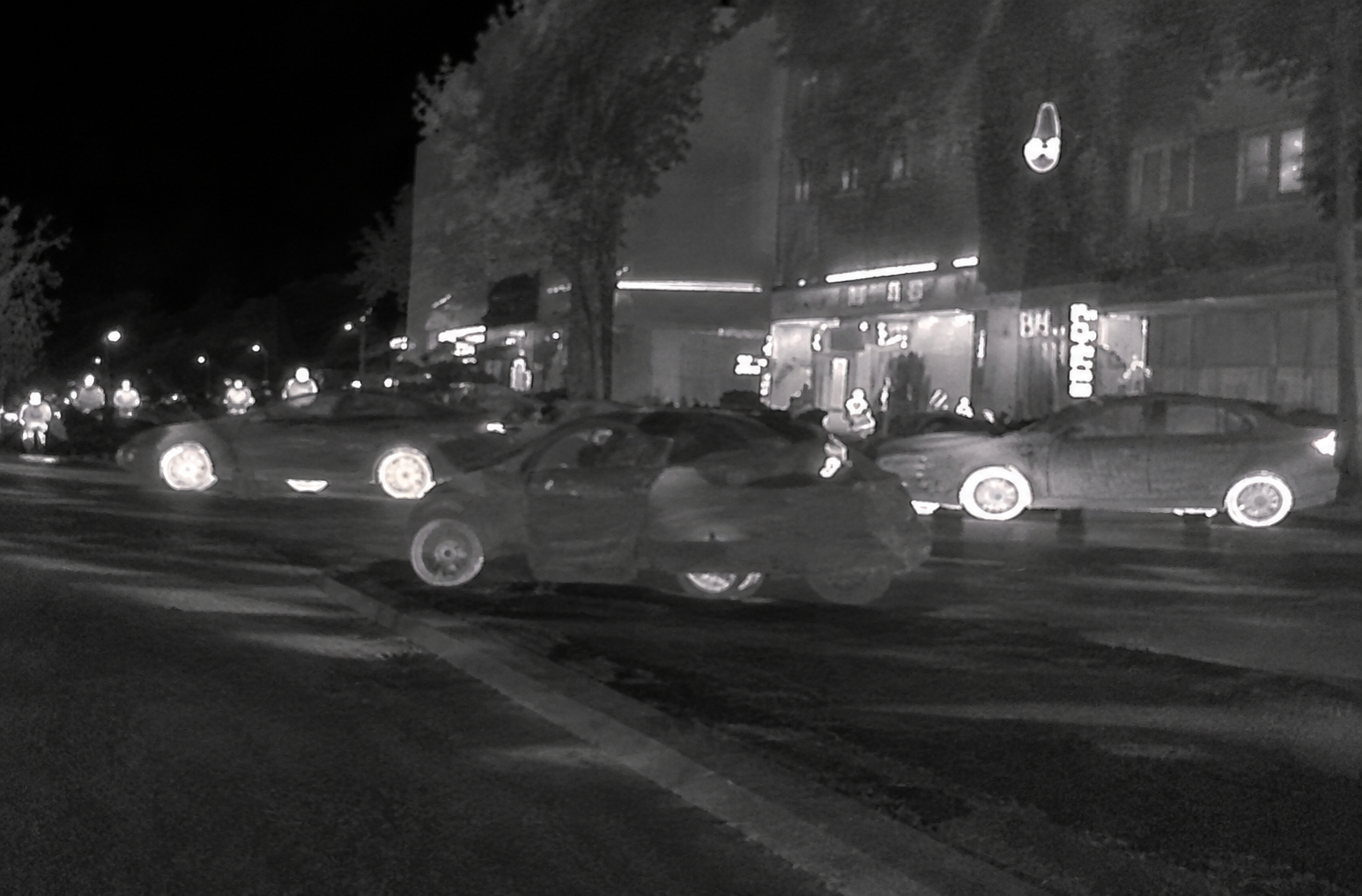

Effect Display

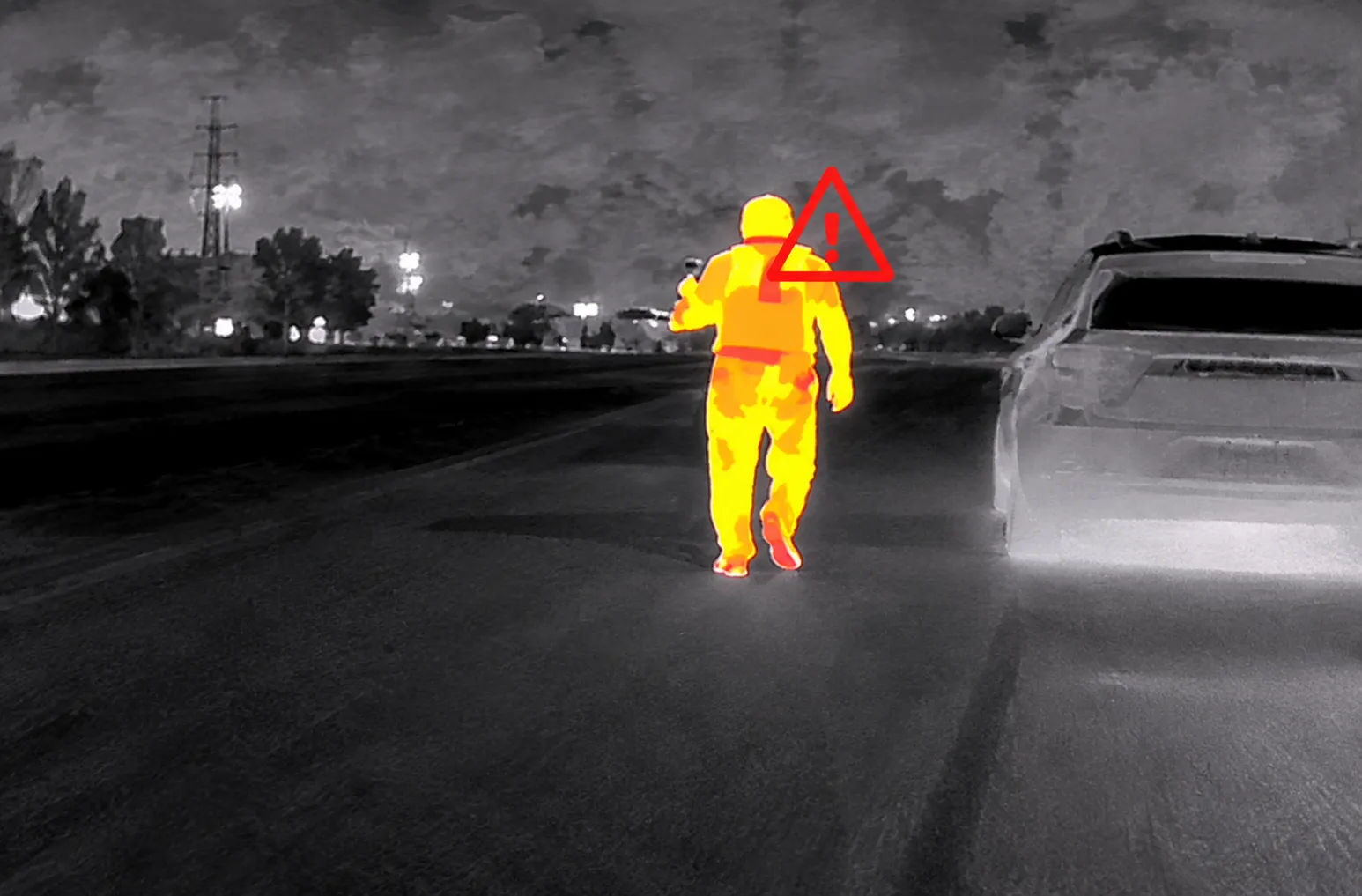

Supports pedestrian pseudo-color rendering fill

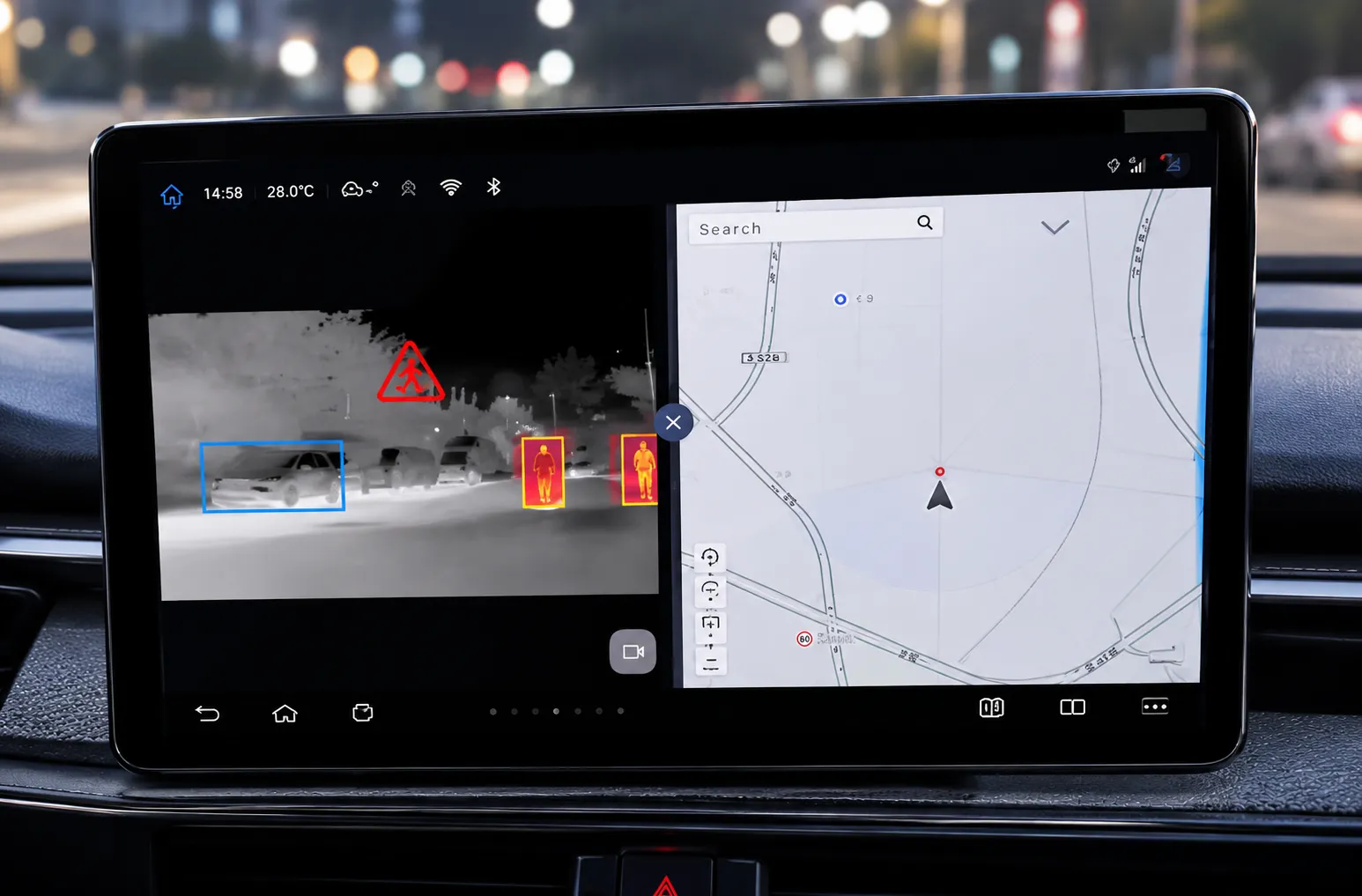

Supports split screen display
01
Long-Range Thermal Imaging & AI Detection
Equipped with a 256×192 VOx thermal imaging sensor and 10mm lens, the system provides clear long-range observation in complete darkness. It supports AI-based detection of pedestrians, vehicles and distance information, with real-time recognition at ≥21 FPS and an identification rate of ≥95%, helping drivers detect potential hazards earlier at night.
02
All-Weather Driving Assistance & Intelligent Warning
Designed for nighttime and adverse-weather driving, the thermal imaging system is resistant to glare and can maintain imaging performance through fog, smoke and haze. Three-level visual and audible warnings provide early alerts for hazardous situations, while the compact IP67 camera, DC 9-36 V wide-voltage input and automatic startup design simplify integration across passenger and commercial vehicles.
Core Specifications
| Parameter | Specification |
| Model | A2(256) / A3(384) / A6(640) |
| Product Name | Automotive Thermal Imaging NVS for Android |
| Product Image |  |
| Thermal Imaging Camera Parameters | |
| Thermal Sensor | |
| Sensor Type | VOX |
| Working Band | 8–14 μm |
| NETD | 40 mK @25°C, F#1.0 |
| Resolution | 256×192 / 384×288 / 640×512 |
| Pixel Size | 12 μm |
| Lens | |
| Focal Length | 9.1 mm |
| Focus Mode | Thermal-free fixed focus lens |
| FOV | 18°×13° (256) / 29°×22° (384) / 48°×39° (640) |
| Detection Distance (H/V) | 859 m / 1263 m |
| Recognition Distance (H/V) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) / 50 Hz (384/640) |
| Image Algorithm | Detail enhancement, automatic shutter correction |
| Video Output | UVC / White Hot |

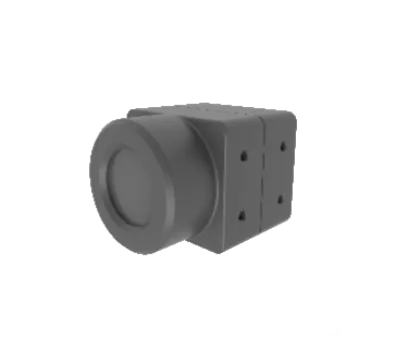

| Camera General Specifications | |
| Lens Cap | High-strength protective window |
| Defrost | Supports (starts below 2°C and stops above 7°C) |
| Power | 1 W (Heating off) / 3 W (Heating on) |
| Working Temperature | -30°C to +70°C |
| Protection Level | Aluminum alloy shell sealing IP67 |
| Size (L × W × H) | 40 × 30 × 26 mm (256) / 42 × 60 × 42 mm (384/640) |
| Weight | 60 g (256) / 185 g (384) |
| System Performance | |
| System | Linux |
| Voltage | DC 9-36 V |
| NPU | 3 TOPS |
| Power | 5 W |
| Identify Type | Human / Vehicle / Distance |
| Identification Rate | ≥95% |
| Real-Time Processing | ≥21 FPS |
| AI Recognition Distance | Human: 80 m; Vehicle: 200 m |
| Interface | |
| Input Interface | 4P BMW head interface |
| Video Output | USB (Type-C interface, without voltage output) |
| Parameter Settings | APP method |
| Warning | Car horn alarm |
| APP | |
| System Version | Android 6–14 |
| Language | Chinese, English, Russian |
| Operation | Automatically initiate background alerts, customize alert speed, etc. |
| ECU General Specifications | |
| Working Temperature | -30°C to +70°C |
| Power Supply Method | Cigar lighter |
| Size (L × W × H) | 98 × 81 × 22 mm |
| Weight | About 140 g |
