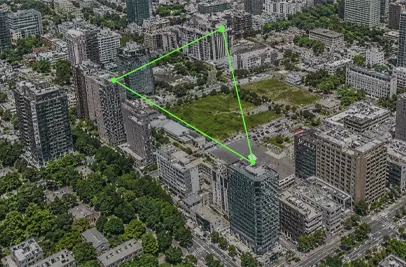

Multi-Target Ranging & Positioning
Laser Rangefinders

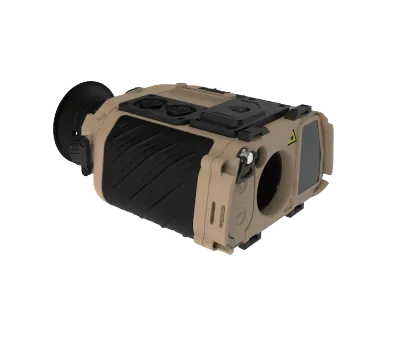

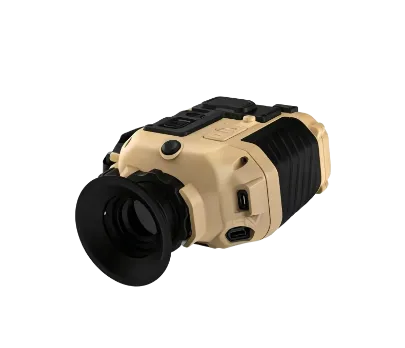

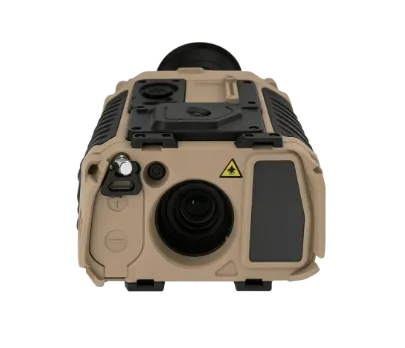

10 KM Laser Rangefinder
The JV-LRFM10 is an intelligent laser rangefinder target locator combining 8× medium-magnification direct-view optics with 10 km long-range laser ranging. It features high-precision single, continuous and multi-target relative ranging, self-positioning and target positioning, with zero-latency optical viewing available without power, applicable to reconnaissance surveying, impact point correction and sniping measurement.
-
-
-
-
OEM
ODM
Application Scenarios
Reconnaissance & Target Ranging
Impact Point Observation & Correction
01
10 KM Long-Range Precision Ranging
Equipped with a 1535 nm Class 1 laser, the JV-LRFM10 supports long-range measurement of large targets at ≥10 km and vehicle targets at ≥7 km. With ±1 m ranging accuracy, 1–10 Hz measurement frequency and ≤0.5 mrad beam divergence, it delivers fast and reliable distance measurement for long-range observation and field surveying.
02
8× Direct-View Optics & Dual Positioning
Featuring 8× direct-view optics, a 33 mm objective aperture and 6° field of view, the system provides clear observation without relying on electronic display power. Integrated self-positioning and target-positioning functions achieve ≤3 m self-positioning accuracy and ≤20 m target-positioning accuracy, while high-precision azimuth, pitch and roll measurement support accurate spatial orientation in complex environments.
Core Specifications
| Parameters | JV-LRFM10 |
| Representative products |  |
| Optical Magnification | 8× |
| Field of View | 6° |
| Objective Aperture | 33 mm |
| Diopter Range | -5 SD ~ +5 SD |
| Laser Wavelength | 1535 nm |
| Eye Safety Class | Class 1 |
| Beam Divergence | ≤0.5 mrad |
| Max. Ranging (Large Target) | ≥10 km |
| Max. Ranging (Vehicle Target) | ≥7 km |
| Minimum Ranging | 50 m |
| Ranging Accuracy | ±1 m |
| Measurement Frequency | 1 Hz–10 Hz |
| Azimuth Accuracy | ≤0.3° (5 Mil) |
| Pitch & Roll Accuracy | ≤0.1° (2 Mil) |
| Self-positioning Accuracy | ≤±3 m |
| Target Positioning Accuracy | ≤20 m |
| Protection Grade | IP67 |
| Operating Temperature | -40℃ ~ +60℃ |
