5-Mode Thermal Imaging Binoculars

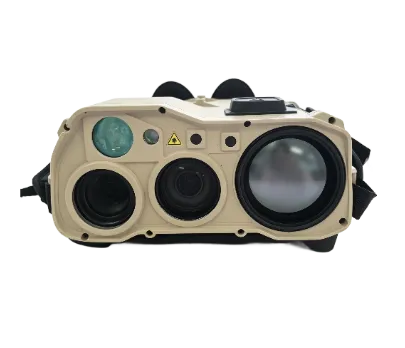

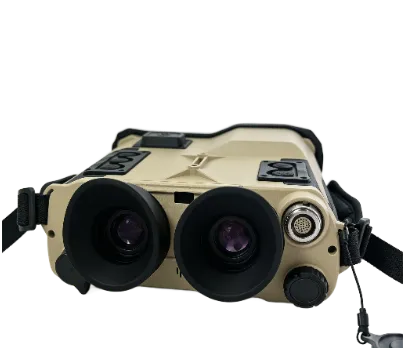

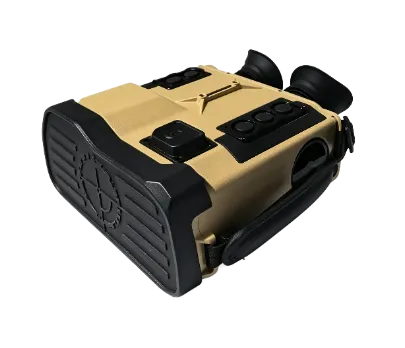

640×512 5-Mode Thermal Imaging Binoculars with 9km Laser Rangefinder

Thermal Imaging Camera

This product can be used for forward close-in battlefield observation at night or under adverse weather conditions to identify enemy situations and terrain, and help improve target observation and shooting effectiveness.Integrating an infrared thermal imager, low-light camera, visible light camera, laser rangefinder, satellite positioning module, electronic compass, video recording & storage unit and Wi-Fi transmission function, this equipment enables individual soldiers to conduct long-range day-and-night reconnaissance.

OEM
ODM

Effect Display

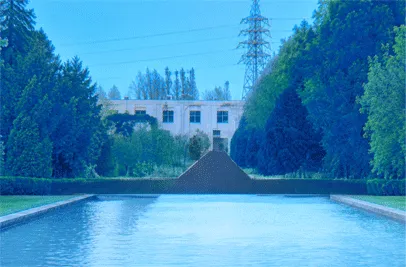

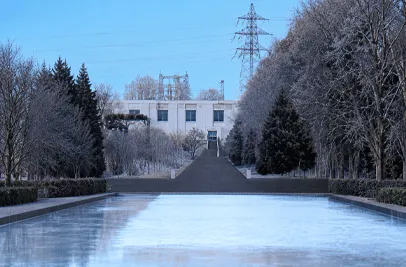

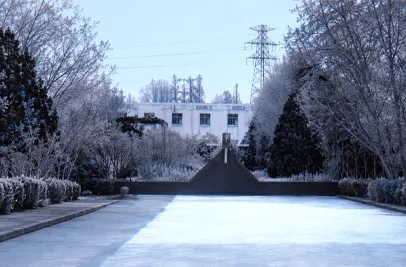

Infrared Thermal Imaging

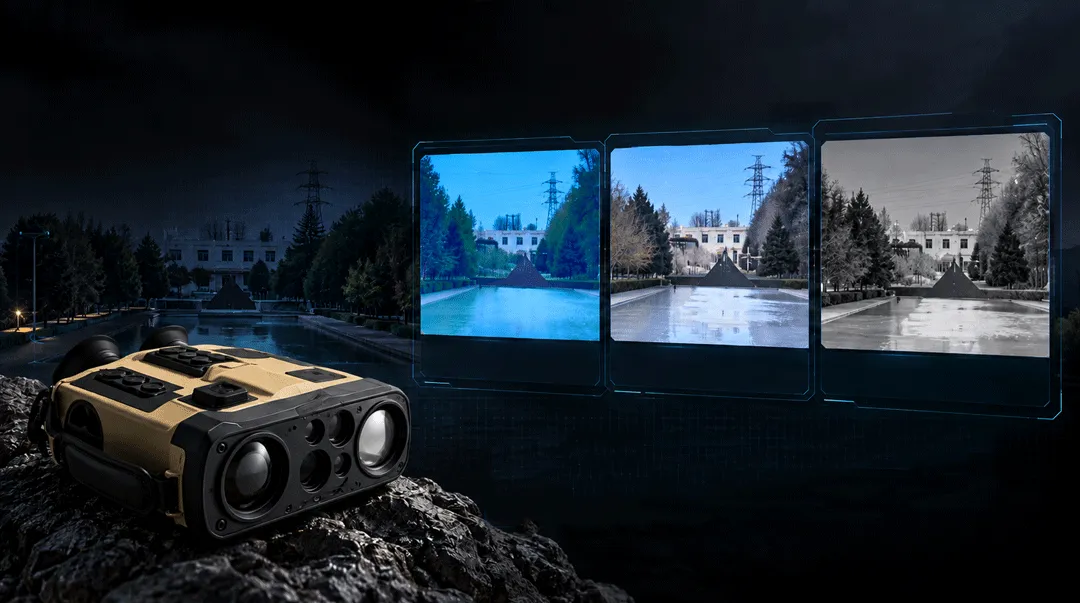

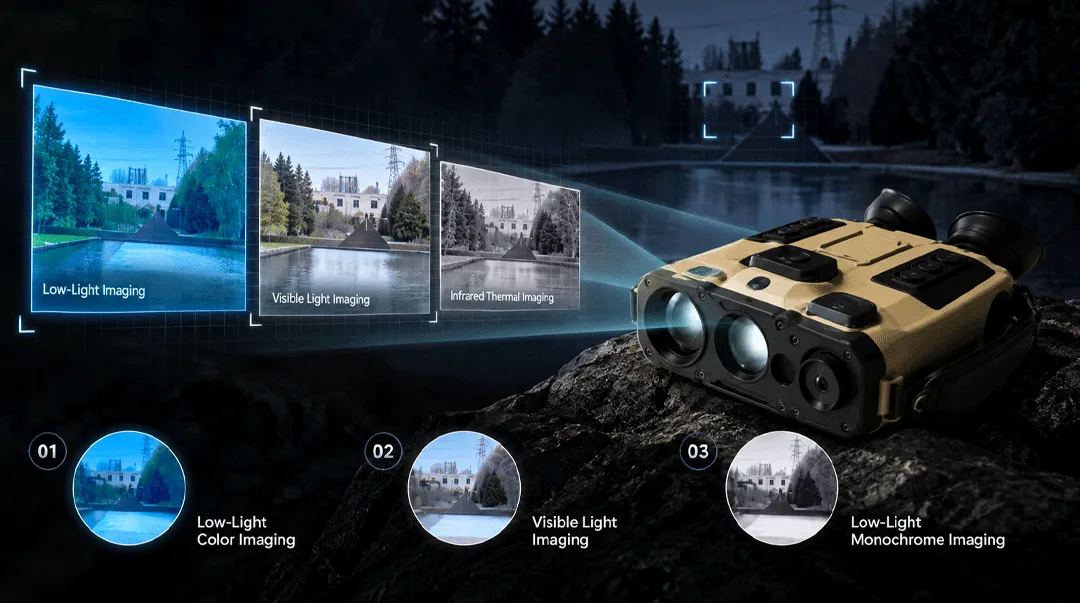

Multi-Sensor All-Weather Imaging & Fusion

Combining 640×512 infrared thermal imaging, low-light imaging and 3264×2448 visible-light imaging, the binocular system supports infrared and low-light image fusion for reliable target search, identification and observation in day, night and adverse weather conditions.

Long-Range Ranging & Target Positioning

Equipped with a 1535nm laser rangefinder with a range of up to 9km, 1X–4X electronic zoom and external Wi-Fi connectivity, the system supports long-range target observation, ranging and transmission of images and data for field reconnaissance.

Core Specifications

Parameter	Specification
Representative products
Device type	Uncool-ed MCT
Infrared Resolution	640×512
Spectral Band	8～14μm
Detector Pitch	12μm
NETD	<25mK
E-Zoom	1×～4×
IR Lens	f=70mm
F#	1.2
Field of view	6.21°×5.03°
Sensor	Colour CMOS
Effective pixels	800×600
Low Light Field of view	7.32°×5.5°
Visible Light Resolution	3264×2448
Focus method	Electric (manual, automatic) focusing
Laser Wave Length	1535nm
Range Distance	9km
Weight	≤2.2kg
Dimension (mm)	220×230×130mm (L×W×H)
Operating Temperature	-40℃～+60℃
