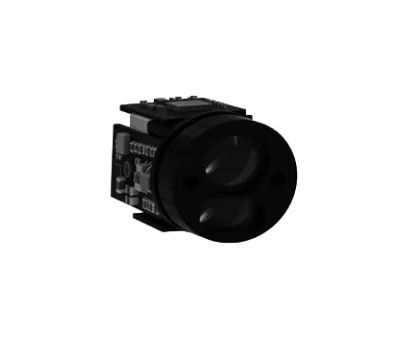

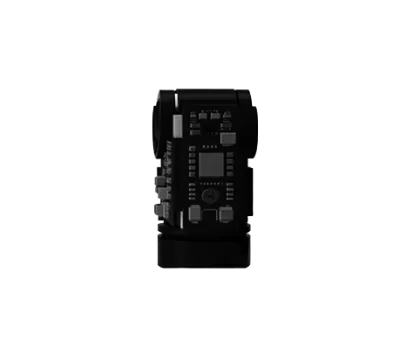

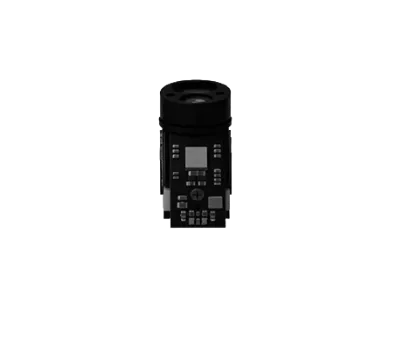

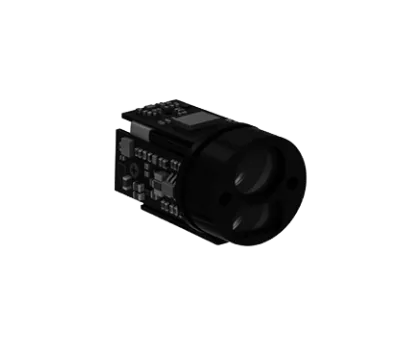

2 KM Laser Rangefinder Module
JV-LRF902CD is an ultra-compact Class 1 eye-safe laser rangefinder module for all-day long-distance detection. It delivers stable high-precision ranging day and night, with low power consumption and standard TTL UART port. It fits night vision devices, surveillance PTZs, UAV pods and inspection robots for wildlife monitoring, border security and industrial measurement.
-
-
-
-
OEM
ODM
Application Scenarios
Forest Fire Monitoring
Border Surveillance & Ranging
01
Day & Night Long-Range Precision Ranging
Equipped with a 905±5 nm Class 1 eye-safe laser, the JV-LRF902CD delivers stable long-range measurement in both daytime and nighttime conditions. It supports building-target ranging ≥1200 m by day and ≥2000 m at night, with ≥800 m ranging for 0.5×1.7 m small targets, providing reliable distance data for outdoor observation and monitoring applications.
02
Ultra-Compact Integration & High Measurement Reliability
Designed for embedded optical systems, the module combines compact construction, low power consumption and a standard 3.3 V TTL UART communication interface. With a valid measurement rate of ≥99%, distance resolution of ≤0.1 m, startup response within ≤100 ms and adaptive 1–10 Hz measurement frequency, it is suitable for integration into night vision devices, surveillance PTZs, UAV payloads and inspection platforms.
Core Specifications
| Parameters | JV-LRF902CD |
| Representative products |  |
| Eye Safety Class | Class 1 |
| Laser Wavelength | 905 nm ± 5 nm |
| Beam Divergence | <6 mrad |
| Receiver Aperture | Φ7 mm |
| Max. Ranging (Visibility ≥10 km, Building Target Day) |
≥1200 m
|
| Max. Ranging (Visibility ≥10 km, Building Target Night) |
≥2000 m
|
| Max. Ranging (0.5 m × 1.7 m Small Target) |
≥800 m
|
| Minimum Ranging | 0.1 m |
| Ranging Accuracy | ≤±0.3 m (≤50 m); ≤±0.5 m (50 m < L ≤100 m); ≤±1 m (L >100 m) |
| Distance Resolution | ≤0.1 m |
| Valid Measurement Rate | ≥99% |
| Measurement Frequency | Single shot, 1 Hz–10 Hz |
| Startup Response Time | ≤100 ms |
| Communication Interface | UART (TTL 3.3 V) |
| Supply Voltage | DC 3.3 V–5 V |
| Standby Power | ≤0.3 W @3.3 V (POWER_EN High) |
| Average Power | ≤0.6 W @3.3 V @1 Hz |
| Peak Power | ≤1.35 W @3.3 V |
