800×600 Headset Night Vision Monocular | JV-NVD102

Night Vision Goggles

Helmet Night Vision Monocular

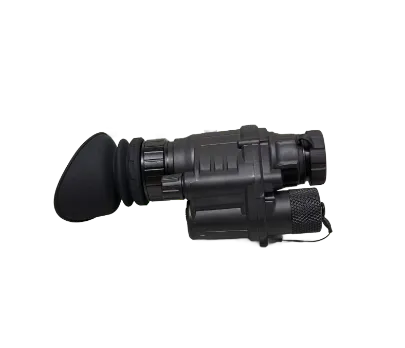

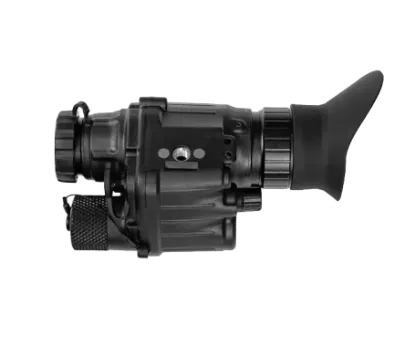

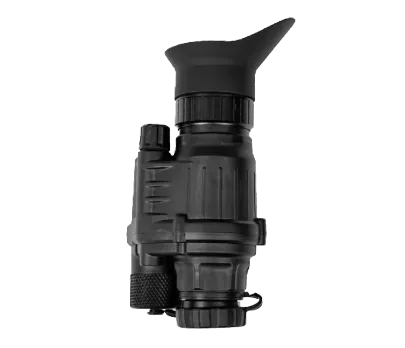

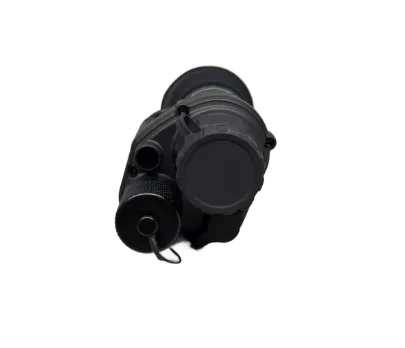

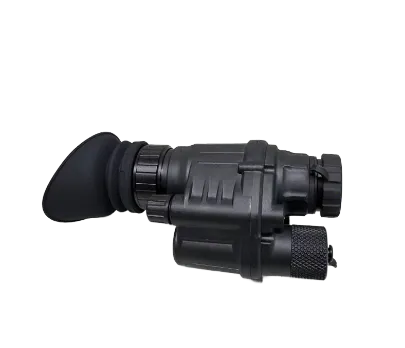

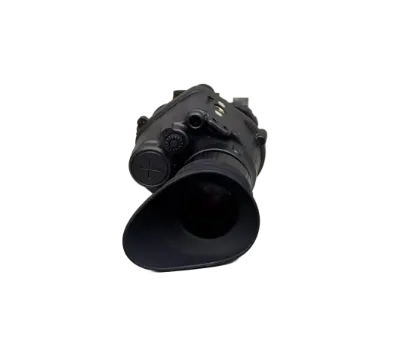

This is a head-mounted single-lens night vision device. It uses the latest ultra-large target area night vision infrared elements, combined with the independently developed AI noise-reduction & enhancement algorithm, to achieve high-definition imaging at long distances in complete darkness without supplementary light. It features day-and-night dual-use capability, no ghosting, resistance to strong light, and high portability. The device is designed to be lightweight and is compatible with head-worn use, ensuring stable and long-term operation in challenging environments.

  • CE
  • FC
  • ISO
  • OEM
    ODM

Effect Display

White Phosphor Night Vision
White Phosphor Night Vision
Green Phosphor Night Vision
01

Ultra-Low-Light Full-Color Night Vision

Featuring minimum illumination down to 0.0001lux without fill light, 800×600 resolution, F1.0 aperture and an AI-powered denoising algorithm, the monocular delivers clear night vision imaging with adjustable 30/60fps frame rates and ultra-wide dynamic range.

02

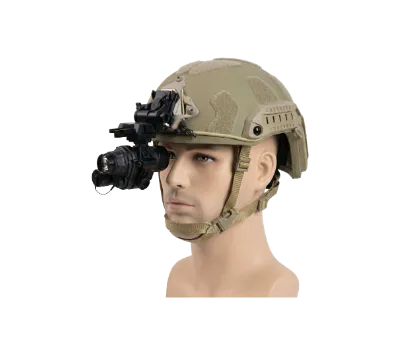

Long-Range Head-Mounted Observation

With a 22mm objective lens, up to 1km observation distance and an 850nm infrared illuminator with a 10m effective fill-light range, the 253g night vision monocular supports head-mounted use, IP65 protection with IP67 optional and extended operation with an 18650 lithium battery.

Core Specifications

Parameter JV-NVD102
Representative products
Minimum Illumination Night vision minimum 0.0001 Lux (without fill light)
Resolution 800×600
Video Frame Rate 30/60 fps, adjustable
Distance 1KM
Objective Aperture F1.0
Objective Focal Length 22mm
Field of View 44°×38°×22°
Diopter -6D ~ +4D
Eye Relief 35mm
Exit Pupil Diameter 6mm
IR Illuminator 850nm wavelength, 10m effective fill light range
Waterproof IP65 (IP67 Optional)
Working temperature -20℃ ~ +55℃
Power 18650 lithium battery
Weight 253g (battery excluded)
