Vehicle-Mounted Thermal Cameras
JV-ADS-S7 Thermal Imaging Night Vision

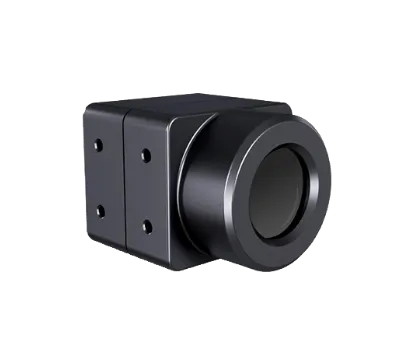

The JV-ADS-S7 Automotive Thermal Imaging Night Vision System combines far-infrared thermal imaging with AI pedestrian and vehicle recognition to assist driving in darkness and reduced visibility. Its standalone IPS display integrates a 3 TOPS AI processor and a built-in warning speaker, providing three levels of visual and audible pedestrian alerts. Available with 256 × 192, 384 × 288, or 640 × 512 thermal resolution, the system features an IP67-rated camera with automatic camera window defrosting. Cigarette lighter power and included mounting accessories simplify installation across passenger cars, RVs, commercial vehicles, and construction machinery.
-
-
-
-
OEM
ODM

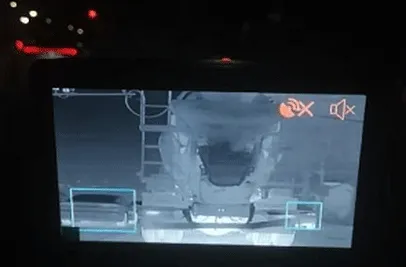

Effect Display

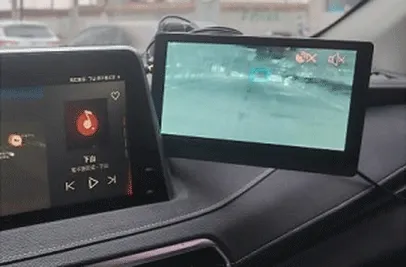

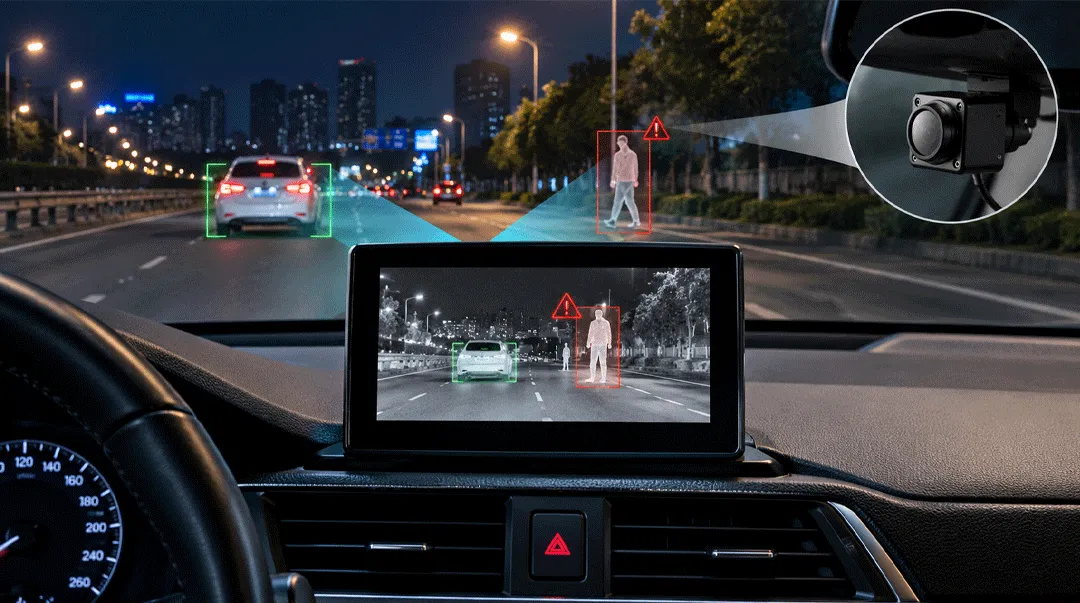

In-Vehicle Host Installation

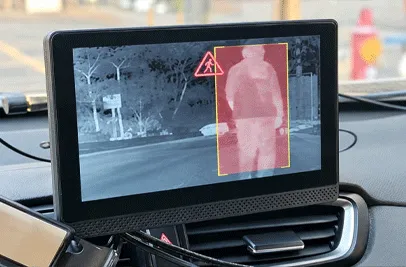

Pedestrian Detection & Warning
01
AI Thermal Imaging Night Vision for Safer Driving
Equipped with a VOX thermal sensor and AI recognition algorithm, JV-ADS-S7 provides real-time thermal imaging for detecting pedestrians and vehicles in darkness, strong light, fog and haze. With a dedicated thermal imaging display, it helps enhance night-time driving awareness and provide early warning of potential hazards.
02
3 TOPS AI Recognition & Intelligent Early Warning
Powered by a 3 TOPS NPU, JV-ADS-S7 supports intelligent recognition of pedestrians and vehicles, with human recognition up to 80m and vehicle recognition up to 200m. Its built-in speaker provides multi-level warning alerts based on pedestrian distance, helping drivers respond to potential hazards earlier.
Core Specifications
| Parameter | Specification |
| Model | JV-ADS-S7-2(256) / JV-ADS-S7-3(384) / JV-ADS-S7-6(640) |
| Product Name | JV-ADS-S7Automotive Thermal Imaging Night Vision System |

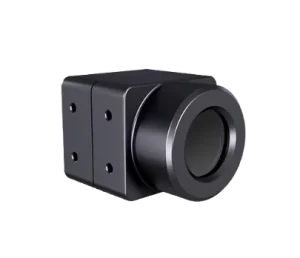

| Representative products |  |
| Thermal Sensor | |
| Sensor Type | VOX |
| Working Band | 8–14 μm |
| NETD | 40 mK @25℃, F#1.0 |
| Resolution | 256×192 / 384×288 / 640×512 |
| Pixel Size | 12 μm |
| Lens | |
| Focal Length | 9.1mm |
| FOV | 18°×13° (256) / 29°×22° (384) / 48°×39° (640) |
| Detection Distance (H/V) | 859 m / 126m |
| Recognition Distance (H/V) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) / 50 Hz (384/640) |
| Image Mode | White Hot Mode，Detail enhancement, automatic shutter correction |
| Other | |
| Lens Protection | High-strength protective window |
| Window Defrosting | Supports (starts below 2℃ and stops above 7℃) |
| Power | 1 W (Heating off) / 3 W (Heating on) |
| Working TEMP | -30℃ ~ +70℃ |
| Protection Level | Aluminum alloy housing, IP67 protection |
| Size | L 40×W 30×H 26 mm (256) / L 42×W 60×H 42 mm (384/640) |
| Weight | 60g (256) / 185g (384/640) |
| Parameter | Specification |
| Model | JV-ADS-S7-2(256) / JV-ADS-S7-3(384)/ JV-ADS-S7-6(640) |
| Product Name | JV-ADS-S7 Automotive Thermal Imaging Night Vision System |
| Representative products |  |

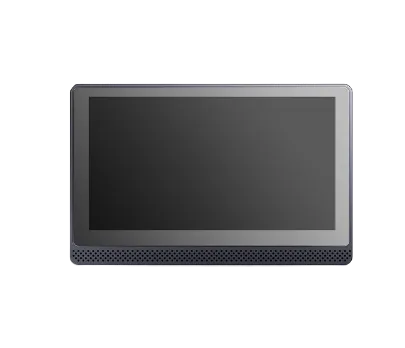

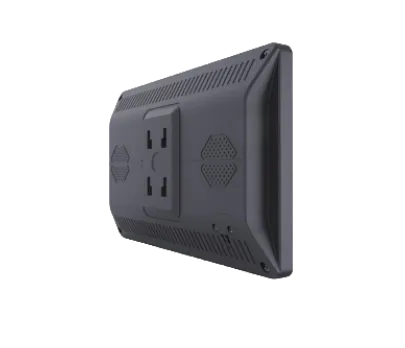

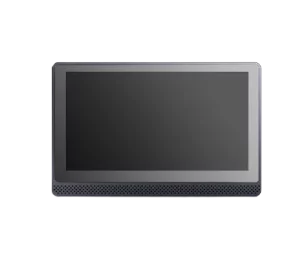

| Display Screen | |
| Size | 7 inches |
| Resolution | 1024×600 IPS high-definition screen |
| Thermal Imaging Night Vision | |
| Startup Mode | Auto-start upon startup |
| System | Linux |
| NPU | 3 TOP |
| Identify Type | Person (including pedestrians, bicycles, electric vehicles, motorcycles, etc.); Vehicles (common motor vehicles, engineering vehicles, etc.) |
| Early Warning Function | The alarm can be linked to the speed of the vehicle according to the distance from pedestrians |
| Identification Rate | ≥95% |
| AI Recognition | Human (80 m); Vehicle (200 m) |
| GPS | X |
| Alarm Method | Built-in speaker alarm |
| Other | |
| Voltage | 9–24 V |
| Power | 5 W |
| Working TEMP | -30℃ ~ +65℃ |
| Size | L 180×W 30×H 117 mm |
| Weight | 300 g |
