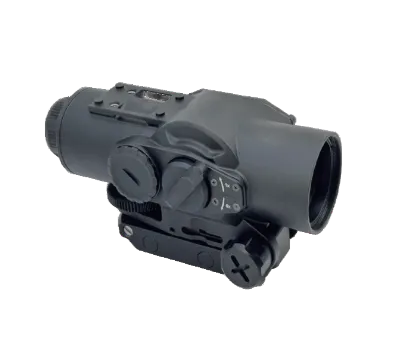

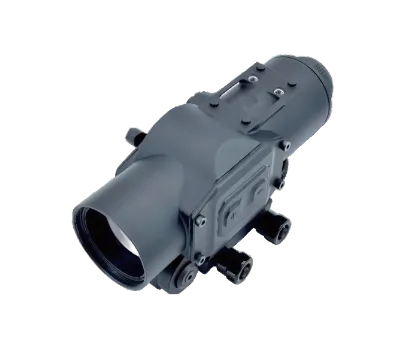

Zoom Sight
This variable magnification sight serves both close and mid-range shooting requirements, assisting users in target observation and precise aiming across varied distance environments. It delivers sharp, consistent clarity throughout the zoom range, supports flexible and fast magnification switching, and adapts seamlessly to diverse operational scenarios.
-
-
-
-
OEM
ODM
Effect Display
Illuminated Reticle
01

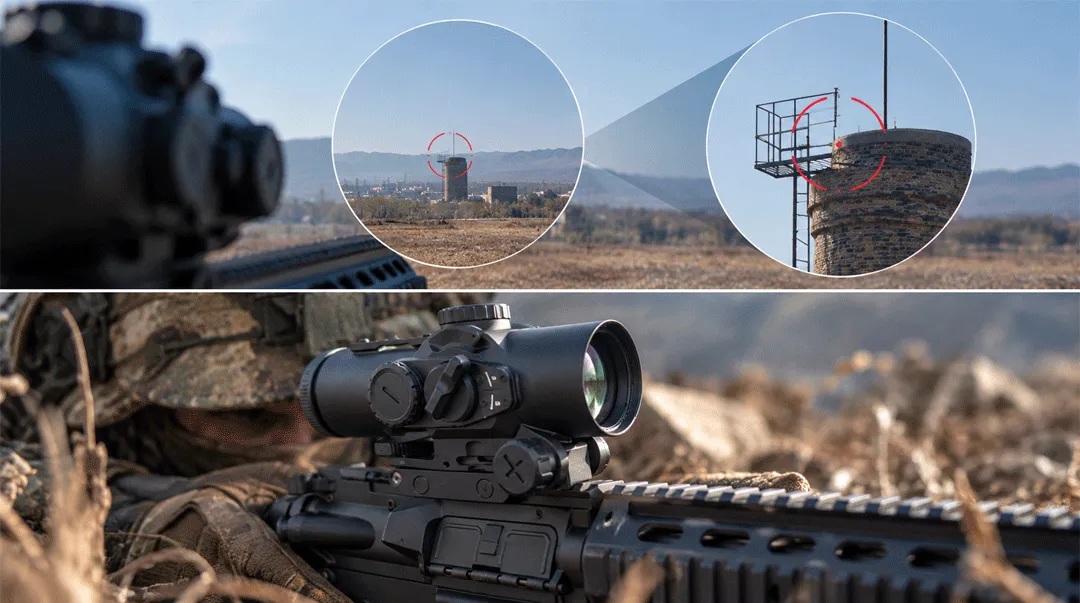

Fast 1× / 6× Magnification Switching
Designed for flexible observation at different distances, the JV-ZS-01 supports rapid switching between 1× and 6× magnification. It provides a wide 21° field of view at 1× for fast target acquisition and a focused 3.5° field of view at 6× for enhanced detail, delivering clear and consistent optical performance across the zoom range.
02

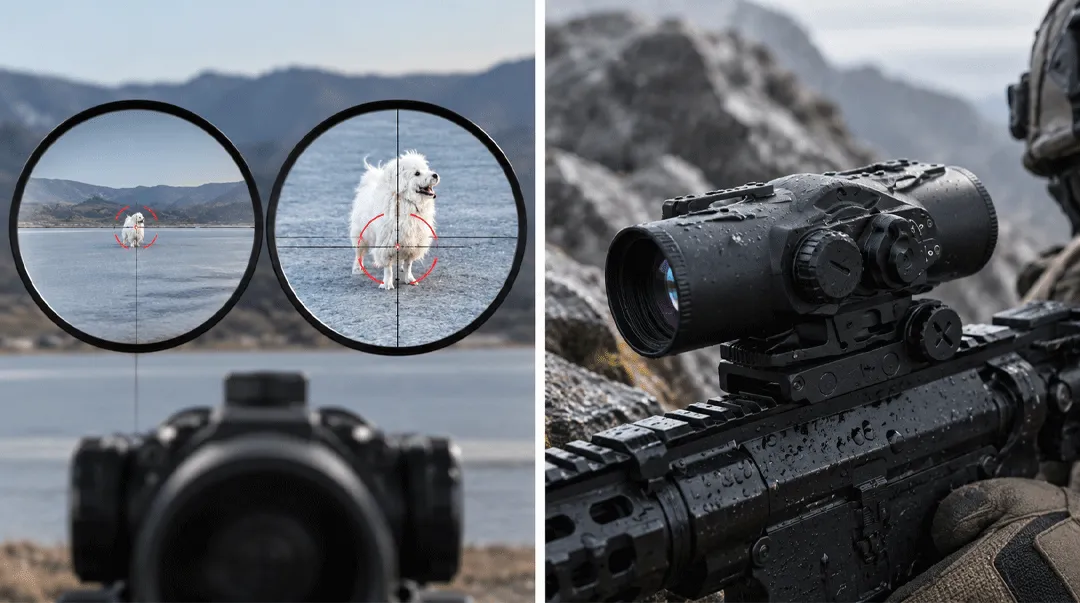

Precision Adjustment & Rugged Field Performance
Built with a durable 6061-T6 aluminum housing, the sight features a ≥±40 MOA adjustment range with precise 0.25 MOA click values. With 1200g impact resistance, IP67 waterproof protection and ≥10,000 hours of operating time, it is engineered for reliable performance in demanding outdoor environments.
Core Specifications
| Parameter | JV-ZS-01 |
| Representative products |  |
| Exit Pupil Diameter | 10mm (1×) / 5.3mm (6×) |
| Housing Material | Aluminum 6061-T6 |
| Weight | ≤465g |
| Center Height | 40.4mm |
| Adjustment Range | ≥±40MOA |
| FOV | 21° (1×) / 3.5° (6×) |
| Impact | 1200g |
| Magnification | 1× / 6× |
| Click Value | 0.25MOA |
| Power Supply | CR2032 |
| Waterproof | IP67 |
| Operating Time | ≥10000h |
| Operating Temperature | -40℃ ~ +50℃ |
| Storage Temperature | -50℃ ~ +60℃ |
| Size | 140mm × 62mm × 73mm |
