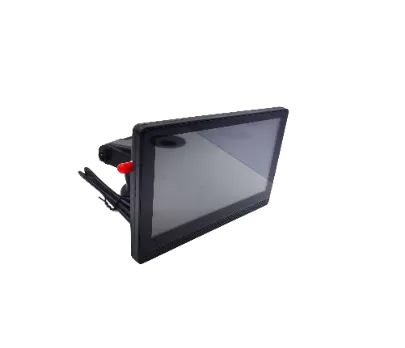

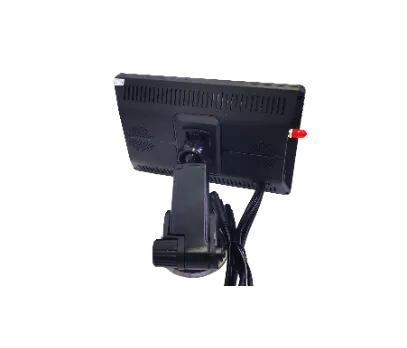

JV-ADS-S7P Thermal Imaging Night Vision+MP5+Carplay

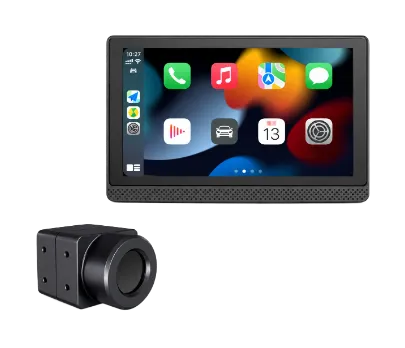

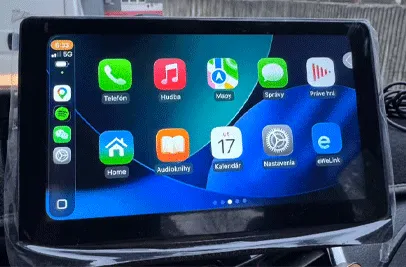

The JV-ADS-S7P Automotive Thermal Imaging Multimedia System combines far-infrared night vision with AI pedestrian and vehicle recognition to assist driving in darkness and reduced visibility. Its integrated IPS display supports Apple CarPlay, Android Auto, Bluetooth calls and music, and USB multimedia playback. Powered by a 3 TOPS AI processor, the system provides audible alerts that remain active while navigation or smartphone connectivity features are in use. Available with 256 × 192, 384 × 288, or 640 × 512 thermal resolution, it features an IP67-rated camera with automatic window defrosting. Support for an optional rearview camera, FM and AUX audio output, and cigarette lighter power makes it a versatile solution for passenger cars, RVs, commercial vehicles, and construction machinery.
-
-
-
-
OEM
ODM
Effect Display
In-Vehicle Night Vision System
Intelligent Vehicle & Pedestrian Detection
01

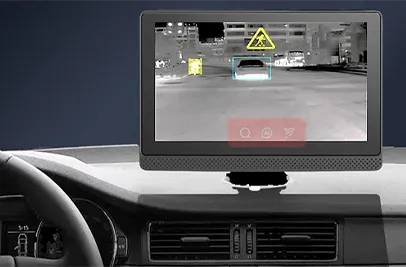

AI Thermal Imaging Night Vision for Safer Driving

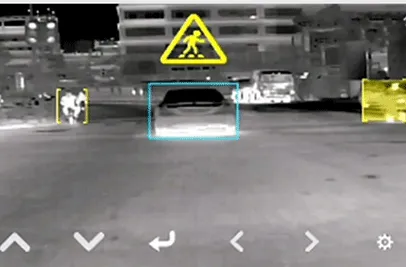

Equipped with a VOX thermal sensor and AI recognition algorithm, the JV-ADS-S7P provides real-time thermal imaging for detecting pedestrians and vehicles in darkness, strong light, fog and haze. With thermal imaging night vision and human and vehicle recognition, it helps enhance driving awareness and provide early warning of potential hazards.
02
3 TOPS AI Recognition & Intelligent Early Warning
Powered by a 3 TOPS AI NPU, the JV-ADS-S7P supports intelligent recognition of pedestrians and vehicles, together with distance estimation. Human recognition is supported up to 80m and vehicle recognition up to 200m, with a built-in speaker alarm for timely early warning.
Core Specifications
| Parameter | Specification |
| Product Image |  |
| Model | JV-ADS-S7P-2 (256) / JV-ADS-S7P-3 (384) / JV-ADS-S7P-6 (640) |
| Product Name | 7-inch Automotive Thermal Imaging Multimedia System |
| Thermal Imaging Camera | Specifications |
| Sensor Type | VOx |
| Spectral Range | 8–14 μm |
| NETD | 40 mK @ 25°C, F/1.0 |
| Thermal Resolution | 256 × 192 / 384 × 288 / 640 × 512 |
| Pixel Pitch | 12 μm |
| Focal Length | 9.1 mm |
| Focus Mode | Athermal fixed-focus lens |
| Field of View | 18° × 13° (256) / 29° × 22° (384) / 48° × 39° (640) |
| Detection Distance (Human / Vehicle) | 859 m / 1,263 m |
| Recognition Distance (Human / Vehicle) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) / 50 Hz (384 / 640) |
| Image Processing | Detail enhancement; automatic shutter correction |
| Video Output / Image Mode | UVC / White Hot |
| Lens Protection | High-strength protective window |
| Automatic Window Defrosting | Starts below 2°C; stops above 7°C |
| Camera Interface | 4-pin BMW-type connector |
| Operating Temperature | −30°C to +65°C |
| Housing / Protection Rating | Sealed aluminum alloy housing; IP67 |
| Camera Dimensions (L × W × H) | 40 × 30 × 26 mm (256) / 42 × 60 × 42 mm (384 / 640) |
| Camera Weight | 60 g (256) / 185 g (384/640) |
| Display and Control Unit | Specifications |
| Display Size | 7 inches |
| Display Resolution / Type | 1024 × 600 IPS display |
| Smartphone Connectivity | Specifications |
| Apple iPhone | Supported |
| Android Phone | Supported |
| Multimedia | Specifications |
| Multimedia Interface | Standard USB interface |
| Supported Media | Video, music, Bluetooth music |
| Audio Output | FM transmission; RCA output via 3.5 mm headphone jack |
| Video Input | Specifications |
| Reverse Camera Input | Supports CVBS rearview camera |
| Thermal Night Vision Functions | Specifications |
| Startup Mode | Automatic startup |
| Target Recognition | Human and vehicle recognition; distance estimation |
| Recognition Rate | ≥95% |
| AI Recognition Distance | Human: 80 m; Vehicle: 200 m |
| GPS | Supported |
| Alarm Method | Built-in speaker |
| General Specifications | Specifications |
| Supply Voltage | 9–24 V |
| Power Consumption | 10 W |
| Main Unit Dimensions (L × W × H) | 180 × 30 × 117 mm |
