Infrared Thermal Imaging
Thermal Imaging Camera

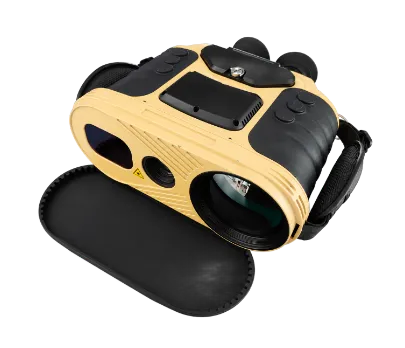

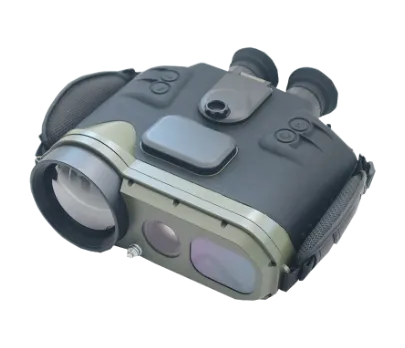

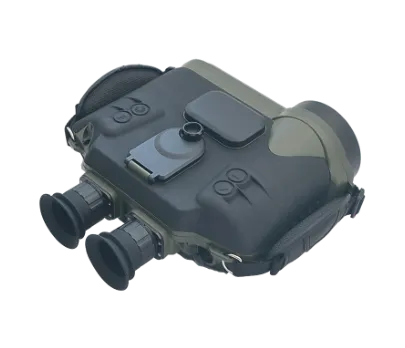

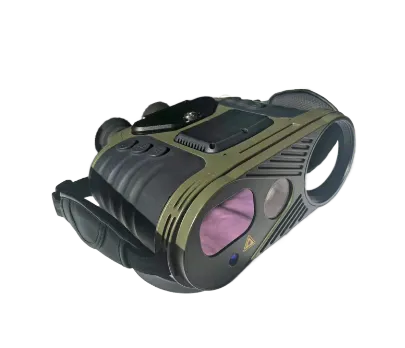

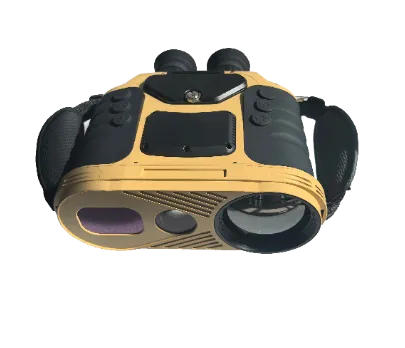

Multi-functional Binocular Camera
This is a multi-purpose reconnaissance system, advanced hand-held, fully integrated multi-function thermal imager binocular, which allows the user to detect and locate target. It is fitted with a latest UN-cooled thermal imager, eye-safe laser rangefinder, integrated GPS/GNSS, digital magnetic compass (DMC) and visible light camera. The system provides silent operation, advanced target location and image storage capabilities to work well in a wide variety of battlefield conditions.
-
-
-
-
OEM
ODM

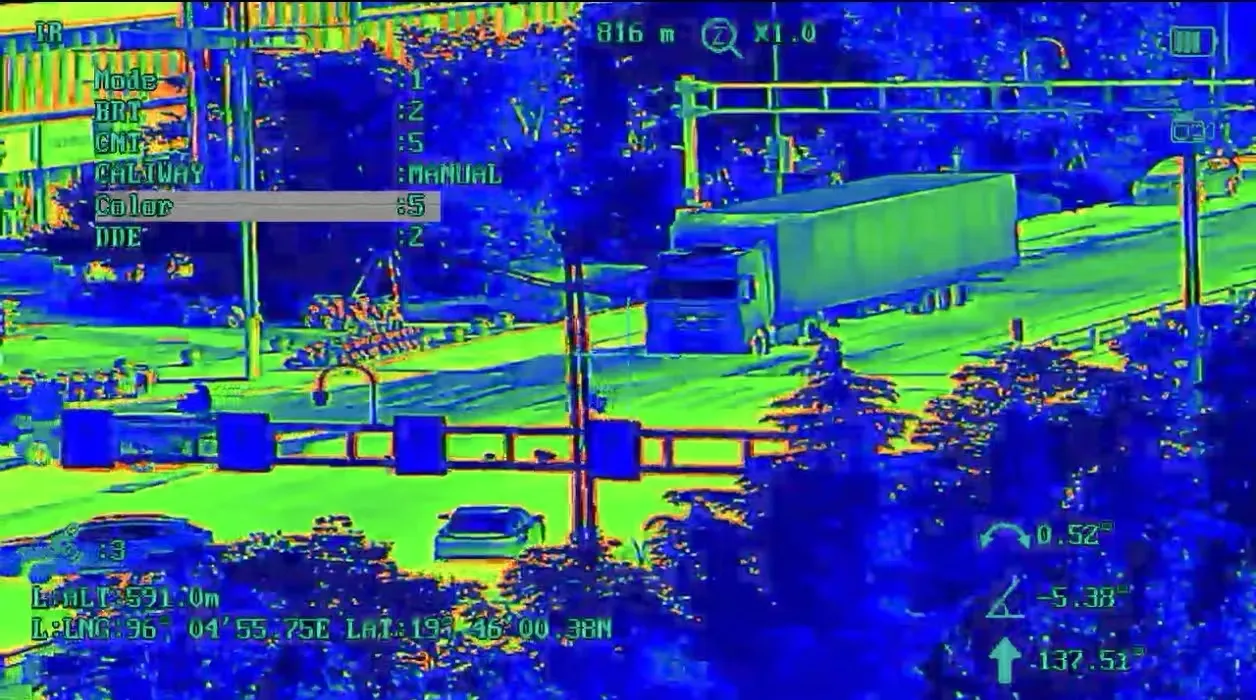

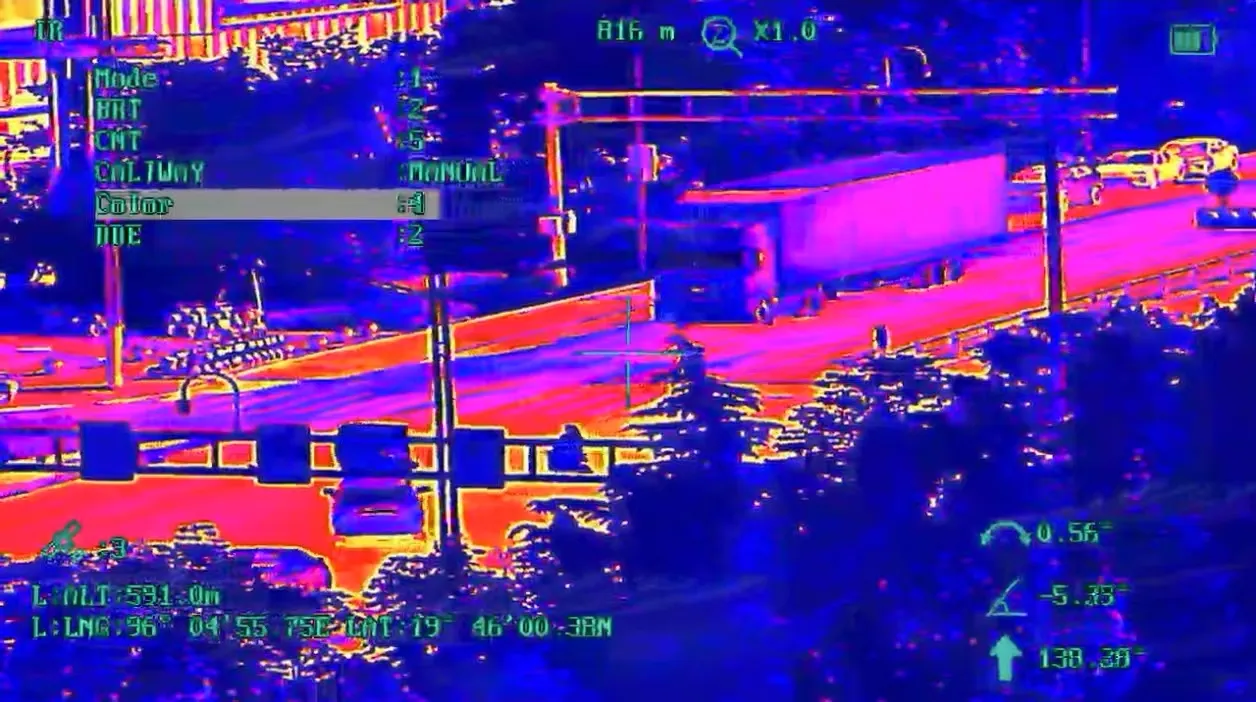

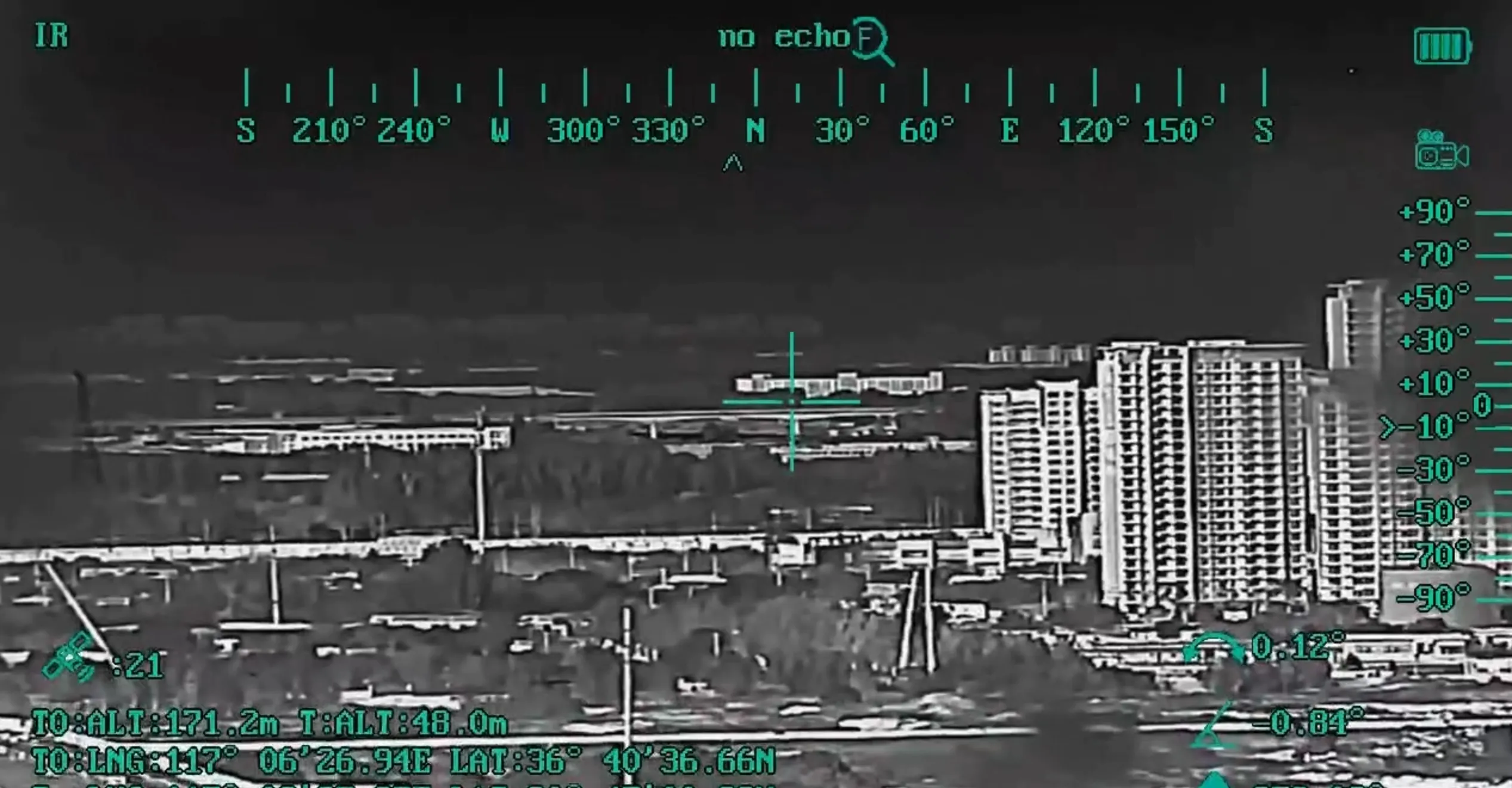

Effect Display
Infrared Thermal Imaging
Infrared Thermal Imaging
01
High-Resolution Dual-Sensor Imaging
Equipped with a 640×512 VOx FPA thermal detector, 12μm pixel pitch, 50Hz frame rate and 75mm F1.0 infrared lens, the binocular camera delivers clear thermal imaging while the integrated 2688×1520 daylight camera enables combined thermal and visible-light observation.
02
Long-Range Laser Ranging & Target Positioning
Featuring an eye-safe 1.54μm laser range finder with range options up to 6000m, 8000m or 12000m, the system integrates GPS/GNSS and a digital magnetic compass for target location and long-range reconnaissance.
Core Specifications
| Parameters | JV-MFB675-5006 | JV-MFB675-5008 | JV-MFB675-5012 |
| Representative products |  |
 |
 |
| Detector Type | VOx FPA | VOx FPA | VOx FPA |
| Array Size / Resolution | 640×512 | 640×512 | 640×512 |
| Detector Pitch | 12 μm | 12 μm | 12 μm |
| Frame Rate | 50 Hz (PAL) | 50 Hz (PAL) | 50 Hz (PAL) |
| NETD | ≤40 mK @ 25℃, F#1.0 | ≤40 mK @ 25℃, F#1.0 | ≤40 mK @ 25℃, F#1.0 |
| IR Lens | f=75 mm, F#1.0 | f=75 mm, F#1.0 | f=75 mm, F#1.0 |
| Field of View | 5.9° × 4.7° | 5.9° × 4.7° | 5.9° × 4.7° |
| Eyepiece Magnification | 10× | 10× | 10× |
| Resolution | 2688×1520 | 2688×1520 | 2688×1520 |
| Focal Length | 50 mm | 50 mm | 50 mm |
| Wavelength | 1.54 μm (Eye-safe) | 1.54 μm (Eye-safe) | 1.54 μm (Eye-safe) |
| Range Distance | 50 m–6000 m | 50 m–8000 m | 50 m–12000 m |
| Operating Temperature | -30℃ to +55℃ | -30℃ to +55℃ | -30℃ to +55℃ |
| Storage Temperature | -40℃ to +60℃ | -40℃ to +60℃ | -40℃ to +60℃ |
| Dimensions (L × W × H) | 253 × 242 × 97 mm | 253 × 242 × 97 mm | 253 × 242 × 97 mm |
| Weight | 1.8 kg | 2.0 kg | 2.1 kg |
