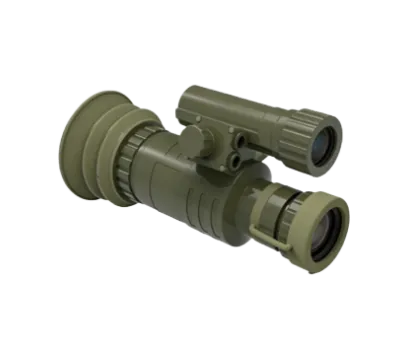

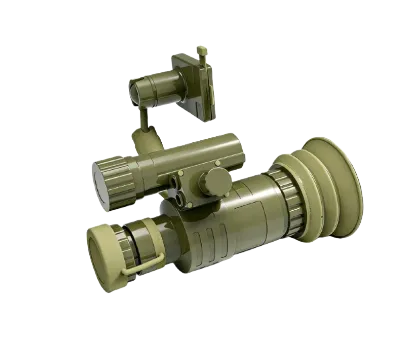

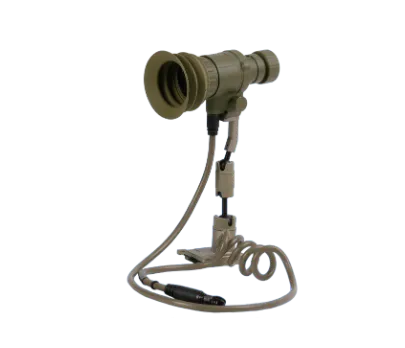

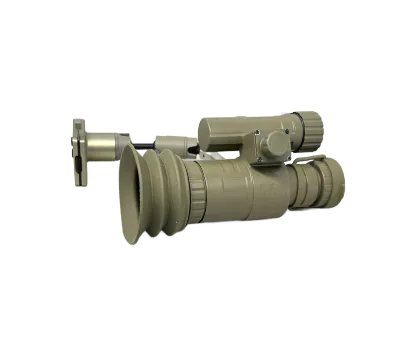

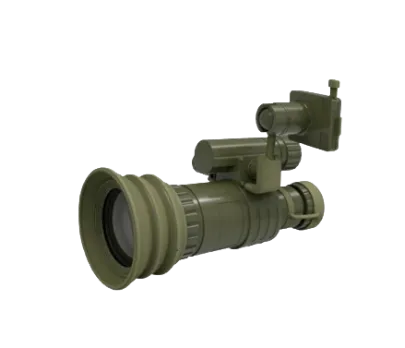

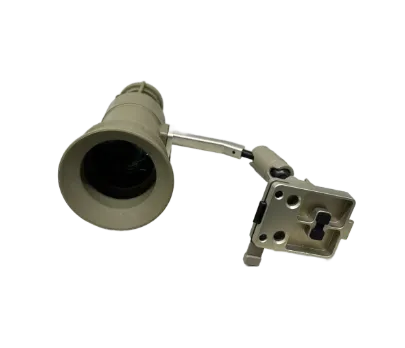

Helmet Monocular Night Vision Goggles
This helmet-mounted single-lens night vision observation device is lightweight head-mounted observation equipment specially designed for low-light night environments. The product is mainly for assisting nighttime marching, and other uses like short-distance observation equipment operation and reading. It adopts a modular mounting design and can be quickly adapted to various standard helmets. It is widely applicable to various scenarios such as night outdoor operations, security patrols, field observations, and emergency rescue.
-
-
-
-
OEM
ODM
Effect Display
Night Vision Device
Monochrome Night Vision Imaging
01

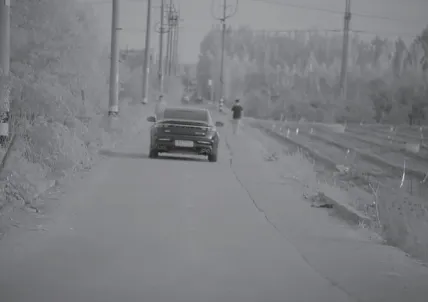

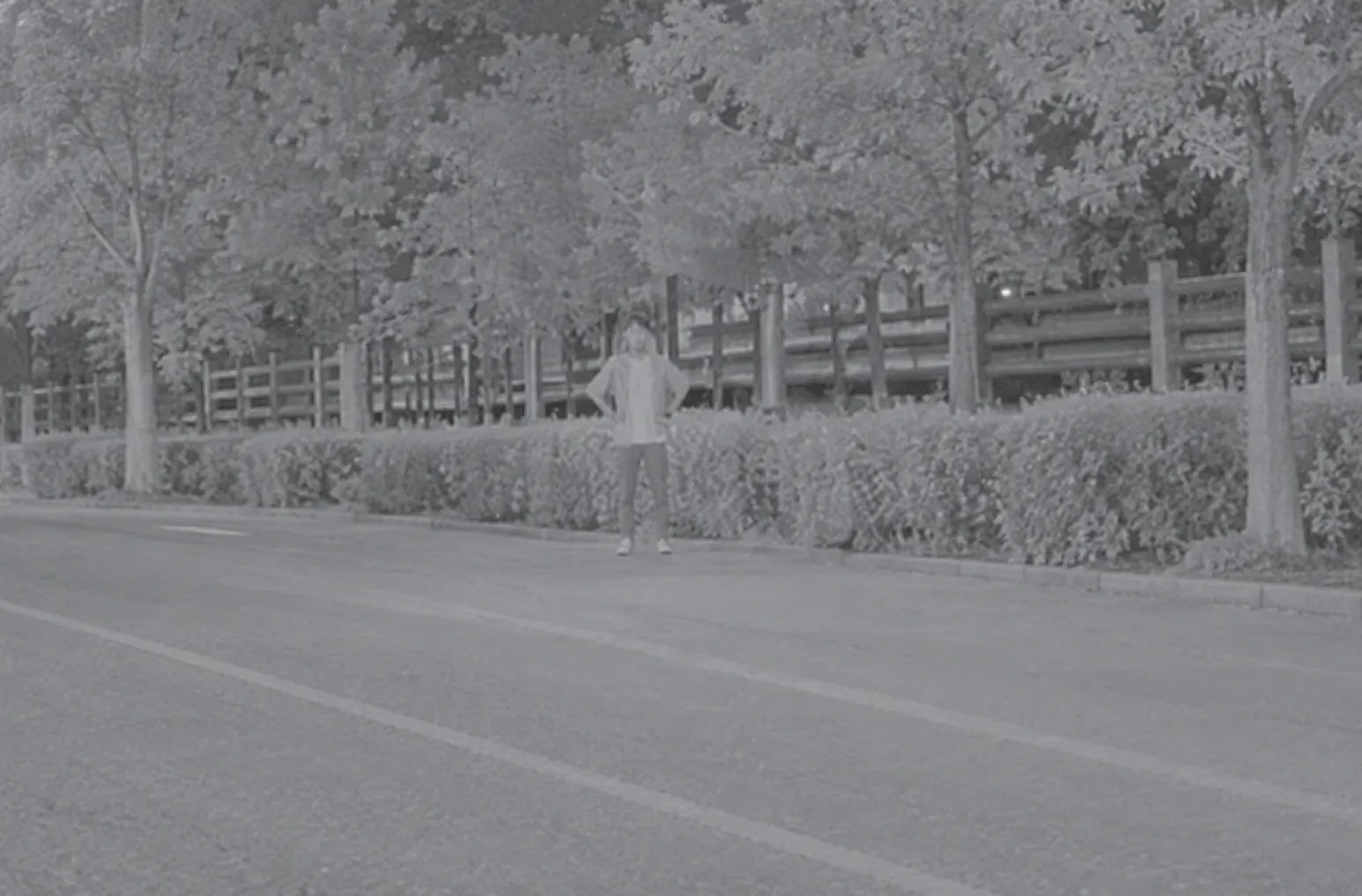

No-Moon Low-Light Night Vision Observation
Designed for low-light environments, the monocular night vision device provides pedestrian recognition at ≥110m under no-moon conditions, with an 800×600 display, ≥34°×25° field of view and focusing range from 250mm to infinity for clear nighttime observation.
02

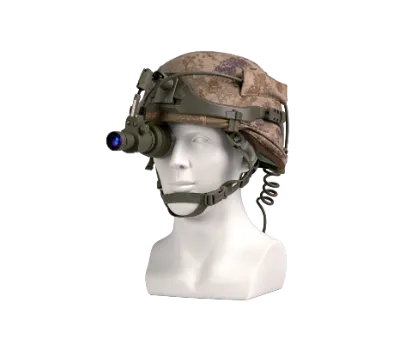

Lightweight Helmet-Mounted Observation & Recording
Featuring a compact helmet-mounted design with left/right-eye interchangeable observation and image recording support, the device weighs ≤310g including bracket and cable, supports 1X magnification with optional 3X/4X/5X configurations, ≥6 hours of continuous operation and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVD101 |
| Representative products |  |
| Recognition distance | No moon, identify pedestrians ≥110m |
| Exit pupil distance | 35mm |
| Magnification | 8mm |
| Visual magnification | 1X (3X/4X/5X Optional) |
| FOV | ≥34° × 25° |
| Focusing range | 250mm ~ ∞ |
| Diopter | -5SD ~ +2SD |
| Display resolution | 800 × 600 |
| Power | 18650 battery |
| Continuous working time | ≥6h (Normal temperature) |
| Waterproof | IP65 (IP67 Optional) |
| Storage temperature | -50℃ ~ +60℃ |
| Weight | ≤310g ±10g (Including bracket and cable) |
| Size | 100mm × 115mm × 150mm |
