AHD-OUT Automotive Thermal Imaging Unit

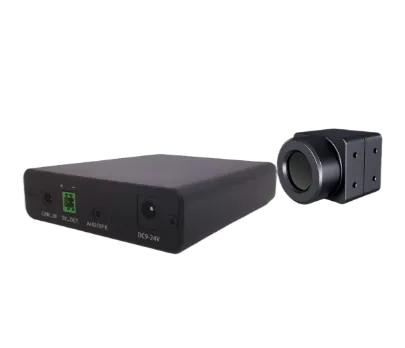

The AA Series AHD Output Automotive Thermal Imaging Night Vision System combines far-infrared imaging with AI pedestrian and vehicle recognition to assist driving in darkness and reduced visibility. It supports 720p and 1080p AHD output at 25 or 30 Hz for integration with compatible monitors, electronic rearview mirrors, and third-party video systems. Powered by a 3 TOPS NPU, it provides three levels of visual and audible pedestrian warnings, with GPS-based speed thresholds and adjustable alert settings. Available with 256 × 192, 384 × 288, or 640 × 512 thermal resolution, the system features an IP67-rated camera with automatic window defrosting. DC 9-36 V power input and aviation or RCA video connector options support installation in passenger cars, RVs, commercial vehicles, and construction machinery.
-
-
-
-
OEM
ODM

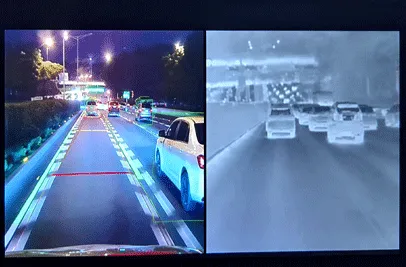

Effect Display

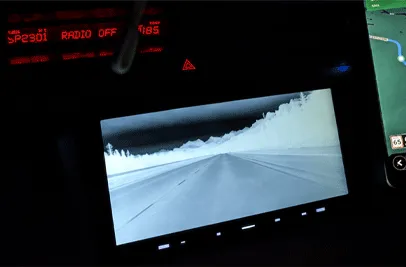

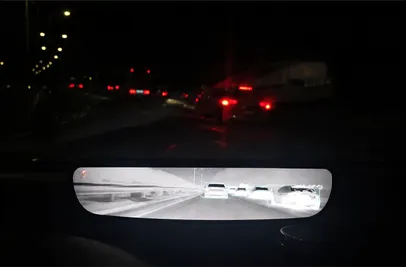

AHD Display
Third-Party Integration
01

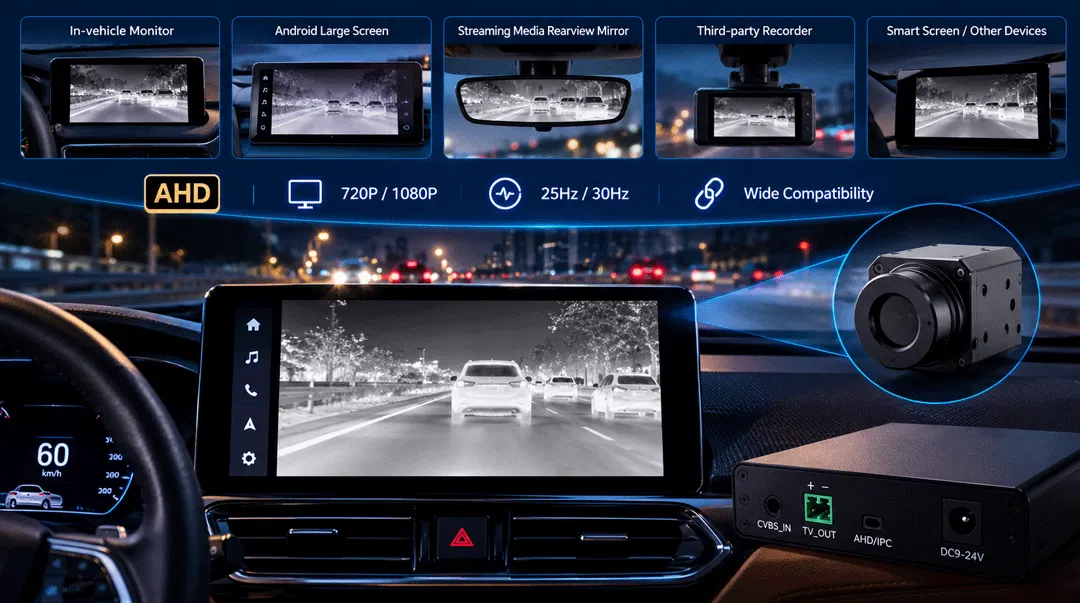

AHD Video Output & Flexible Vehicle Display Integration
Designed for automotive thermal imaging night vision applications, the system supports AHD 720P/1080P output at 25Hz/30Hz and can connect to monitors, Android large-screen displays, streaming media electronic rearview mirrors, third-party recorders and other devices with AHD inputs. Optional four-core aviation or RCA video interfaces are also supported.
02

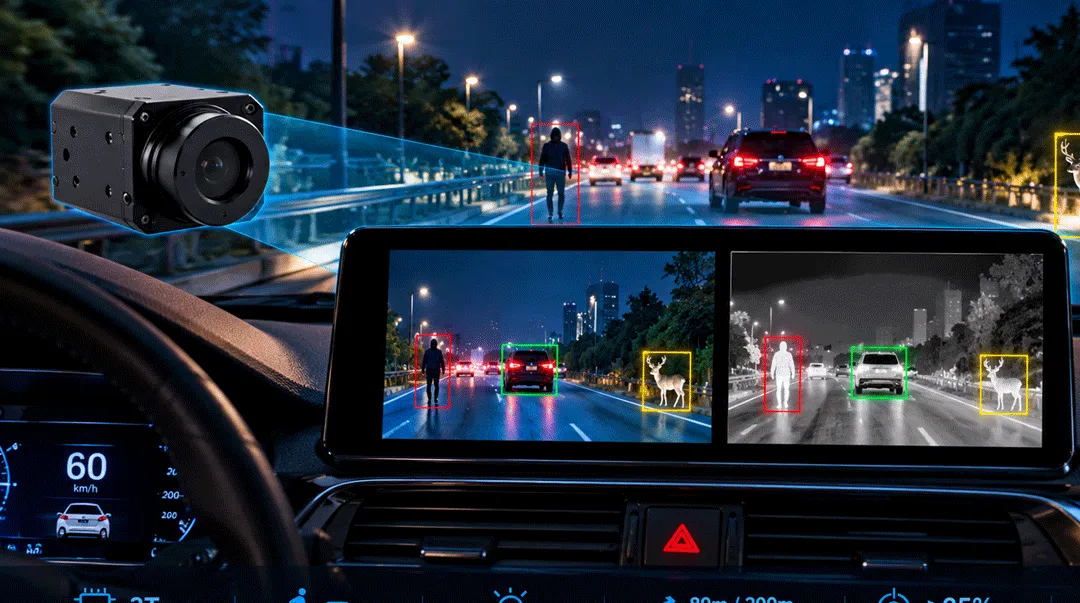

3 TOPS AI Recognition & Intelligent Early Warning
Powered by a 3 TOPS NPU, the system supports human, vehicle and distance recognition, with an identification rate of ≥95% and real-time performance of ≥21 FPS. AI recognition supports humans up to 80m and vehicles up to 200m, while speed- and distance-based warning functions provide multi-level alerts for potential hazards.
Core Specifications
| Parameter | Specification |
| Product Image |  |
| Model | A2A (256) / A3A (384) / A6A (640) |
| Product Name | AHD Output Automotive Thermal Imaging Night Vision System |
| Thermal Imaging Camera | Thermal Sensor |
| Sensor Type | VOx |
| Spectral Range | 8–14 μm |
| NETD | 40 mK @ 25°C, F/1.0 |
| Thermal Resolution | 256 × 192 / 384 × 288 / 640 × 512 |
| Pixel Pitch | 12 μm |
| Lens | |
| Focal Length | 9.1 mm |
| Focus Mode | Athermal fixed-focus lens |
| Field of View | 18° × 13° (256) / 29° × 22° (384) / 48° × 39° (640) |
| Detection Distance (Human / Vehicle) | 859 m / 1,263 m |
| Recognition Distance (Human / Vehicle) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) / 50 Hz (384 / 640) |
| Image Processing | Detail enhancement; automatic shutter correction |
| Image Mode | Detail enhancement, automatic shutter correction, White hot |
| Camera General Specifications | |
| Lens Protection | High-strength protective window |
| Automatic Window Defrosting | Starts below 2°C; stops above 7°C |
| Camera Power Consumption | <1 W with heating off / <3 W with heating on |
| Camera Operating Temperature | −30°C to +70°C |
| Camera Housing / Protection Rating | Sealed aluminum alloy housing; IP67 |
| Camera Dimensions (L × W × H) | 40 × 30 × 26 mm (256) / 42 × 60 × 42 mm (384 / 640) |
| Camera Weight | 60 g (256) / 185 g (384 / 640) |

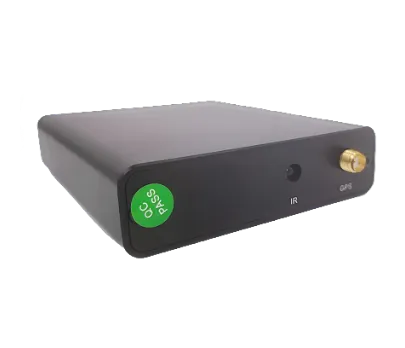

| ECU Parameters | System Performance |
| Operating System | Linux |
| Supply Voltage | DC 9–36 V |
| NPU Computing Power | 3 TOPS |
| ECU Power Consumption | <5 W |
| Recognition Functions | Human recognition; vehicle recognition; distance estimation |
| Recognition Rate | ≥95% |
| Real-Time Processing Rate | ≥21 FPS |
| AI Recognition Distance | Human: <80 m; Vehicle: <200 m |

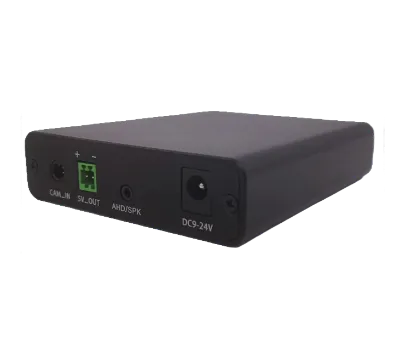

| ECU Interfaces and Functions | |
| Camera Interface | 4P BMW head interface |
| ECU Video Output | AHD: 720p / 1080p; 25 Hz / 30 Hz |
| Settings Control | IR remote controller |
| Data Interface | TTL serial port (optional) |
| Warning Function | Alarm based on speed and distance |
| Video Connector Options | 4-pin aviation connector / RCA connector |
| GPS | Supported |
| Operation | Automatic background alerts; adjustable warning activation speed |
| ECU General Specifications | |
| Power Connection | Cigarette lighter socket |
| ECU Operating Temperature | −30°C to +70°C |
| ECU Dimensions (L × W × H) | 110 × 100 × 25 mm |
| ECU Weight | Approximately 360 g |
