50mm Thermal Imaging Scope

Thermal Imaging Camera

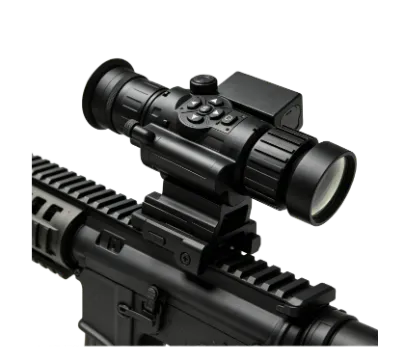

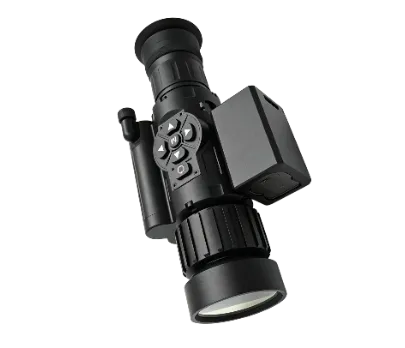

50mm Thermal Imaging Scope

This product is a dedicated personnel reconnaissance target shooting night vision viewer. The product is equipped with an advanced 640*512 resolution detector, can provide high-quality high-resolution infrared images, detecting in total darkness, fog, haze and smoke and can be used for man-night observation, finding the target. By installing different adapters, it can be used in conjunction with a variety of sighting equipment, shooting equipment, observation devices/equipment. It can be mounted on various light weapons, telescopic sights, also be used as handheld observation for night reconnaissance, search target. The system has excellent IP67 waterproof and dust-proof performance, light weight, shock-resistant, anti-interference, can be used in all weather conditions.

  • CE
  • FC
  • ISO
  • OEM
    ODM

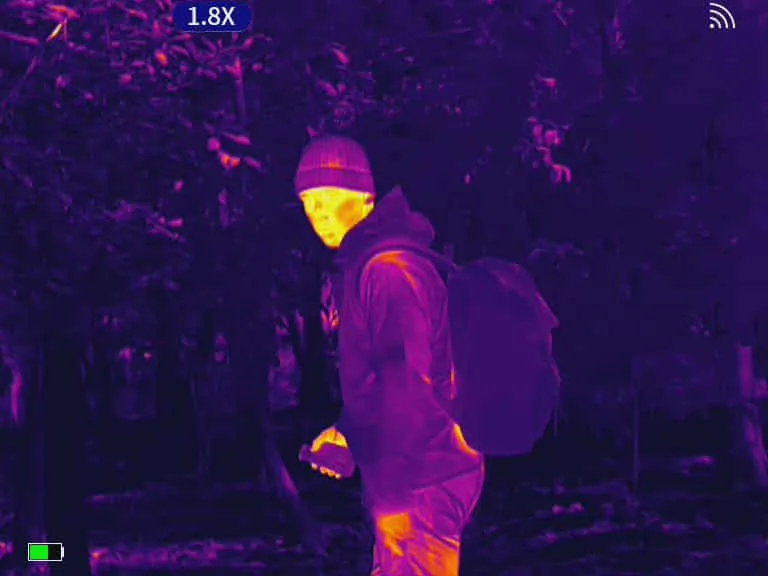

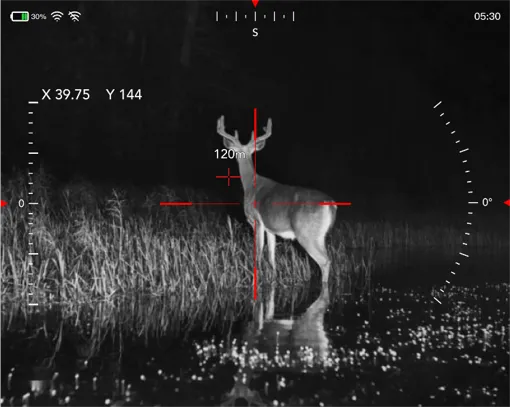

Effect Display

Infrared Thermal Imaging
Infrared Thermal Imaging
Infrared Thermal Imaging
01

High-Resolution Thermal Imaging Capability

Equipped with an uncooled infrared sensor with 640×512 resolution, 8-14μm spectral range and ≤30mK NETD, the thermal imaging scope delivers clear and sensitive thermal images for accurate target observation in various environments.

02

Long-Range Detection & Precision Target Recognition

Featuring a 50mm focal length, digital 2X/4X/8X zoom and 800m laser rangefinder, the thermal imaging scope provides precise target observation and measurement with a recognition distance of up to 1.8km for animals.

Core Specifications

Parameter JV-TSR650
Representative products 50mm Thermal Imaging Scope
Recognition distance 1.8km for animals
Detector Uncooled sensor Resolution 640×512
FOV 12.4°×9.3°
Spectral range 8-14μm
NETD ≤30mk
Frame rate 50Hz
Focal length 50mm
Zoom Digital zoom: 2X/4X/8X
Reticle 6 type
Diopter adjustment -5 to +5 dpt
Laser range finder 800m (±2m)
Weapon mount type Picatinny, MIL-STD 1913
Display 1024×768 OLED
Start up ≤3 seconds
Pitch angle Support
Slant angle Support
Compass Support
WIFI Support
Battery type CR123A
Operating time 6~8 hours continuous operation
Working temp. -40℃ ~ +60℃
Shock 1200G/1ms
