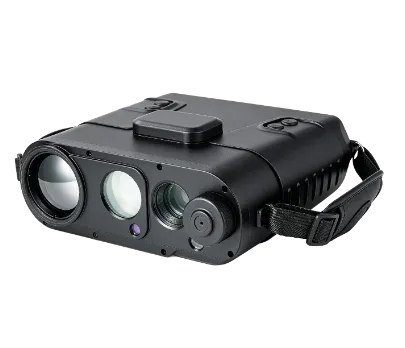

HMF-6210C Cooled Thermal Imaging Binoculars
This product is a multipurpose reconnaissance system, fully integrated multi-function thermal imager binocular, which allows the user to detect and locate target. It can get the coordinates and bearings of the targets in day and night with thermal image or visible light camera. HMF- 6210C equipped with a MW cooled thermal imager, eye-safe laser range finder,visible light camera, laser pointer, GPS/BD/GNSS, digital magnetic compass (DMC). The system provides advanced target location and image storage capabilities to work well in a wide variety of battlefield conditions.
-
-
-
-
OEM
ODM
Effect Display
Target Positioning
Mission Planning
01
High-Sensitivity Cooled MWIR Thermal Imaging
Equipped with a cooled MCT thermal detector featuring 640×512 resolution, 15μm pixel pitch, a 3.7–4.8μm spectral band and <25mK NETD, the binocular system combines a 40–200mm continuous-zoom infrared lens with a 50Hz frame rate for long-range thermal observation.
02
Long-Range Ranging & Precise Target Positioning
Integrating a 2MP color CMOS visible-light camera, 1.54μm eye-safe laser range finder, GPS/BD/GNSS and digital magnetic compass, the system supports ranging from 50m to 8000m with a maximum range of 10km for target location and all-weather field reconnaissance.
Core Specifications
| Parameter | HMF-6210C |
| Representative products |  |
| Device type | Cool-ed MCT |
| Infrared Resolution | 640×512 |
| Spectral Band | 3.7～4.8μm |
| Detector Pitch | 15μm |
| Frame Rate | 50Hz (PAL) |
| NETD | <25mK@300℃, F#4.0 |
| E-Zoom | 1×～4× |
| IR Lens | f=40mm～200mm |
| F# | 4.0 |
| Field of view | 13.8°×11°～2.8°×2.2° |
| Sensor | Colour CMOS |
| Effective pixels | 2Mp |
| Visible Light Field of view | 6.9°×5.2°～1.7°×1.3° |
| Laser Wave Length | 1.54μm (Eye safety) |
| Range Distance | 50m～8000m (Max: 10km) |
| Micro Display | 2×Micro OLED (1024×768) |
| Eyepiece Magnification | 14× |
| Weight | ≤3.2kg |
| Dimension (mm) | 250×230×90mm (L×W×H) |
| Operating Temperature | -30℃～+55℃ |
| Storage Temperature | -40℃～+65℃ |
| Working Time | Continuous working time ≥4 hours (@25℃) |
