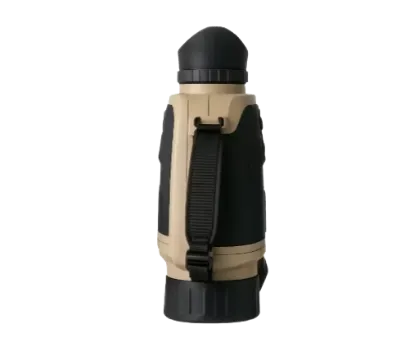

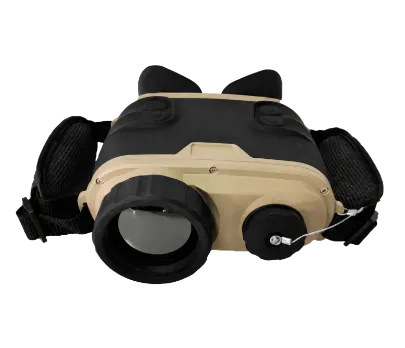

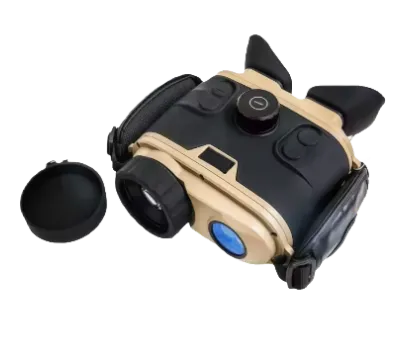

Binocular Thermal Imaging Camera
This product handheld thermal imaging camera features the latest high-sensitivity uncooled infrared focal plane detector, advanced imaging circuitry,optimized optics and a high-resolution LCOS display. The product has excellent infrared imaging effect, abundant interfaces, small and lightweight, simple to control, lightweight and portable structure. The product is equipped with a rubber soft sleeve, which is optimized according to the human hand shape, so that the user has a good one-handed holding experience.
-
-
-
-
OEM
ODM
Effect Display
Infrared Thermal Imaging
Infrared Thermal Imaging
01
High-Performance Uncooled Infrared Core
Equipped with an uncooled VOx FPA detector featuring a 640×512 array and 12μm pixel pitch, with a 25Hz frame rate and <40mK NETD at F#1.0 @300K for high-sensitivity thermal imaging.
02
Ultra-Long Detection & Recognition Range
Detect human targets up to 3.0km with recognition within 1.0km, and vehicles up to 6.5km with recognition within 2.3km for reliable long-range observation.
Core Specifications
| Parameter | JV-650M |
| Representative products |  |
| Detector | VOx UN-Cooled FPA |
| Detector Array | 640×512@12μm |
| Spectral Range | 8–14μm |
| Frame Rate | 25Hz (PAL) |
| NETD | <40mK F#1.0 @300K |
| Micro Display | 1024×768 OLED |
| Eyepiece Magnification | 14× |
| Batteries | 26650 Li 3.7V / 5000mAh |
| Working Time | ~8 hours |
| E-Zoom | 1× ~ 4× |
| Focal Length | f = 50mm |
| F# | 1 |
| Field of View | 8.8° × 7° |
| Focus Mode | Manual / Motorize (Optional) |
| Observation Distance – Person | Detection: 3.0km; Recognition: 1.0km |
| Observation Distance – Vehicle | Detection: 6.5km; Recognition: 2.3km |
| Protect Standard | IP66 (Poly Carbon housing) |
| Operating Temperature | -30℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Weight | ≤1.1kg (included battery) |
| Dimensions (mm) | 220(L) × 170(W) × 65(H) |
