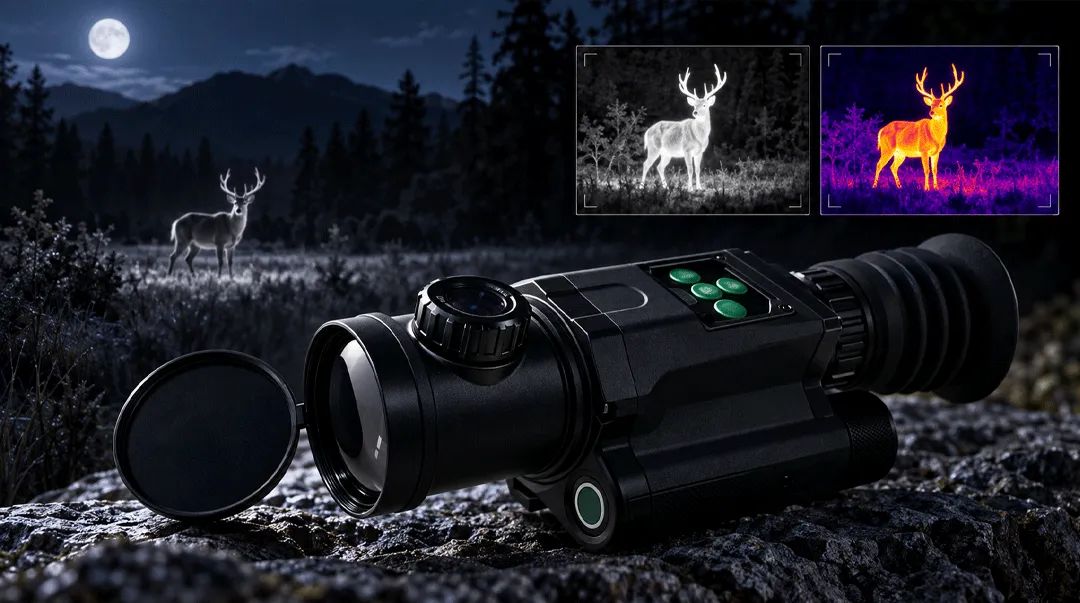

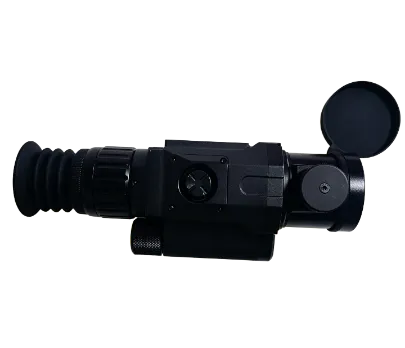

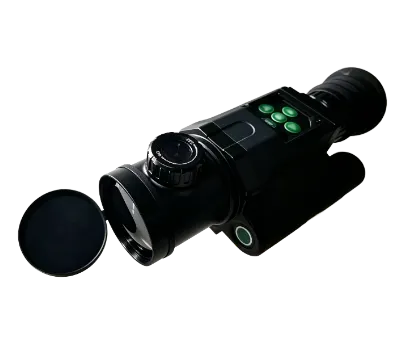

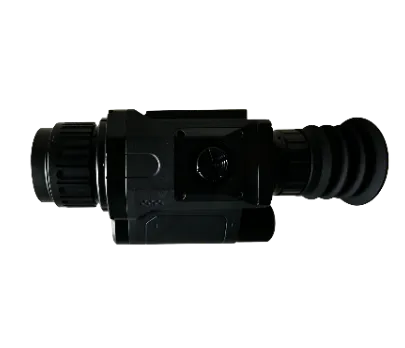

Monocular Thermal Imaging Camera (green)
This product is equipped a 384×288. UN-cooled detector and features optimized lens optics. The unique low power design extends battery runtime. This product is designed with low power, compact, rugged, durable, and simple which can be mounted on weapons or held by hand to suit diverse applications. This affordable product serves a wide range of scenarios in military and border security. The system has excellent IP67 waterproof and dust-proof performance, light weight, anti-shock, anti-interference, can be used in all weather conditions.
-
-
-
-
OEM
ODM
Effect Display
Infrared Thermal Imaging
Infrared Thermal Imaging
01
High-Sensitivity Thermal Imaging Performance
Equipped with a 384×288 infrared sensor, 17μm pixel pitch and <40mK thermal sensitivity, the monocular thermal imaging camera features a 50mm F1.0 lens and 1024×768 color OLED display for clear and detailed thermal observation.
02
Long-Range Target Detection & Recognition
Supporting continuous 1×–4× electronic zoom, the thermal imaging camera detects people up to 1800m with recognition at 600m, and vehicles up to 4500m with recognition at 1500m.
Core Specifications
| Parameter | JV-TSRII350 |
| Representative products |  |
| Sensor Resolution | 384×288 |
| Sensor Sensitivity | <40mK@300°C, F#1.0 |
| Sensor Pitch | 17μm |
| Spectral Range | 8～14μm |
| E-Zoom | 1×～4× |
| Focal length | f=50mm, F1.0 |
| Field of view | 7.5°×5.6° |
| Eye Relief | 40mm |
| Diameter of Exit Pupil | 7mm |
| Diopter adjustment | -600～+400 |
| Display | Colour OLED (1024×768) |
| Battery | 1×18650 (3200mAH), Operating Time: ～5 hours |
| Power Consumption | <2.5W (@25°C) |
| System Weight | <850g (Include battery, Exclude Adaptor) |
| Dimension（mm） | 230×90×90mm (Exclude Adaptor) |
| People (1.8×0.92m) – Detection | 1800m |
| People (1.8×0.92m) – Recognition | 600m |
| Vehicle (2.3×2.3m) – Detection | 4500m |
| Vehicle (2.3×2.3m) – Recognition | 1500m |
| Operating Temperature | -30°C～+60°C |
| Storage Temperature | -40°C～+70°C |
| Protect standard | IP66 |
| Humidity | 5%～95% (Non-Condensing) |
| Impact | 500g/1.49ms |
