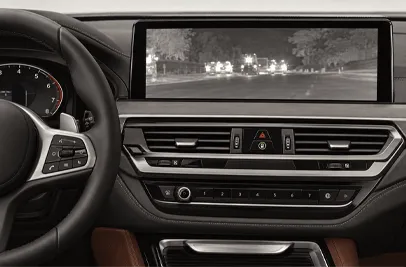

Original Screen
Vehicle-Mounted Thermal Cameras

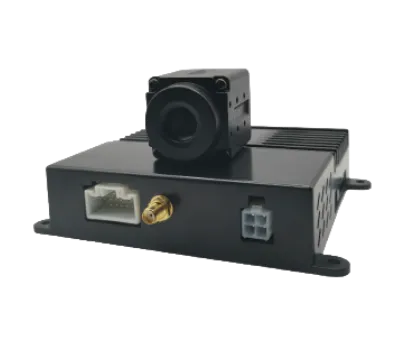

CVBS and USB Output Universal Host
The Universal Automotive Thermal Imaging Night Vision System combines far-infrared thermal imaging with AI pedestrian and vehicle recognition to assist driving in darkness and reduced visibility. It supports simultaneous CVBS and USB video output for connection to compatible external monitors, Android displays, or original vehicle screens through a dedicated decoder. The system provides visual and audible pedestrian warnings, with GPS-based speed thresholds and adjustable warning distances, schedules, and volume. Available with 256 × 192, 384 × 288 or 640×512 thermal resolution, it features an IP67-rated camera with automatic window defrosting and a separate controller powered by DC 9–36 V. The system supports installation in passenger and commercial vehicles, with a monitor available separately.
-
-
-
-
OEM
ODM
Effect Display
Retrofit Screen

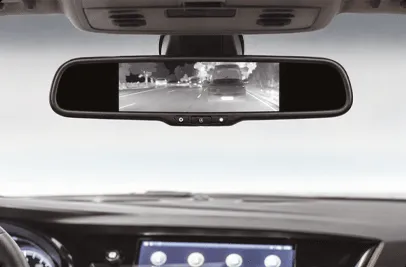

Rearview Mirror Screen
01
AI Thermal Imaging Night Vision for Safer Driving
Equipped with a VOX infrared detector, JV-ADS-S5 delivers 256×192 thermal imaging with a 10mm focal length for reliable road observation in low-light and nighttime conditions. With IP67 protection, automatic window defrosting and 3 TOPS NPU computing power, the system supports clear thermal imaging and human/vehicle identification for conventional fuel-powered vehicles.
02
AI Human & Vehicle Recognition with Intelligent Early Warning
JV-ADS-S5 integrates AI-based human and vehicle identification with a built-in external speaker for intelligent early warning. Powered by a 3 TOPS NPU, the system supports real-time thermal image processing and helps detect potential road hazards earlier. Its compact 30×26×40mm camera design and IP67 protection enable flexible integration into dedicated vehicle thermal imaging systems.
Core Specifications
| Parameter | Specification |
| Product Image |  |
| Model | JVA-256 / JVA-384 / JVA-640 |
| Product Name | Automotive Thermal Imaging Night Vision System |
| Thermal Imaging Camera | Thermal Sensor |
| Sensor Type | VOx |
| Spectral Range | 8–14 μm |
| NETD | 40 mK @ 25°C, F/1.0 |
| Thermal Resolution | 256 × 192 / 384 × 288 / 640 × 512 |
| Pixel Pitch | 12 μm |
| Lens | |
| Focal Length | 9.1 mm |
| Focus Mode | Athermal fixed-focus lens |
| Field of View | 18° × 13° (256) / 29° × 22° (384) / 48° × 39° (640) |
| Detection Distance (Human / Vehicle) | 859 m / 1,263 m |
| Recognition Distance (Human / Vehicle) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) / 50 Hz (384 / 640) |
| Image Processing | Detail enhancement; automatic shutter correction |
| Camera Video Output | UVC / CVBS |
| Camera General Specifications | |
| Lens Protection | High-strength protective window |
| Automatic Window Defrosting | Starts below 2°C; stops above 7°C |
| Camera Power Consumption | <1 W with heating off / <3 W with heating on |
| Camera Operating Temperature | −30°C to +70°C |
| Camera Housing / Protection Rating | Sealed aluminum alloy housing; IP67 |
| Camera Dimensions (L × W × H) | 35 × 49 × 35 mm (256) / 42 × 60 × 42 mm (384 / 640) |
| Camera Weight | 100 g (256) / 185 g (384 / 640) |
| ECU Parameters | System Performance |
| Operating System | Linux |
| Supply Voltage | DC 9–36 V |
| NPU Computing Power | 3 TOPS |
| ECU Power Consumption | <7W |
| Recognition Functions | Human recognition; vehicle recognition; distance estimation |
| Recognition Rate | ≥95% |
| Real-Time Processing Rate | ≥21 FPS |
| AI Recognition Distance | Human: <80 m; Vehicle: <200 m |
| ECU Interfaces | |
| Camera Interface | 6-pin BMW-type connector |
| ECU Video Output | Simultaneous PAL / USB output |
| Settings Control | IR remote controller |
| Data Interface | TTL output: target type, coordinates, distance |
| Warning Function | Alarm based on speed and distance |
| Supported Languages | Chinese, English, Russian |
| App Operation | Automatic startup; voice wake-up |
| ECU General Specifications | |
| ECU Operating Temperature | −30°C to +70°C |
| ECU Dimensions (L × W × H) | 110 × 100 × 25 mm |
| ECU Weight | 360 g |
