Monochrome Thermal Imaging
Thermal Imaging Camera
Multipurpose Thermal Imaging Scope

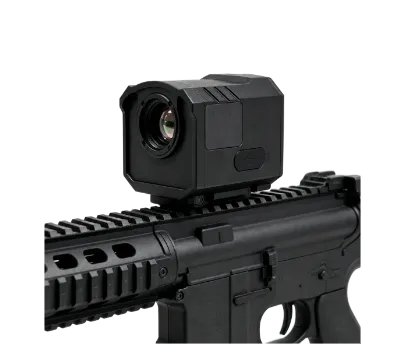

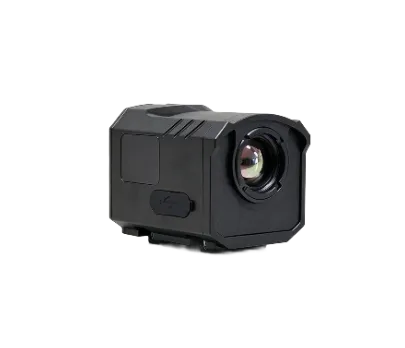

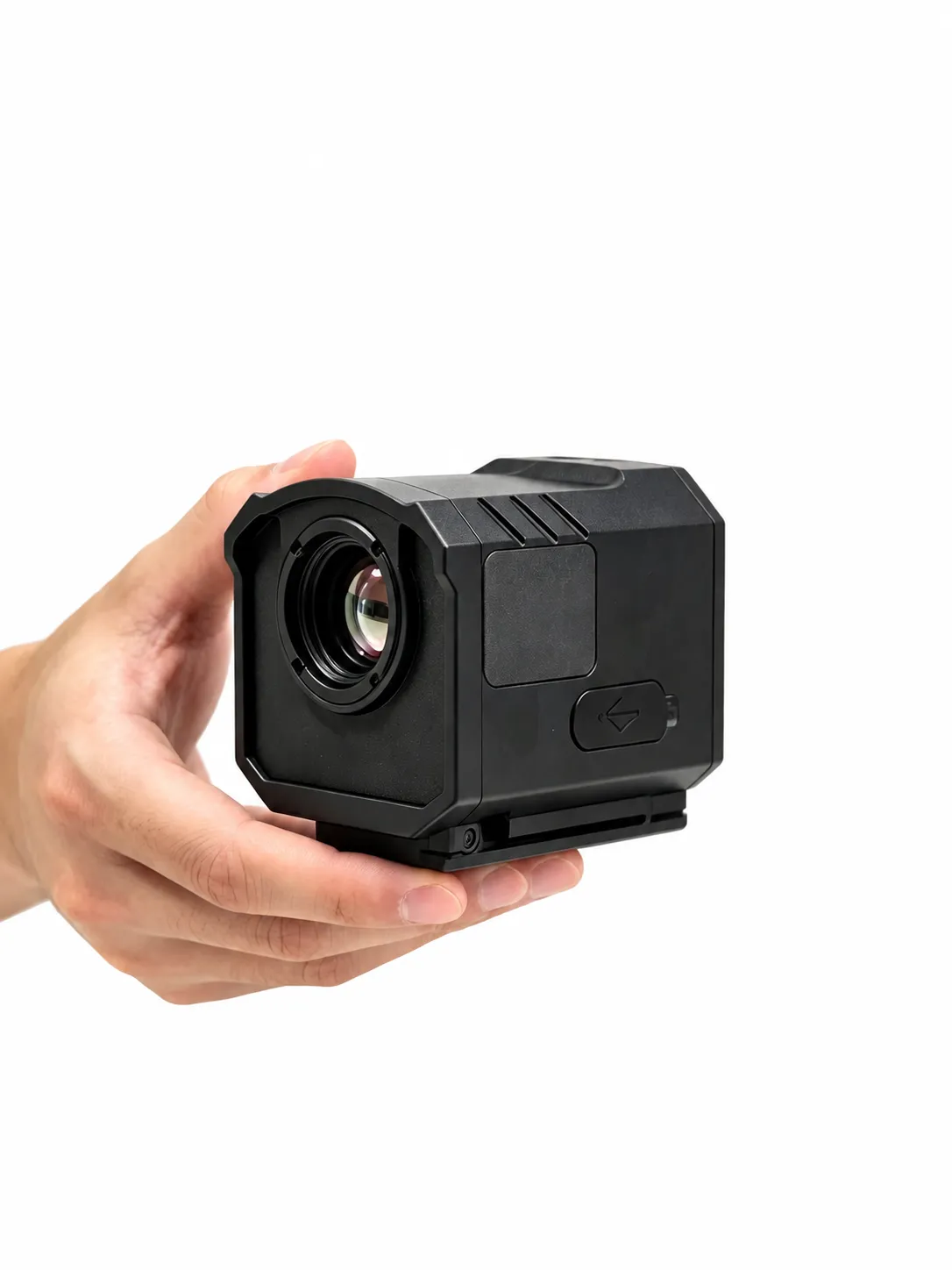

This product supports three flexible usage modes: handheld, helmet-mounted and rifle-mounted for all outdoor night missions. Equipped with 12μm uncooled FPA sensor and 13mm F0.9 lens, it delivers clear thermal images up to 700m with low NETD ≤20mK. The 1.43-inch touch OLED screen offers 4 color palettes and multi-mode FFC correction. Weighing only 115g and rated IP67, it has built-in 32GB storage for snapshots and recoil-activated video recording. It runs up to 5 hours via built-in battery and accepts external Type-C power, ideal for long-time all-scenario observation.
-
-
-
-
OEM
ODM
Effect Display

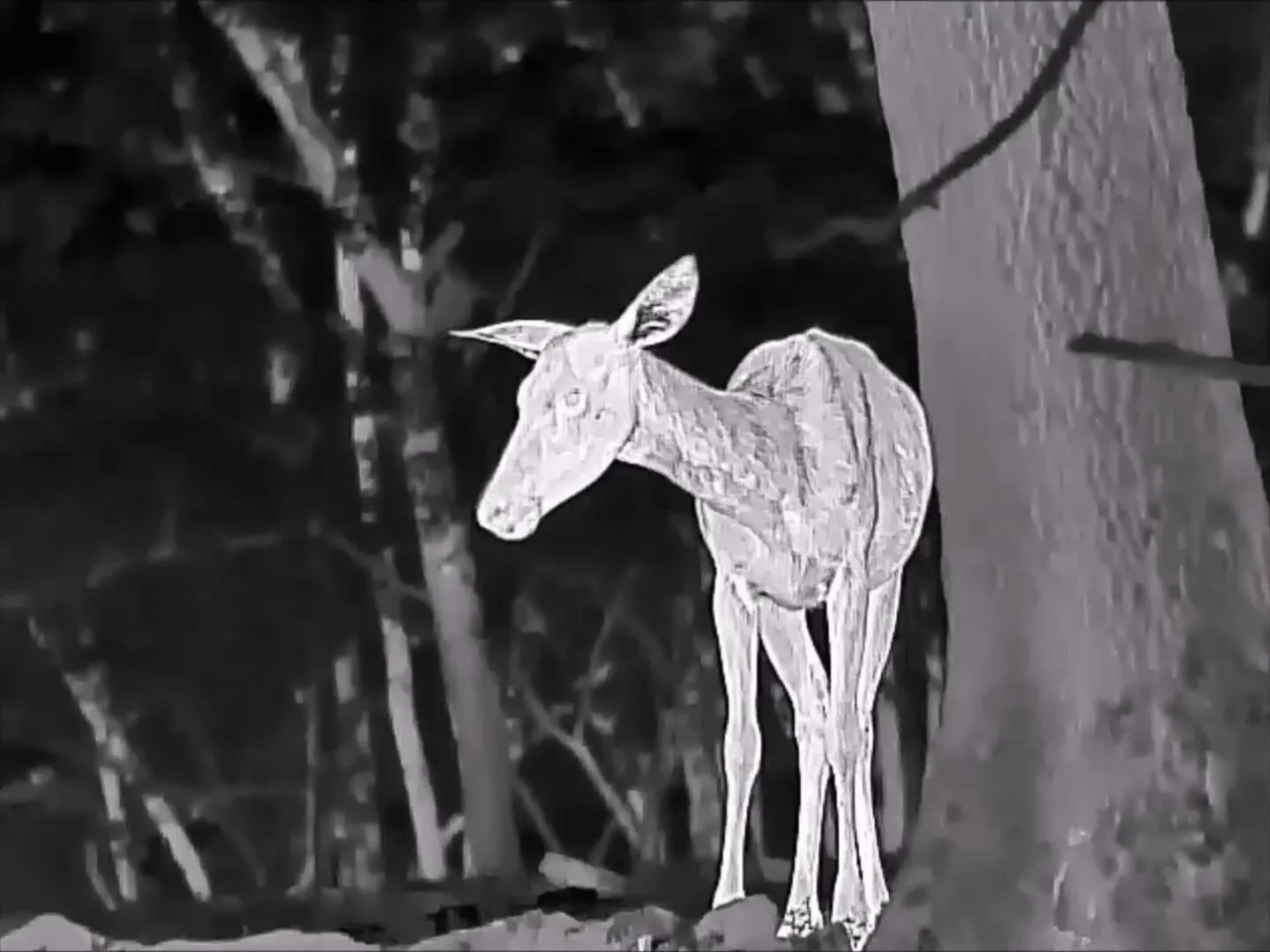

White Hot Thermal Imaging

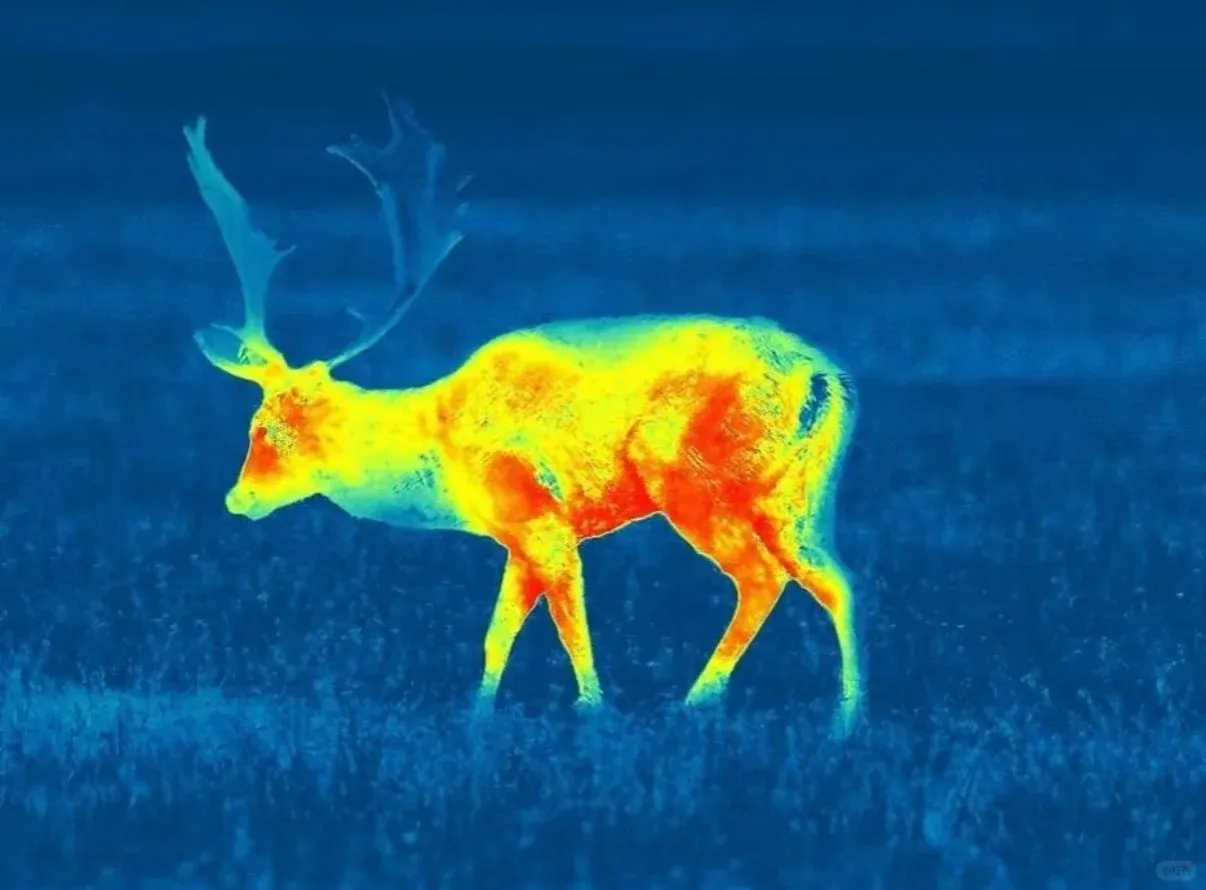

False Color Thermal Imaging
01
Compact High-Sensitivity Thermal Imaging Performance
Equipped with a 12μm uncooled FPA sensor, a 13mm F0.9 lens and ≤20mK NETD, the thermal imaging scope delivers clear and sensitive infrared images for accurate target observation in low-light and outdoor environments.
02
Multi-Mode Mounting & Reliable Outdoor Operation
Supporting handheld, helmet-mounted and rifle-mounted configurations, this lightweight thermal imaging scope features IP67 protection, built-in 32GB storage and up to 5 hours of continuous operation for versatile outdoor applications.
Core Specifications
| Parameter | JV-HTMA213 |
| Representative products |  |
| Image Sensor | Uncooled FPA |
| Max. Resolution | 256×192 |
| Frame Rate | 60Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | ≤20mK (25°C, F#=1.0) |
| Lens (Focal Length) | 13mm, F0.9 |
| Detection Range | 700m |
| Field of View (H×V) | 13.5°×10.1° |
| Min. Focusing Distance | 0.5m |
| Magnification | 0.5X-1X (2X) |
| Display | 1.43inch, 466×466, OLED |
| Touch Screen | Supports touch operations |
| Brightness Adjustment | Yes |
| Palettes | Black-hot, white-hot, red-hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Storage | Built-in EMMC (32GB) |
| Recoil-activation Recording | Yes |
| Max. Recoil | 1000g/0.4ms |
| Battery Operating Time | ≤5h (25°C) |
| Protection Level | IP67 |
| Weight | 115g |
| Dimension | 51mm×45mm×45mm |
| Working Temperature | -20°C to +50°C |
