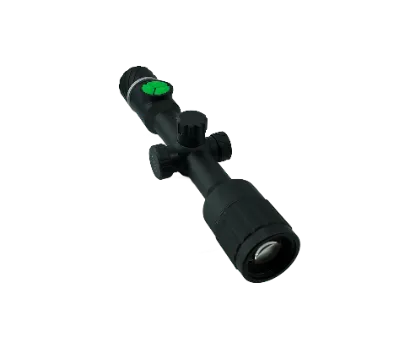

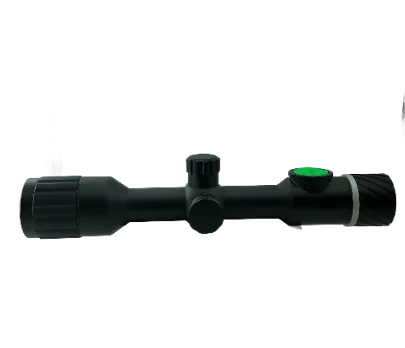

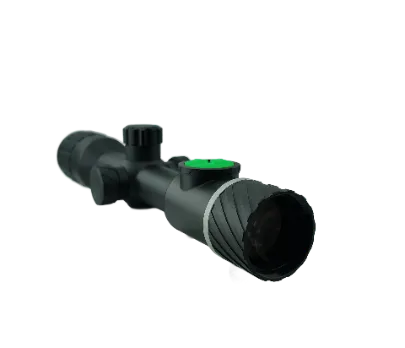

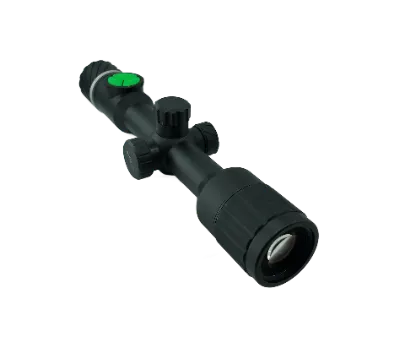

Monocular Night Vision Goggles with Low-Light Scope
The product adopts a lowlight imaging device to provide clear image for user in low-light envirinment. The product mainly used for hunting, expioration, law enforcement and security.Equipped with a highly sensitive micro-light imaging system and a continuously adjustable optical zoom structure, along with a standard universal mounting bracket, it can stably adapt to various observation platforms and outdoor equipment. The body is made of an integrated high-strength material, integrating magnification adjustment and focal length fine-tuning.
-
-
-
-
OEM
ODM
Effect Display

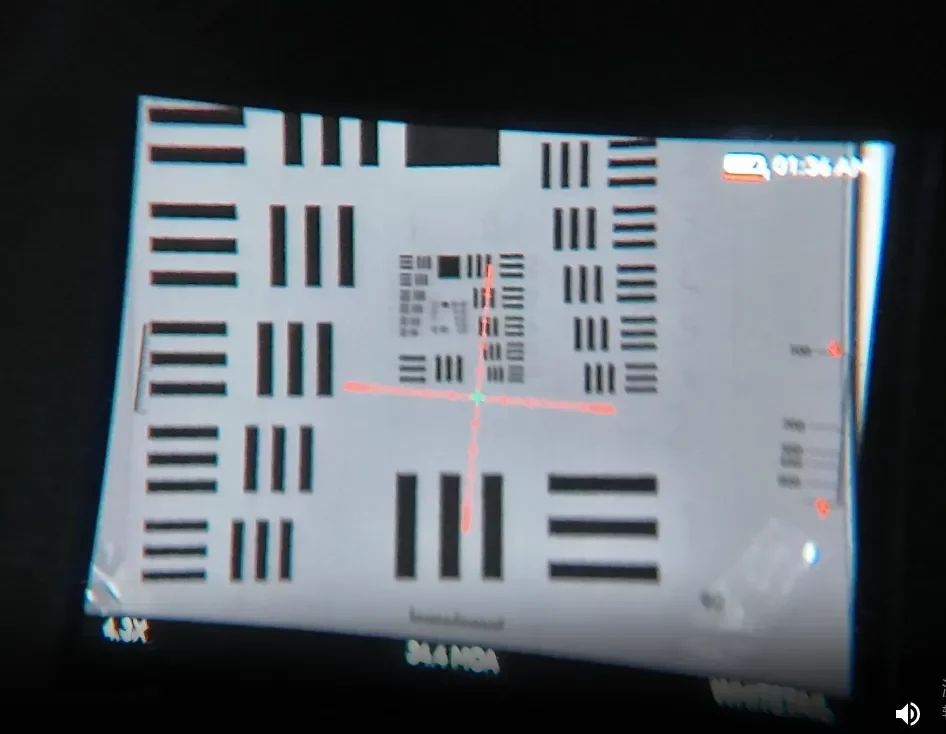

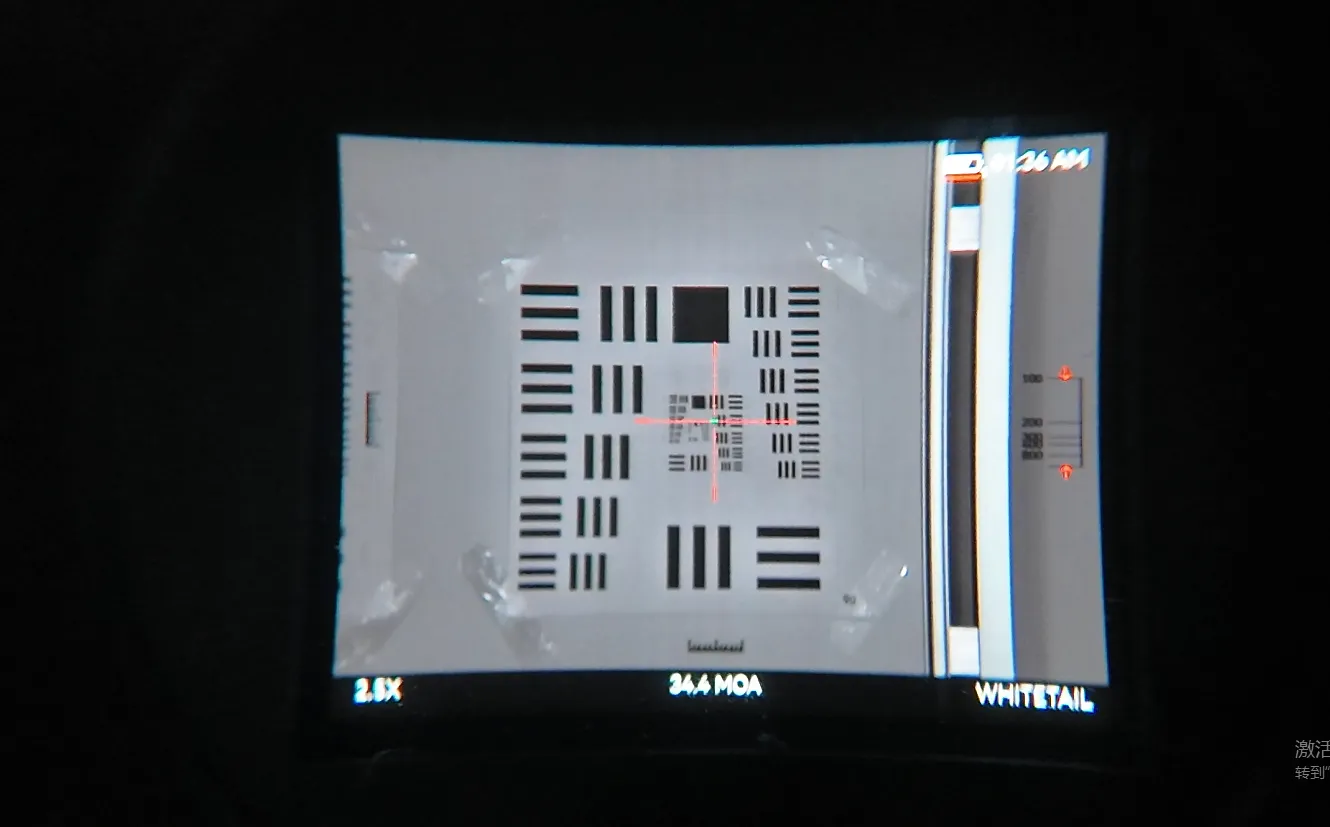

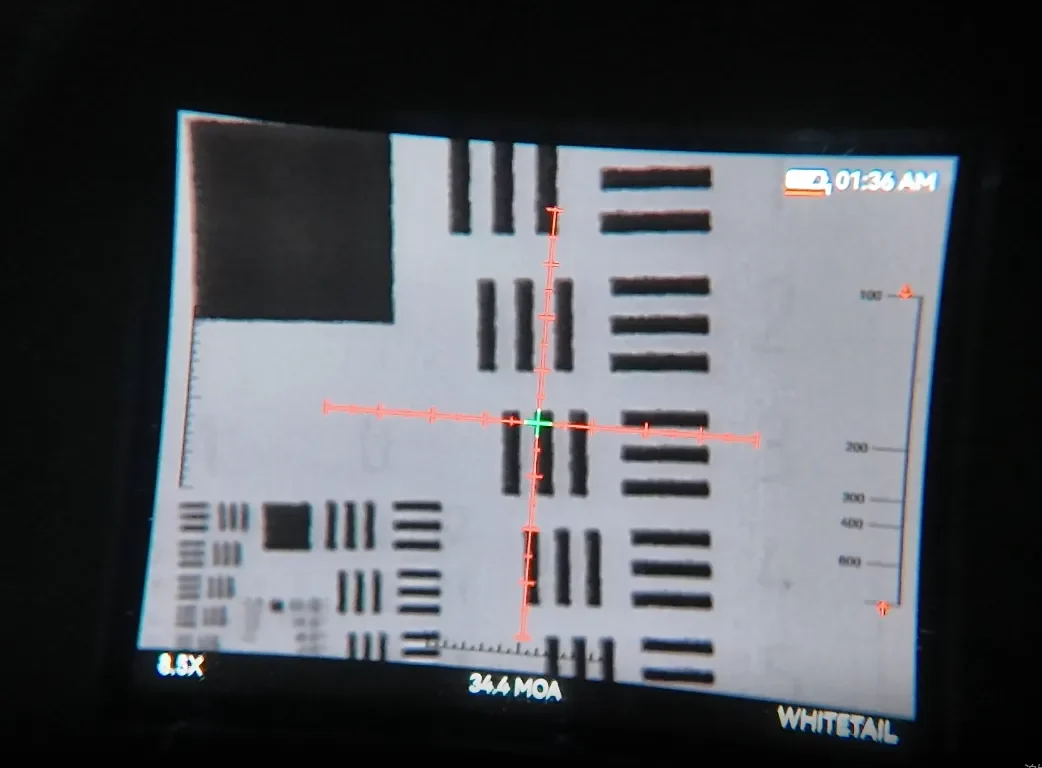

Night Vision Scope Imaging
Night Vision Scope Imaging
01
High-Resolution Low-Light Night Vision
Equipped with an 800×600 CMOS sensor and 1024×768 OLED display, the night vision scope delivers clear low-light imaging with 2.5X optical magnification, 1X/2X/3X digital zoom and a focus range from 10m to infinity.
02
Long-Range Observation & Wireless Imaging
Designed for day and night observation, the device supports moonless-night pedestrian recognition up to 500m, Wi-Fi image transmission, digital brightness adjustment, ≥6 hours of continuous operation and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVD104 |
| Representative products |  |
| Recognition distance | Without moon night, identify pedestrians target 500m |
| Magnification | Optical: 2.5X; Digital: 1X, 2X, 3X |
| FOV | ≥8° × 6° |
| Pupil distance | 50mm |
| Focus range | 10m ~ ∞ |
| Dioptre | -4SD ~ +3SD |
| CMOS Resolution | 800×600 |
| OLED resolution | 1024×768 |
| Impact | ≤0.5mil (1000G) |
| Power | 1 battery of 18650 and 1 battery of 18500 |
| Working time | ≥6h (Normal Temperature) |
| Waterproof | IP65 (IP67 Optional) |
| Working temperature | -40℃ ~ +55℃ |
| Weight | ≤900g |
| Size | 370mm × 75mm × 80mm |
