Class C
Image Intensifier Tubes

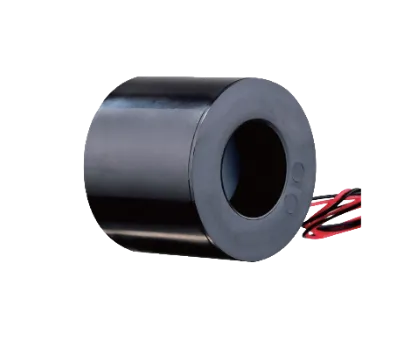

JV-IT24 Image Intensifier Tube
JV-IT24 series image intensifier tube adopts proximity focused electro-optical system and S25 + photoca-thode with extended red light response and magnification ratio of 1. The product has the functions of strong light source protection and polarity reversal protection, and has the advantages of small size, light weight and low power consumption.
-
-
-
-
OEM
ODM
Effect Display
Class B
Class A
01
Advanced Image Intensification Technology
JV-IT24 integrates a proximity-focused electro-optical system with S25+ photocathode technology to enhance available light and improve target visibility in low-light environments.
02
Flexible Performance Selection
JV-IT24 offers Class C, Class B and Class A configurations to meet different night vision requirements. Users can select suitable performance levels according to sensitivity, resolution and operating environment.
Core Specifications
| Parameter | Class C | Class B | Class A | Unit |
| Representative products |  |
|||
| Figure Of Merit | 1400 | 1600 | 1800 | — |
| Sensitivity (2856K) | 700 | 800 | 1000 | μA/lm |
| SNR | 23 | 25 | 28 | — |
| Resolution | 60 | 64 | 68 | lp/mm |
| High Light Resolution (200 lx) | — | 54 | 54 | lp/mm |
| Operating Voltage | 2.2–3.4 | 2.2–3.4 | 2.2–3.4 | V |
| Operating Current | 15 | 25 | 25 | mA |
| Luminance Gain | 8000–12000 | 8000–12000 | 10000–20000 | cd/m²/lx |
| Maximum Output Brightness | 4–8 | 4–8 | 4–10 | cd/m² |
| Working Illumination Range | / | 1×10⁻⁶–5×10⁴ | 1×10⁻⁶–5×10⁴ | lx |
| Uniformity of Luminance (2856K) | 3:01 | 3:01 | 3:01 | — |
| Cathode Effective Diameter | 17.5 | 17.5 | 17.5 | mm |
| Power Supply | Normal | Auto-gating | Auto-gating | — |
| Phosphor Powder | P43 | P43 | P43 | — |
| Weight | 80 | 80 | 80 | g |
| Power Consumption | 33–51 | 55–85 | 55–85 | mW |
