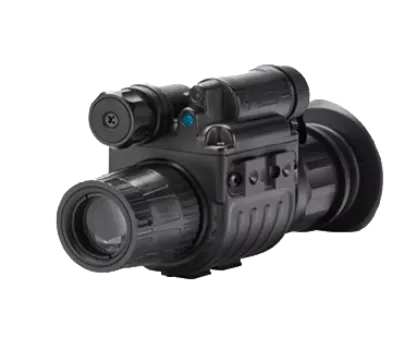

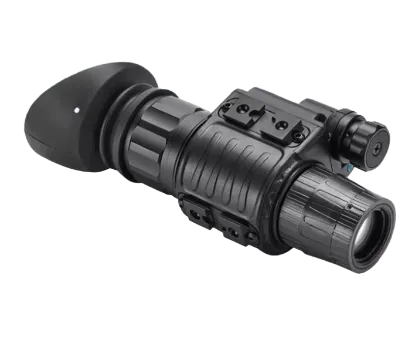

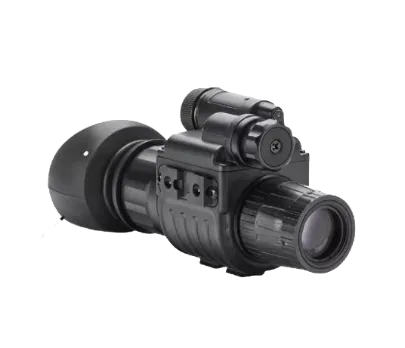

Monocular Night Vision Goggles
This is a monocular low-light night vision device featuring a state-of-the-art optical system. It comes with an ultra-large eyepiece aperture, ultra-long eye relief, sharp and clear imaging, and a wide field of view. Compact lightweight and easy to operate, it supports interchangeable objective lenses and magnifiers with different magnifications to adjust the zoom ratio. This night vision device is built with an infrared auxiliary illuminator and bright-light protection, delivering high practicality for a wide range of application scenarios.
-
-
-
-
OEM
ODM

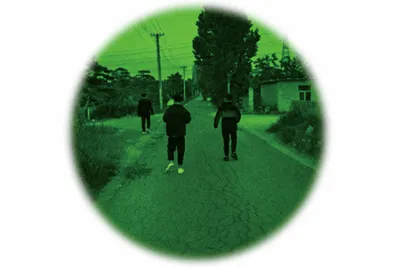

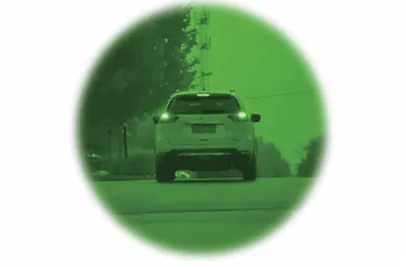

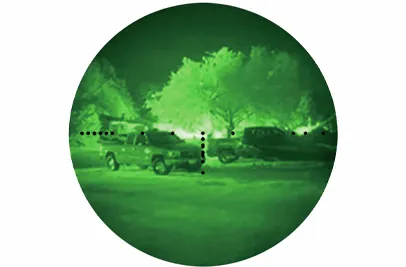

Effect Display
Green Tube Night Vision
Green Tube Night Vision
01
High-Performance Low-Light Night Vision
Supporting GEN2+ / GEN3 image intensifier options with FOM 1400–2200 and S/N 23–32, the monocular night vision device features an F1.2 25mm lens, 40° or 50° field of view and focus from 0.25m to infinity for clear low-light observation.
02

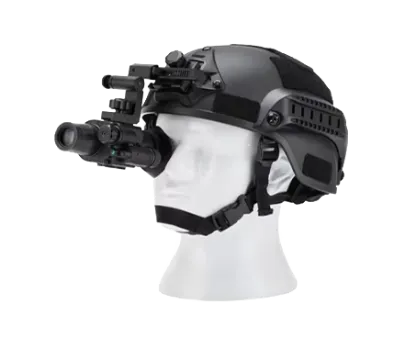

Lightweight Handheld & Helmet-Mounted Design
Weighing only 0.33kg, the compact night vision monocular supports both handheld and helmet-mounted use, built-in infrared assisted illumination, 1X magnification with optional 3X/4X/6X configurations, 60–100 hours battery life and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVM201 |
| Representative products |  |
| IIT | GEN2+ / GEN3 (Optional) |
| FOM | 1400–2200 |
| Magnification | 1X (3X / 4X / 6X Optional) |
| FOV deg | 40° or 50° |
| S/N db | 23–32 |
| Resolution | 60–72 |
| Diopter | -1 |
| Lens system | F1.2, 25mm |
| Range of Focus (m) | 0.25m to infinity |
| Dimensions (mm) | 112×75×50 |
| Weight (kg) | 0.33 |
| Battery Type (v) | CR123A |
| Battery Life (h) | 60–100 h |
| Operating Temperature (℃) | -51 to +49 |
| Environmental Rating | IP65 (IP67 Optional) |
