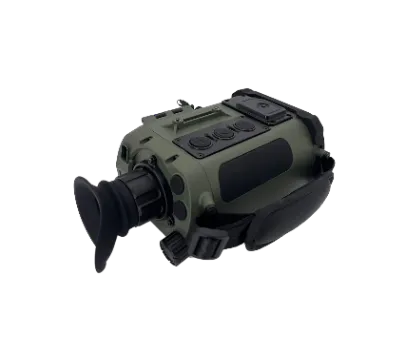

5.6 KM / 10 KM Laser Rangefinder
The JV-LRFM4/JV-LRFM8 is an intelligent portable handheld monocular laser rangefinder built-in low-light camera, laser ranging sensor, digital compass, GPS, display and central processor. It features precise single-target, continuous and multi-target relative ranging with data storage, applicable to day-night target detection, positioning, law enforcement recording and decision support.
-
-
-
-
OEM
ODM
Application Scenarios
Long-Range Laser Rangefinding
Target Geolocation & Map Positioning
01
Ultra-Long-Range Precision Laser Ranging
Equipped with a 1535±5 nm eye-safe laser, the JV-LRFM series delivers fast and precise ranging with ±1 m accuracy, 1–10 Hz measurement frequency and a ≥98% ranging success rate. The JV-LRFM4 supports large-target ranging ≥5.6 km, while the JV-LRFM8 extends the maximum range to ≥10 km for demanding long-distance observation.
02
Day & Night Observation with Multi-Sensor Positioning
Featuring a built-in 1920×1080 low-light camera and 3.3×~80× optical zoom, the system supports clear target observation in both daytime and low-light conditions. Integrated BeiDou/GPS/GLONASS positioning, automatic magnetic-declination correction and 0.5° RMS azimuth accuracy enable reliable ranging, positioning and directional measurement in complex field environments.
Core Specifications
| Parameters | JV-LRFM4 / JV-LRFM8 |
| Representative products |  |
| Visible Light Resolution | 1920×1080 |
| Image Sensor Size | 1/2.8 inch |
| Visible Field of View | 8.5°×4.8° ~ 0.35°×0.28° |
| Optical Zoom Magnification | 3.3× ~ 80× |
| Laser Eye Safety Class | Class 1 / 1 M |
| Laser Wavelength | 1535±5 nm |
| Max Range (6 m×6 m Large Target) | ≥5600 m / ≥10000 m |
| Max Range (2.3 m×2.3 m Vehicle Target) | ≥4800 m / ≥8000 m |
| Max Range (0.5 m×1.7 m Human Target) | ≥3200 m / ≥4500 m |
| Max Range (0.2 m×0.3 m UAV Target) | ≥1700 m / ≥2600 m |
| Minimum Measuring Distance | 50 m |
| Measurement Frequency | 1–10 Hz |
| Ranging Accuracy | ±1 m |
| Ranging Success Rate | ≥98% |
| False Alarm Rate | ≤1% |
| Positioning Mode | BeiDou / GPS / GLONASS Multi-mode |
| Azimuth Measurement Accuracy | 0.5° (RMS) |
| Continuous Working Time | ≥7 hours |
