Monochrome Low-Light Imaging
Night Vision Goggles

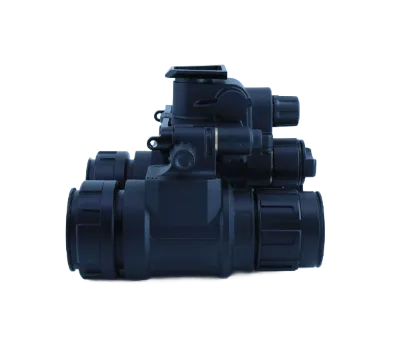

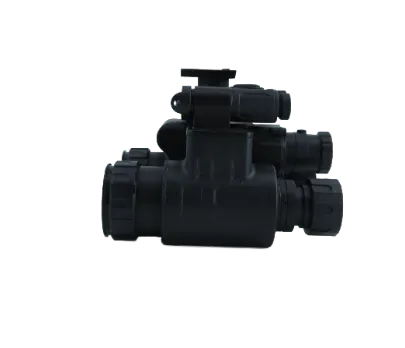

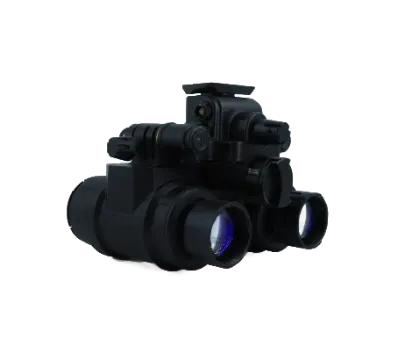

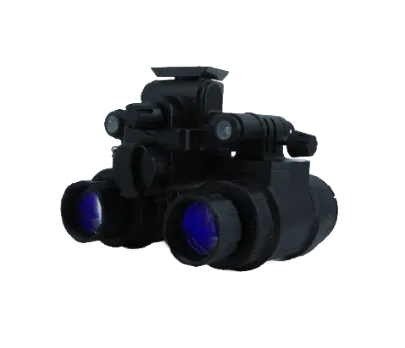

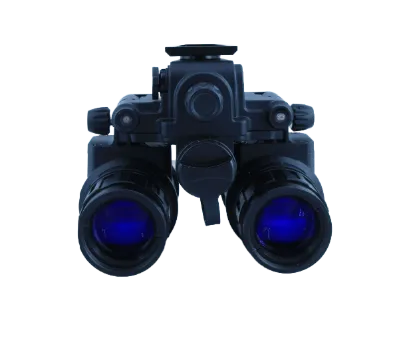

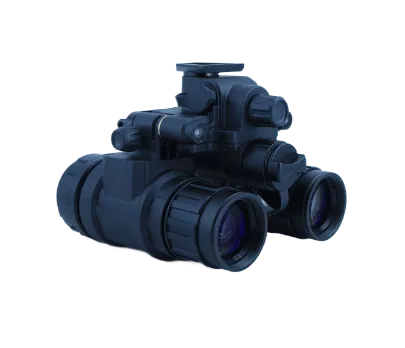

Binocular Fusion Night Vision Goggles (Digital)
This is a digital binocular fusion night-vision device. As an advanced observation instrument specially designed for nighttime and low-light environments, these binocular fusion night-vision goggles integrate binocular vision and image fusion technology to deliver a clear and natural night viewing experience. They are widely applicable to law enforcement, hunting, outdoor adventure and other scenarios. Adopting a dual-eye structural design, the goggles offer comfortable wearing experience and stable vision performance. Ergonomically optimized, they cause no fatigue even after long-term use.
-
-
-
-
OEM
ODM

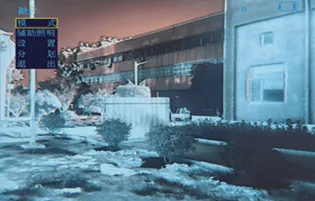

Effect Display

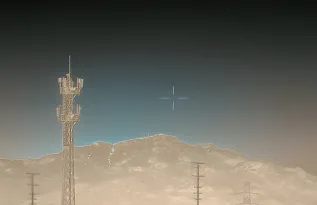

Infrared Thermal Imaging

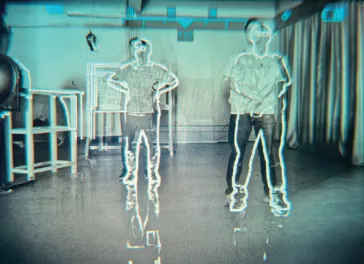

Thermal Edge Fusion
01
Dual-Spectrum Digital Fusion Imaging
Combining an 800×600 CMOS low-light sensor and a 640×480 infrared detector, this binocular night-vision system supports low-light, infrared and fusion observation modes. Under moonless conditions, the pedestrian recognition distance reaches at least 120 meters in low-light mode and at least 200 meters in infrared and fusion modes. Built-in contour enhancement effectively improves target visibility for accurate observation.
02
Wide-FOV Lightweight Binocular Observation
Featuring professional binocular vision, the device delivers a low-light field of view over 50° and an infrared field of view of 24°×18°. It supports 1× base magnification with optional 3× / 4× / 6× configurable magnification. Weighing a maximum of 440g, it provides over 6 hours of continuous working time with a focusing range from 250mm to infinity. It comes with standard IP65 protection and optional IP67 protection, fully adapting to harsh outdoor environments
Core Specifications
| Parameter | JV-DNV2105 |
| Representative products |  |
| Recognition distance | No moon, Low-light ≥120m; IR ≥200m; Fusion ≥200m (for person) |
| FOV | Low light ≥50°; IR ≥24°×18° |
| IIT | GEN2+ / GEN3 (Optional) |
| Magnification | 1X (3X/4X/6X Optional) |
| Endurance | ≥6h (Normal temperature) |
| Dioptre | -5SD ~ +3SD |
| IR resolution | 640×480 |
| CMOS resolution | 800×600 |
| OLED resolution | 800×600 |
| Power | 18650 battery |
| Focus range | 250mm ~ ∞ |
| Waterproof | IP65 (IP67 Optional) |
| Working temperature | -40℃ ~ +50℃ |
| Weight | ≤440g |
| Size | 120mm × 185mm × 70mm |
