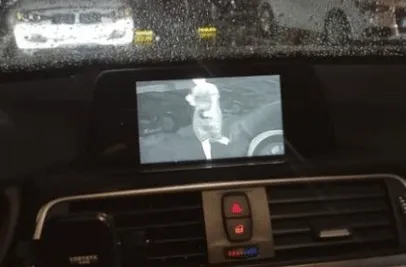

BMW 3Series
Vehicle-Mounted Thermal Cameras
Dedicated vehicle - thermal imaging night vision
The Vehicle-Specific Automotive Thermal Imaging Night Vision System combines far-infrared thermal imaging with AI recognition to help drivers detect pedestrians and vehicles in darkness and reduced visibility. It integrates with the vehicle’s original infotainment screen through a dedicated decoder, allowing a concealed installation. With a 3 TOPS AI processor, pedestrian recognition up to 80 meters, and three levels of visual and audible pedestrian warnings, it supports greater awareness of road hazards. An IP67-rated camera, automatic window defrosting, and GPS-based alert settings provide driving assistance for compatible fuel-powered passenger vehicles.
-
-
-
-
OEM
ODM
Effect Display
Mercedes-Benz GLE

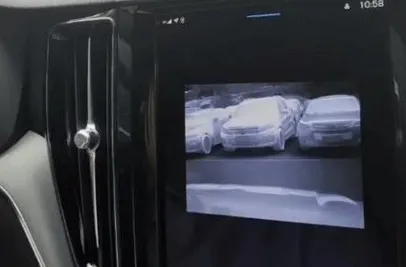

Volvo
01
AI Thermal Imaging Night Vision & Human/Vehicle Recognition
Equipped with a VOX thermal sensor and AI recognition algorithm, the system provides real-time thermal imaging for human and vehicle detection in low-light conditions. With 256×192 thermal resolution, 3 TOPS AI processing and real-time performance of up to 21 FPS, it supports reliable target recognition and early warning to enhance driving awareness and nighttime safety.
02

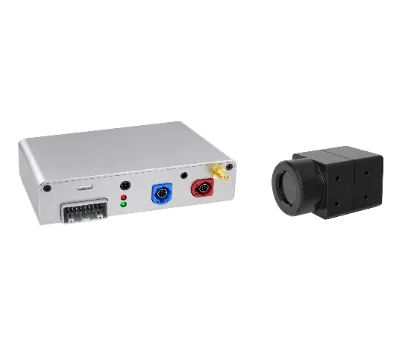

Dedicated-Decoder Integration & Compact Vehicle Installation

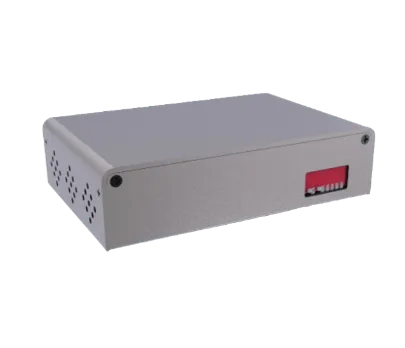

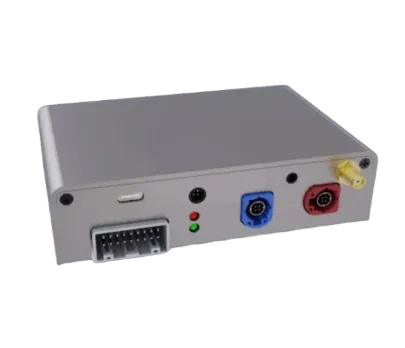

Designed for wide-range compatible vehicles, the system connects the thermal-imaging camera to the original car display via a dedicated LVDS decoder without replacing the factory screen. Featuring a compact thermal-imaging camera,low power consumption, it supports flexible installation for conventional fuel vehicles for an integrated and discreet driving-assistance solution.
Core Specifications
| Parameter | Specification |
| Representative products |  |
| Resolution | 256×192 / 348×288 / 640×512 |
| System | Linux |
| Focal Length | 10 mm |
| NPU | 3 TOPS |
| Protection Level | IP67 |
| Early Warning | External speaker |
| Window Defrosting | Supports |
| Identify Type | Human / Vehicle |

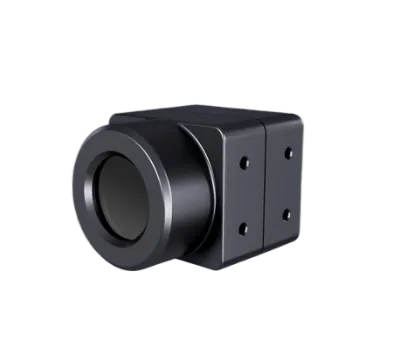

| Camera Size |
L40 × W30 × H26 mm |
| Adapted Vehicle Models | Conventional fuel vehicles, such as BMW, Audi, Mercedes-Benz, Volvo, Volkswagen, Porsche, Toyota, etc. |
