3× Optical Magnification
Red Dot Sights

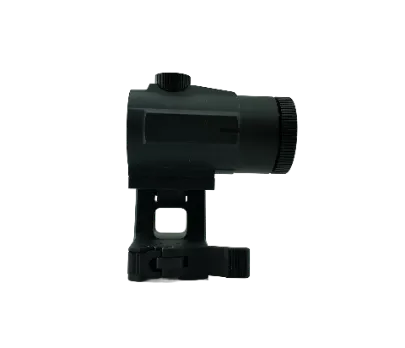

Triple Sight

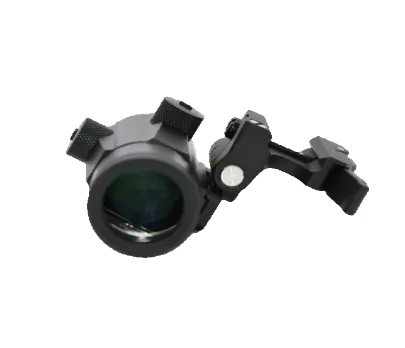

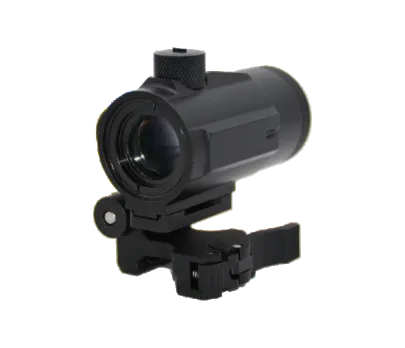

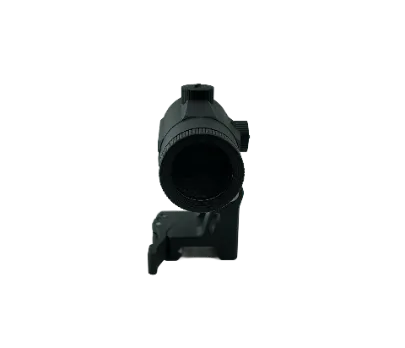

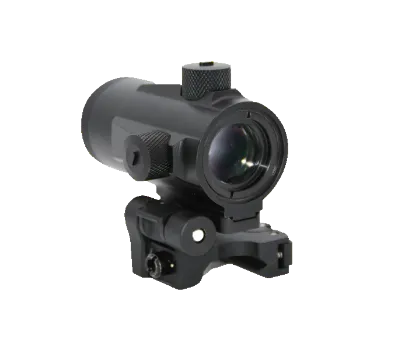

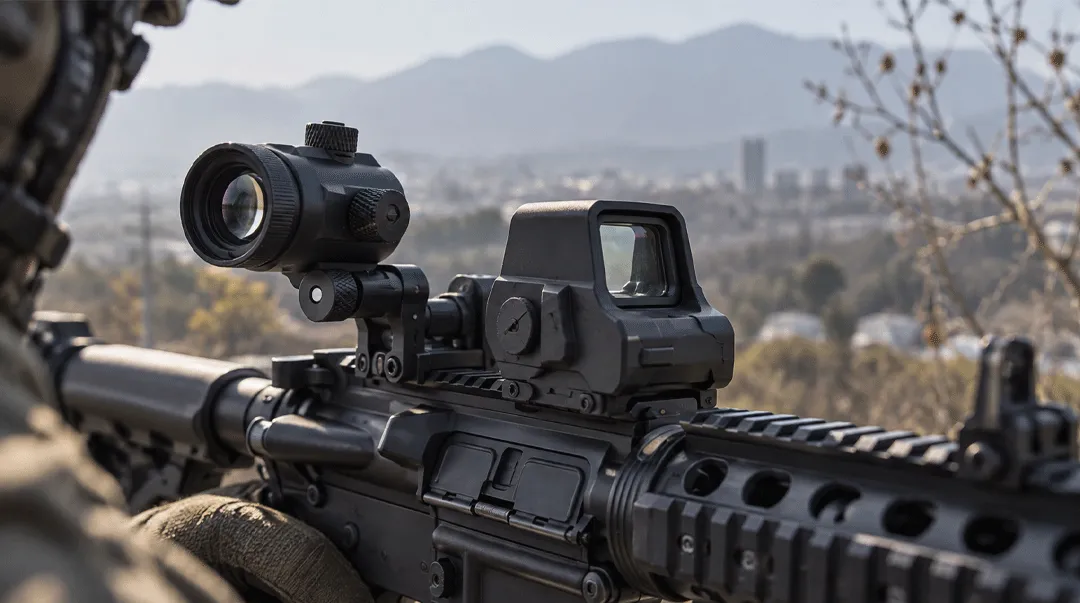

The JV-HTI625 3× tactical magnifier enables fast, precise close-quarters targeting for submachine guns, enhancing operator reaction speed and weapon combat performance. With clear optics, 60mm eye relief and diopter adjustment, it features a rugged 6061-T6 aluminum build, IP67 waterproofing, 1500g shock resistance and a side-flip Picatinny mount for wide compatibility, in a compact ≤300g lightweight design.
-
-
-
-
OEM
ODM
Effect Display

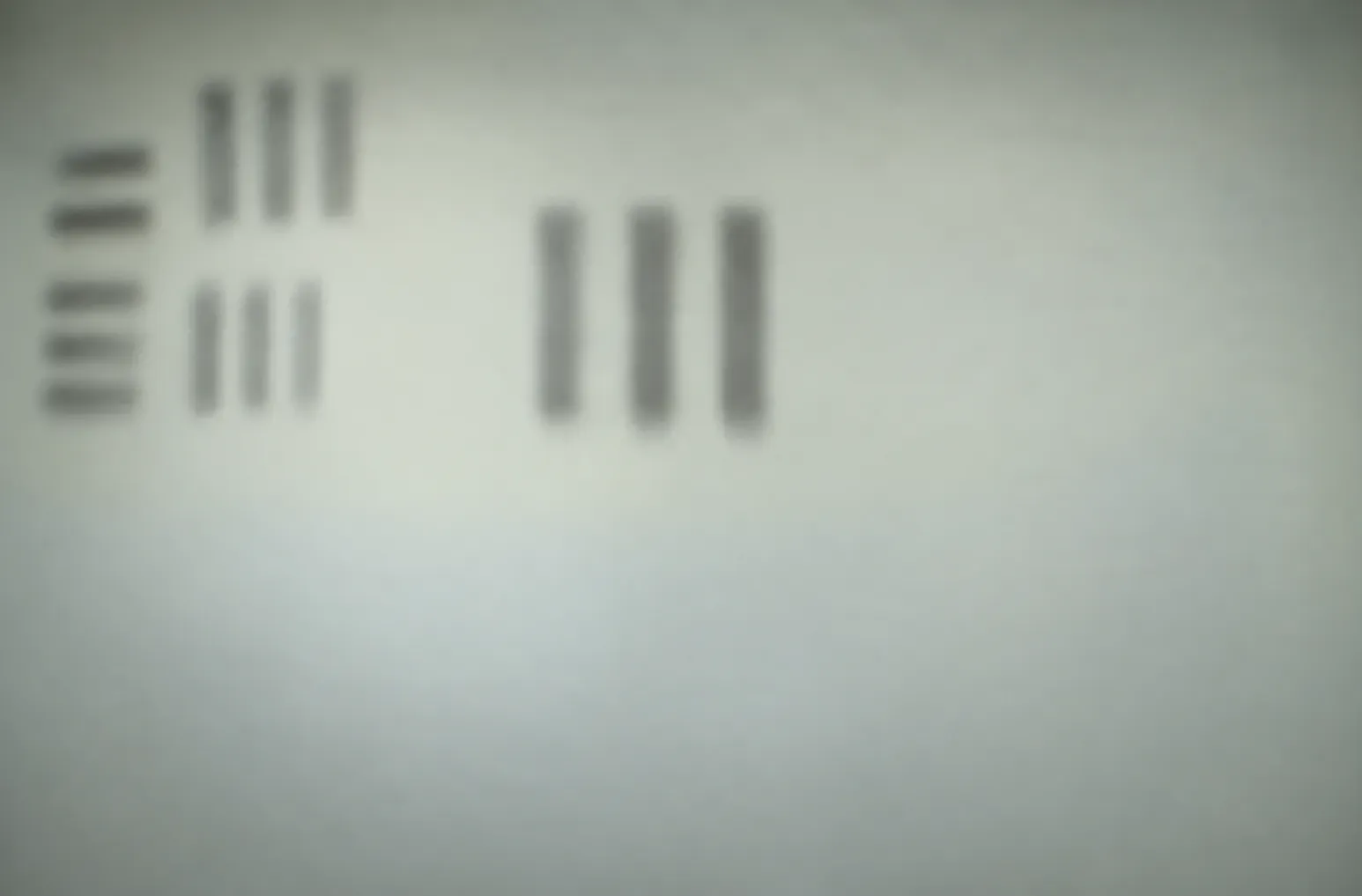

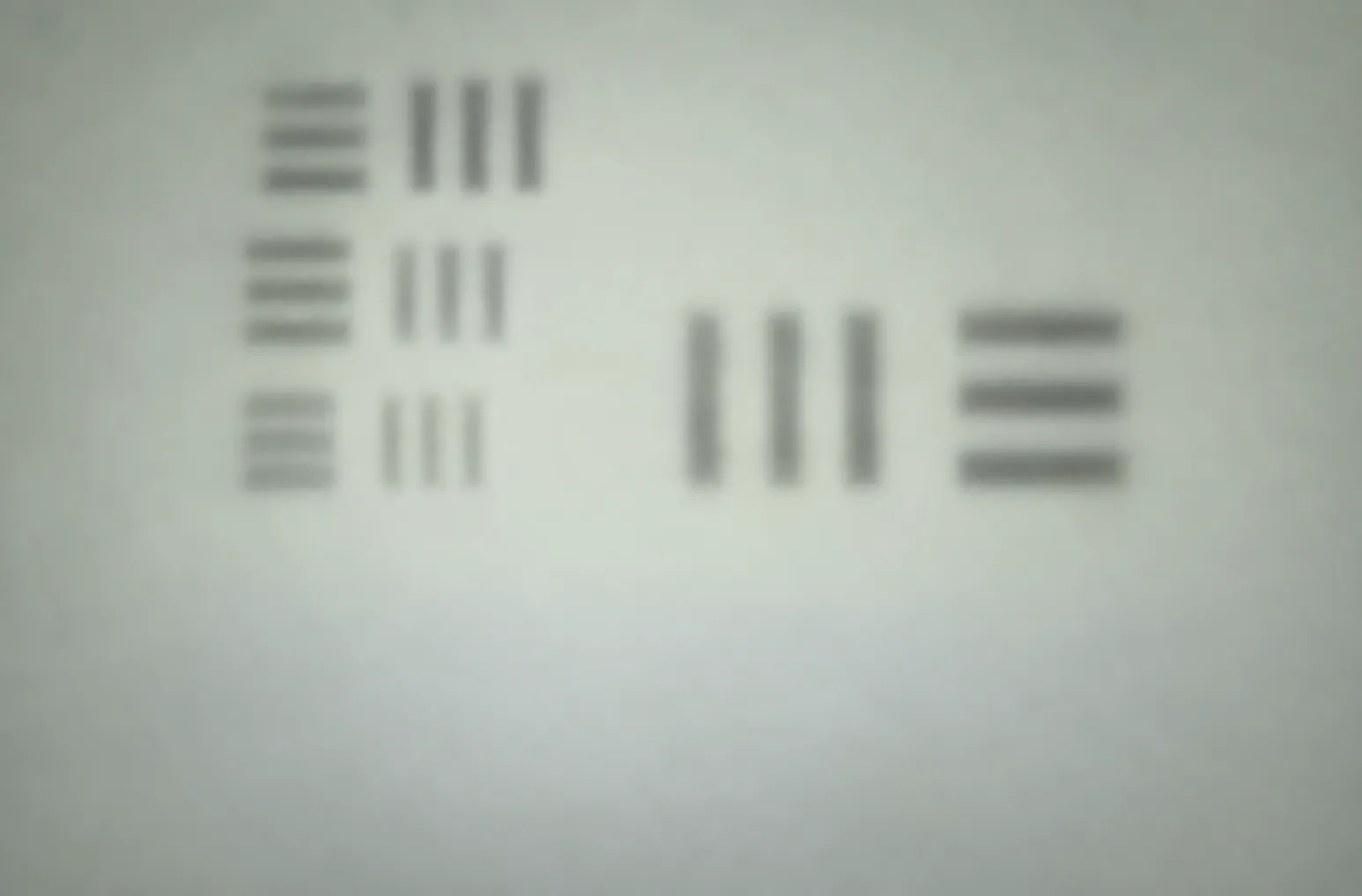

High-Resolution Optical Imaging
High-Resolution Optical Imaging
01
3× Optical Magnification & Clear Imaging
Featuring 3× magnification with a 20mm objective lens, the JV-TS-03 provides enhanced target detail while maintaining a clear and comfortable viewing experience. A 60mm eye relief, 6mm exit pupil and -4SD to +3SD diopter adjustment support precise focusing for different users and observation conditions.
02

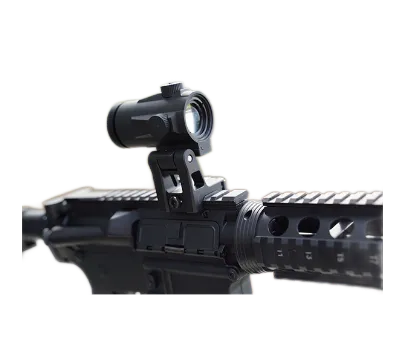

Flip-to-Side Mount & Rugged Field Design
Built with a 6061-T6 aluminum housing, the magnifier combines a lightweight design of ≤300g with 1500g impact resistance and IP67 waterproof protection. Its Picatinny-compatible flip-to-side mount allows fast switching between magnified and unmagnified viewing while maintaining convenient operation in demanding environments.
Core Specifications
| Parameter | JV-TS-03 |
| Representative products |  |
| Magnification | 3× |
| Housing Material | Aluminum 6061-T6 |
| Weight | ≤300g (Including Mounting Base and Battery) |
| Objective Lens | 20mm |
| Exit Pupil Distance | 60mm |
| Exit Pupil Diameter | 6mm |
| Diopter Range | -4SD ~ +3SD |
| Connector Type | Picatinny, can flip sideway |
| Waterproof | IP67 |
| Size | 75mm × 50mm × 95mm (Including Picatinny) |
| Impact | 1500g |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -55℃ ~ +75℃ |
