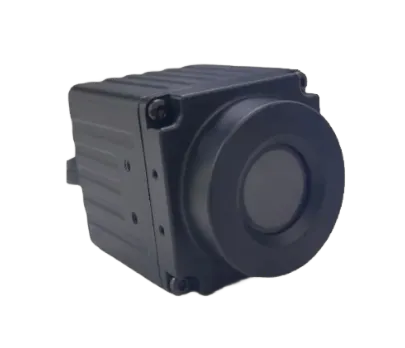

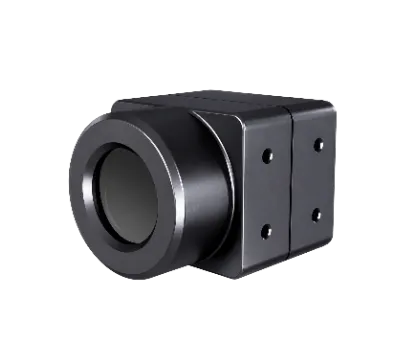

Vehicle-Mounted Thermal Cameras
Thermal camera for CarPlay
The Wired-CarPlay-Compatible Automotive Thermal Imaging Night Vision System combines infrared thermal imaging with AI recognition to improve visibility in darkness, glare, fog, smoke, and haze. It supports long-range road detection, pedestrian and vehicle recognition, and visual and audible collision warnings. With GPS support, an IP67-rated camera, and compatibility with passenger vehicles, it provides reliable driving assistance for nighttime and adverse weather conditions.
-
-
-
-
OEM
ODM

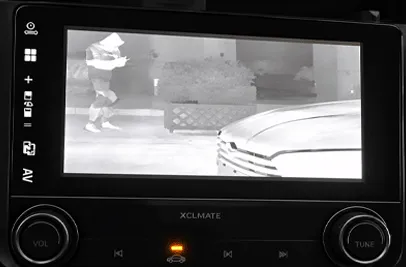

Effect Display

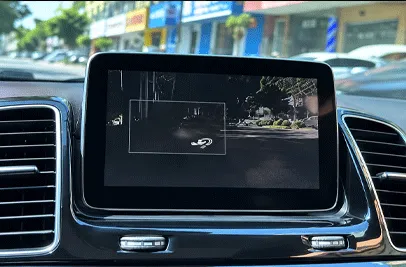

Merceds-Benz

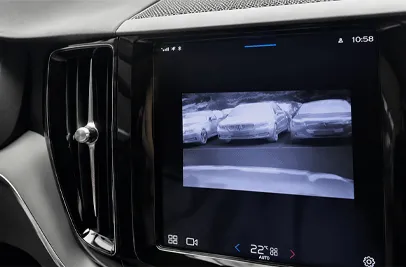

Volvo
01

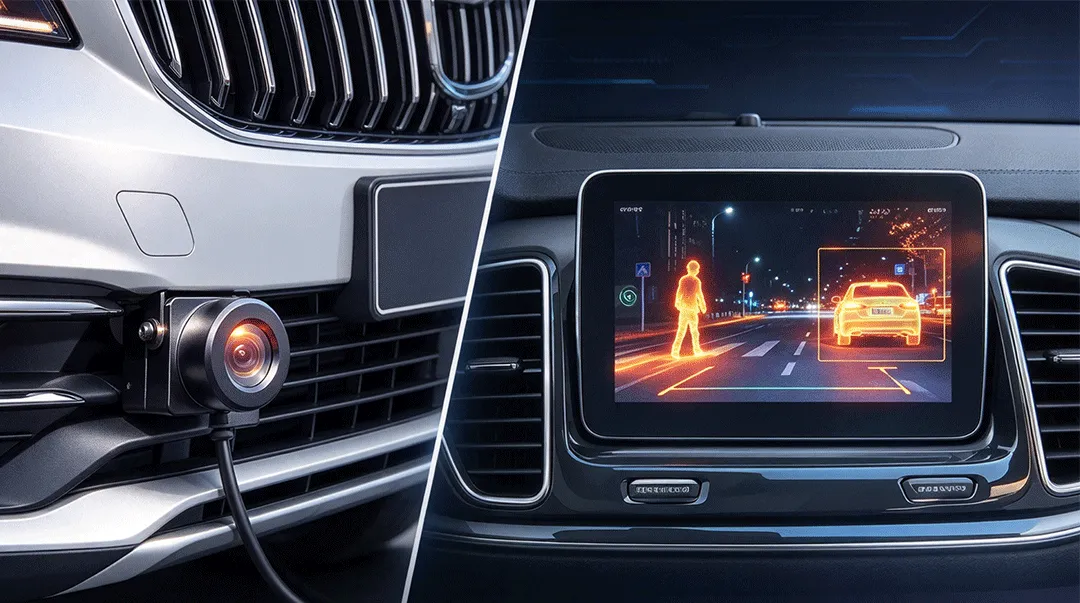

AI Thermal Imaging Night Vision for Safer Driving
Equipped with a VOX thermal sensor and AI recognition algorithm, the system provides real-time thermal imaging detection for humans and vehicles, achieving reliable night vision performance in low-light, foggy and complex road environments. With human and vehicle identification support, it helps enhance driving awareness and early warning capability.
02

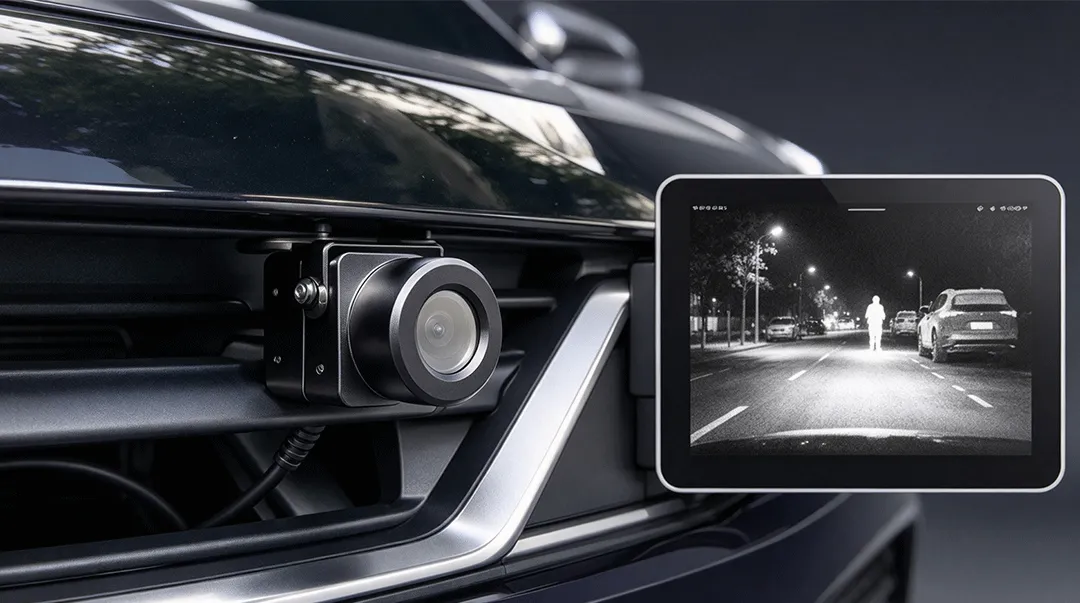

Seamless CarPlay Integration & Compact Vehicle Installation

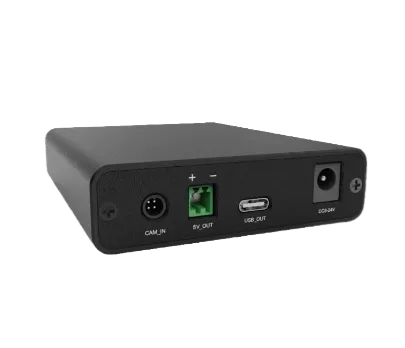

Designed for vehicles with wired CarPlay function, the system connects directly to the original car screen through USB output without replacing the factory display. Featuring a compact thermal camera, low power consumption and IP67 protection, it supports flexible installation on different vehicle models for an integrated driving assistance solution.
Core Specifications
| Model | A2C(256)/A3C(384)/A6C(640) |
| Product Name | Wired CarPlay Channel Dedicated Thermal Imaging Night Vision System |
| Representative products |  |
| Parameter | Specification |
| Thermal Sensor | |
| Sensor Type | VOX |
| Working Band | 8–14 μm |
| NETD | 40 mK @25℃, F#1.0 |
| Resolution | 256×192 / 384×288 / 640×512 |
| Pixel Size | 12 μm |
| Lens | |
| Focal Length | 9.1mm |
| Focus Mode | Thermal-free fixed focus lens |
| FOV | 18°×13° (256) / 29°×22° (384) / 48°×39° (640) |
| Detection Distance (H/V) | 859m / 1263m |
| Recognition Distance (H/V) | 214 m / 316 m |
| Frame Rate | 25 Hz (256) |
| Color Palettes | Detail enhancement, automatic shutter correction |
| Video Output | UVC |
| Other | |
| Lens Protection | High-strength protective window |
| Defrost | Support |
| Camera Power | 1 W |
| Working Temperature | -30~70℃ |
| Protection Level | Aluminum alloy shell sealing IP67 |
| Size | L 40×W 30×H 26 mm (256) / L 42×W 60×H 42 mm (384/640) |
| Weight | 60 g (256) / 185 g (384) |
| Parameter | Specification |
| System Performance | |
| System | Linux |
| Voltage | DC 9-36 V |
| NPU | 3 TOPS |
| Power | 5W |
| Identify Type | Human / Vehicle / Distance |
| Identification Rate | ≥95% |
| Real-time | ≥21 FPS |
| AI Recognition | Human (80 m); Vehicle (200 m) |
| Function | |
| Camera Interface | 4P BMW Head Interface |
| Camera Position | Outside the vehicle (thermal imaging cannot penetrate glass) |
| Video Output | USB (Type-C interface, without voltage output) |
| Startup Mode | Automatic / Manual (varies by model) |
| Early Warning Output | Built-in warning horn |
| Early Warning Type | Human |
| Applicable Vehicle Models | Models with wired CarPlay function |
| Other | |
| Working Temperature | -30~70℃ |
| Storage Temperature | -35~75℃ |
| Power Supply Method | Cigar lighter |
| Size | L 98×W 81×H 22 mm |
| Weight | About 160g |
