Vehicle-Mounted Thermal Cameras

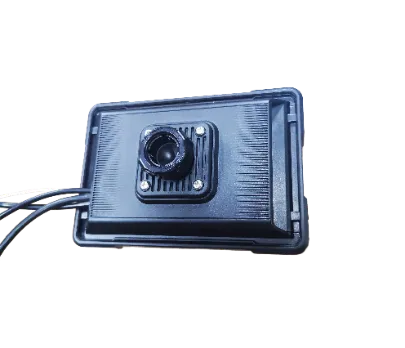

JV-ADS-S5 Thermal Imaging Night Vision
The JV-ADS-S5 Automotive Thermal Imaging Night Vision System combines far-infrared imaging with AI recognition of pedestrians, vehicles, and animals to assist driving in darkness and reduced visibility. Its 5-inch IPS touchscreen features a 1024 × 600 display, a 3 TOPS NPU, and 50 Hz imaging. The system supports video recording, seven color palettes, customizable alert zones, adjustable sensitivity, and audible warnings through a built-in speaker. Available with 256 × 192, 384 × 288, or 640 × 512 thermal cameras and multiple lens options, it offers flexible configurations for different monitoring needs. An IP66-rated main unit, IP67-rated camera, and DC 9–32 V power input support vehicle installation, with automatic window defrosting available on selected camera configurations.
-
-
-
-
OEM
ODM

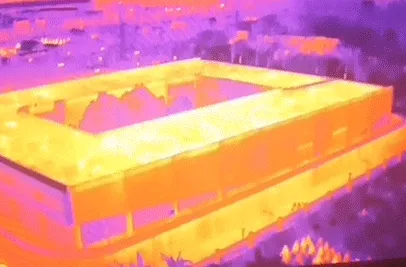

Effect Display

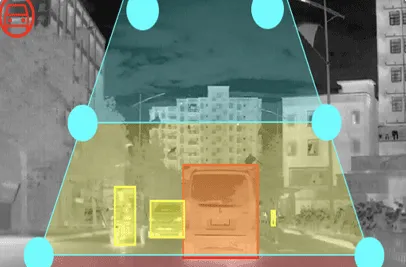

Custom alert zone

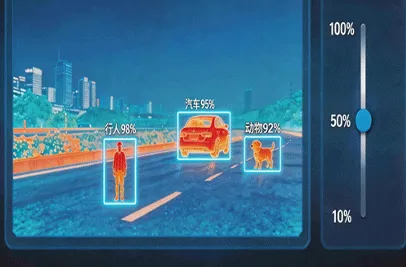

Adjustable sensitivity
01
AI Thermal Imaging Night Vision for Safer Driving
Equipped with a VOX thermal sensor and AI recognition technology, JV-ADS-S5 provides reliable thermal imaging for detecting pedestrians and vehicles in low-visibility conditions. By capturing heat signatures in real time, it helps enhance nighttime driving awareness and provides early warning of potential hazards.
02
3 TOPS AI Recognition & Intelligent Early Warning
Powered by a 3 TOPS NPU, JV-ADS-S5 supports intelligent recognition of pedestrians and vehicles. It supports pedestrian recognition within 80 m and vehicle recognition within 200 m, with an identification rate of ≥95%. Its distance-based early warning function can be linked to vehicle speed, helping drivers respond to potential hazards earlier.
Core Specifications
| Parameter | Specification |
| Product Image |  |
| Product Model | JV-ADS-S5 |
| Product Name | 5-inch Thermal Imaging Night Vision System (Second Generation) |
| Camera Specifications | Common Parameters |

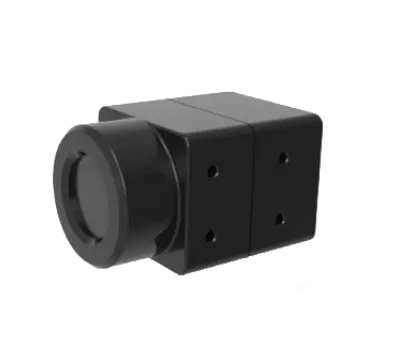

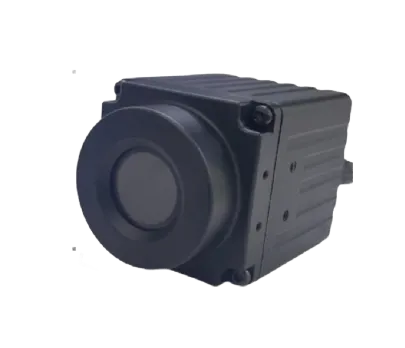

| Camera Model | HW-5710 |
| Sensor Type | VOx |
| Spectral Range | 8–14 μm |
| NETD | ≤40 mK @ 25°C, F/1.0 |
| Pixel Pitch | 12 μm |
| Image Processing | Detail enhancement; automatic shutter correction |
| Camera Option 1 | 256 × 192 / 1.5 mm Lens |
| Thermal Resolution | 256 × 192 |
| Focal Length | 1.5 mm |
| Field of View | 120° × 86° |
| Human Recognition Distance | 35 m |
| Vehicle Recognition Distance | 52 m |
| AI Human Recognition Distance | 15 m |
| AI Vehicle Recognition Distance | 30 m |
| AI Animal Recognition Distance | 10 m |
| Camera Dimensions | 35 × 40 × 35 mm |
| Window Defrosting | Not supported |
| Camera Option 2 | 256 × 192 / 4 mm Lens |
| Thermal Resolution | 256 × 192 |
| Focal Length | 4 mm |
| Field of View | 45° × 33° |
| Human Recognition Distance | 94 m |
| Vehicle Recognition Distance | 138 m |
| AI Human Recognition Distance | 60 m |
| AI Vehicle Recognition Distance | 100 m |
| AI Animal Recognition Distance | 40 m |
| Camera Dimensions | 40 × 30 × 26 mm |
| Window Defrosting | Supported |
| Camera Option 3 | 256 × 192 / 9.1 mm Lens |
| Thermal Resolution | 256 × 192 |
| Focal Length | 9.1 mm |
| Field of View | 18° × 13° |
| Human Recognition Distance | 236 m |
| Vehicle Recognition Distance | 347 m |
| AI Human Recognition Distance | 100 m |
| AI Vehicle Recognition Distance | 200 m |
| AI Animal Recognition Distance | 60 m |
| Camera Dimensions | 40 × 30 × 26 mm |
| Window Defrosting | Supported |
| Camera Option 4 | 384 × 288 / 9.1 mm Lens |
| Thermal Resolution | 384 × 288 |
| Focal Length | 9.1 mm |
| Field of View | 29° × 22° |
| Human Recognition Distance | 214 m |
| Vehicle Recognition Distance | 315 m |
| AI Human Recognition Distance | 100 m |
| AI Vehicle Recognition Distance | 200 m |
| AI Animal Recognition Distance | 60 m |
| Camera Dimensions | 42 × 60 × 42 mm |
| Window Defrosting | Supported |
| Camera Option 5 | 640 × 512 / 4.6 mm Lens |
| Thermal Resolution | 640 × 512 |
| Focal Length | 4.6 mm |
| Field of View | 95° × 76° |
| Human Recognition Distance | 108 m |
| Vehicle Recognition Distance | 159 m |
| AI Human Recognition Distance | 60 m |
| AI Vehicle Recognition Distance | 100 m |
| AI Animal Recognition Distance | 40 m |
| Camera Dimensions | 64 × 75 × 58 mm |
| Window Defrosting | Not supported |
| Camera Option 6 | 640 × 512 / 9.1 mm Lens |
| Thermal Resolution | 640 × 512 |
| Focal Length | 9.1 mm |
| Field of View | 48° × 39° |
| Human Recognition Distance | 214 m |
| Vehicle Recognition Distance | 315 m |
| AI Human Recognition Distance | 80 m |
| AI Vehicle Recognition Distance | 200 m |
| AI Animal Recognition Distance | 50 m |
| Camera Dimensions | 42 × 60 × 42 mm |
| Window Defrosting | Supported |
| Camera Option 7 | 640 × 512 / 13 mm Lens |
| Thermal Resolution | 640 × 512 |
| Focal Length | 13 mm |
| Field of View | 34° × 27° |
| Human Recognition Distance | 306 m |
| Vehicle Recognition Distance | 451 m |
| AI Human Recognition Distance | 100 m |
| AI Vehicle Recognition Distance | 200 m |
| AI Animal Recognition Distance | 60 m |
| Camera Dimensions | 42 × 60 × 42 mm |
| Window Defrosting | Supported |

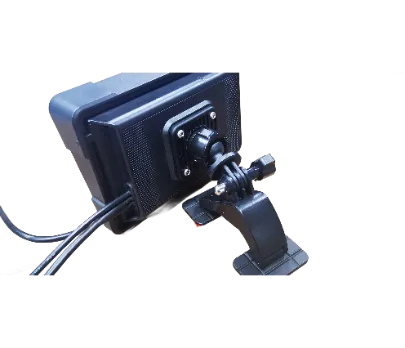

| Host Specifications | 5-inch / 7-inch Versions Listed in the Source |
| Display | 5-inch / 7-inch IPS display |
| Display Resolution | 1024 × 600 |
| Operating System | Linux |
| NPU Computing Power | 3 TOPS |
| Recognition Rate | ≥98% |
| Frame Rate | 50 Hz |
| Color Palettes | White Hot / Black Hot / Ironbow / Hot / Rainbow / Lava / Red Hot |
| Audible Warning | Built-in warning speaker |
| Alarm Signal Output | 3.3 V |
| Operating Temperature | −30°C to +70°C |
| Supply Voltage | DC 9–32 V |
| Power Consumption | 7 W |
| Host Dimensions (L × W × H) | 5-inch: 142 × 38 × 97 mm; 7-inch: 180 × 25 × 120 mm |
| Host Weight | 5-inch: 280 g; 7-inch: 420 g |
| Recognition Distance Conditions | Target Dimensions Specified in the Source |
| Pedestrian Height | >1.7 m |
| Vehicle Width | >2.3 m |
| Animal Height | >1.5 m |
