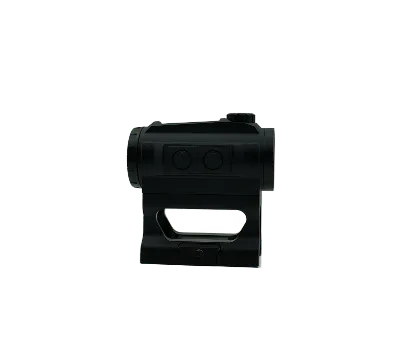

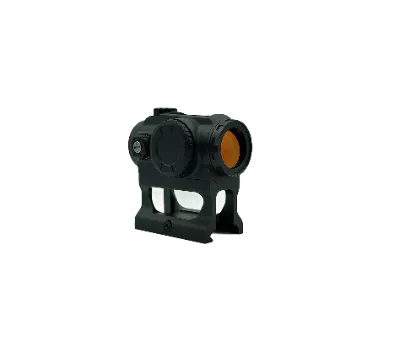

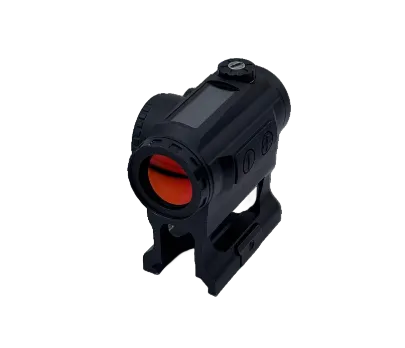

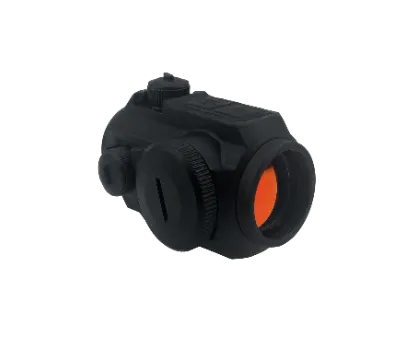

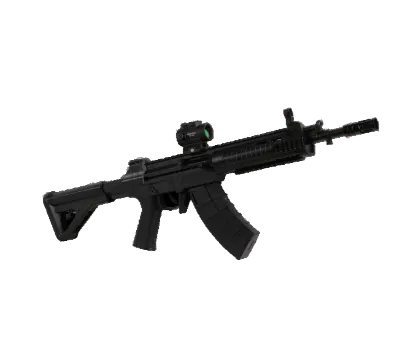

Red Dot Sight
The JV-RDS-01 1x red dot sight enables fast close-range target acquisition and precise aiming for tactical, hunting and recreational use. With ≥70% light transmission and 6 selectable dot-circle reticles, it features a rugged 6061-T6 aluminum housing, IP67 waterproof rating, 1000g shock resistance and low power consumption for consistent field reliability.
-
-
-
-
OEM
ODM
Effect Display
Red Laser Targeting
Laser & Reticle Alignment
01
Laser & Reticle Alignment
Featuring true 1× magnification, ≥70% light transmittance and an aperture diameter of ≥20mm, the JV-RDS-01 provides a clear and natural viewing experience for rapid target acquisition. Six selectable dot-circle reticle patterns, including a 1.0 MOA center dot and 30 MOA circle, offer flexible aiming options for different observation scenarios.
02
Lightweight Rugged Design & Reliable Zero Retention
Built from 6061-T6 aluminum alloy and weighing less than 150g, the sight combines compact dimensions with strong durability. It withstands impacts up to 1000g, provides IP67 waterproof protection and maintains repeatable clamping accuracy with zero-position variation of ≤1.8 MOA for dependable field use.
Core Specifications
| Parameter | JV-RDS-01 |
| Representative products |  |
| Magnification | 1× |
| Housing material | Aluminum 6061-T6 |
| Weight (g) | <150g |
| Parallax | ≤1MOA |
| Transmittance | ≥70% |
| Aperture Diameter | ≥20mm |
| Impact | 1000g |
| Zero Position Variation | ≤1.8MOA (Repeatable Clamping Accuracy) |
| Waterproof | IP67 |
| Aiming point size | Center point 1.0MOA, Circle 30MOA |
| Operating Temperature | -40℃ ~ +50℃ |
| Storage Temperature | -50℃ ~ +60℃ |
| Power Supply | CR2032 battery |
| Size | 70 × 43 × 70 mm |
| Reticle Pattern | Dot-circle reticle combination, six types |
