75mm Long Range Thermal Imaging Scope

Thermal Imaging Camera

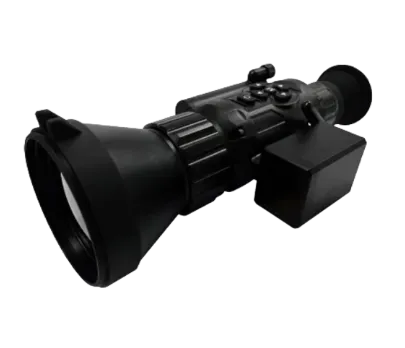

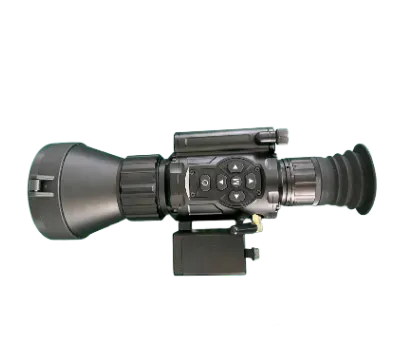

75 mm Monocular Thermal Imaging Scope

This product is a dedicated personnel reconnaissance target shooting night vision viewer. The product is equipped with an advanced 640*512 resolution detector, can provide high-quality high-resolution infrared images, detecting in total darkness, fog, haze and fireworks can be used for man-night observation, finding the target. By changing different adaptive adapters, it can be used in conjunction with a variety of sighting equipment, shooting equipment, observation equipment. It can be as all types of light weapons,telescopic sights, also be used as hand-held observation for night reconnaissance, search target. The system has excellent IP67 waterproof and dustproof performance, light weight, shock-resistant, anti-interference, can be used in all weather conditions.

  • CE
  • FC
  • ISO
  • OEM
    ODM

Effect Display

Infrared Thermal Imaging
Infrared Thermal Imaging
Infrared Thermal Imaging
01

High-Resolution Infrared Thermal Imaging

Equipped with an uncooled infrared sensor with 640×512 resolution, 8-14μm spectral range and ≤30mK NETD, the thermal imaging camera provides clear thermal images for accurate target detection in low-light and harsh environments.

02

Ultra-Long Range Target Detection

Featuring a 75mm focal length, digital 2X/4X/8X zoom and 1km laser rangefinder, the thermal imaging camera enables precise observation and measurement with a recognition distance of up to 2.8km for animals.

Core Specifications

Parameter JV-TSR675
Representative products
Recognition distance 2.8km for animals
Detector Uncooled sensor Resolution 640×512
FOV 5.9°×4.7°
Spectral range 8–14μm
NETD ≤30mK
Frame rate 50Hz
Focal length 75mm
Zoom Digital zoom: 2X/4X/8X
Reticle 6 type
Diopter adjustment -5 to +5 dpt
Laser rangefinder 1km (±2m)

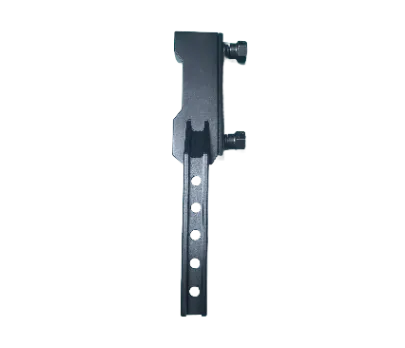

Weapon mount type Picatinny, MIL-STD 1913
Display 1024×768 OLED
Start up ≤3 seconds
Pitch angle Support
Slant angle Support
Compass Support
WIFI Support
Battery type Li-Ion battery 18650, rechargeable
Operating time 6–8 hours continuous operation
Working temp. -40℃–+60℃
Shock 1200G/1ms
