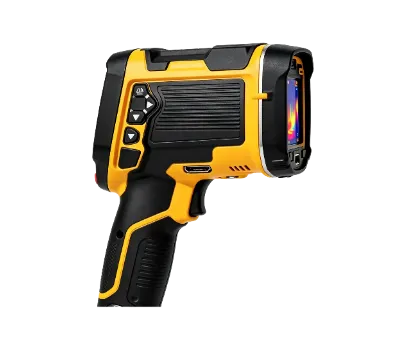

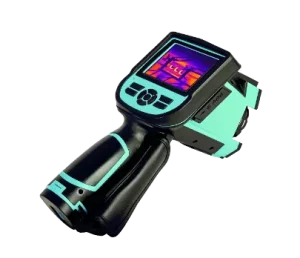

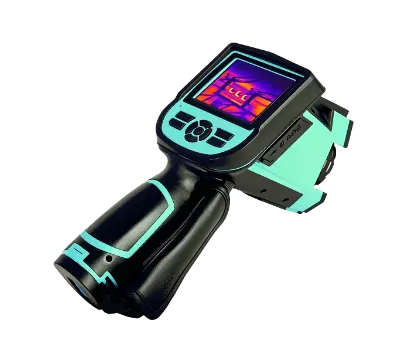

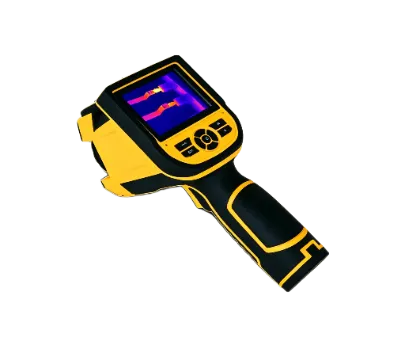

JV-HTCTIII3101/3103 Thermal Imaging Thermometer

Thermal Imaging Camera

Thermal Imaging Thermometer

This product is a dedicated man reconnaissance target shooting night vision viewer. The product is equipped with an advanced 640*512 resolution detector, can provide high-quality high-resolution infrared images, detecting in total darkness, fog and haze fireworks and can be used for man-night observation, finding the target. By changing different connection support, it can be used in conjunction with a variety of sighting equipment, shooting equipment, observation equipment. It can be as all types of light weapons,telescopic sight, also be used as handheld observation for night reconnaissance, search target.

OEM
ODM

Effect Display

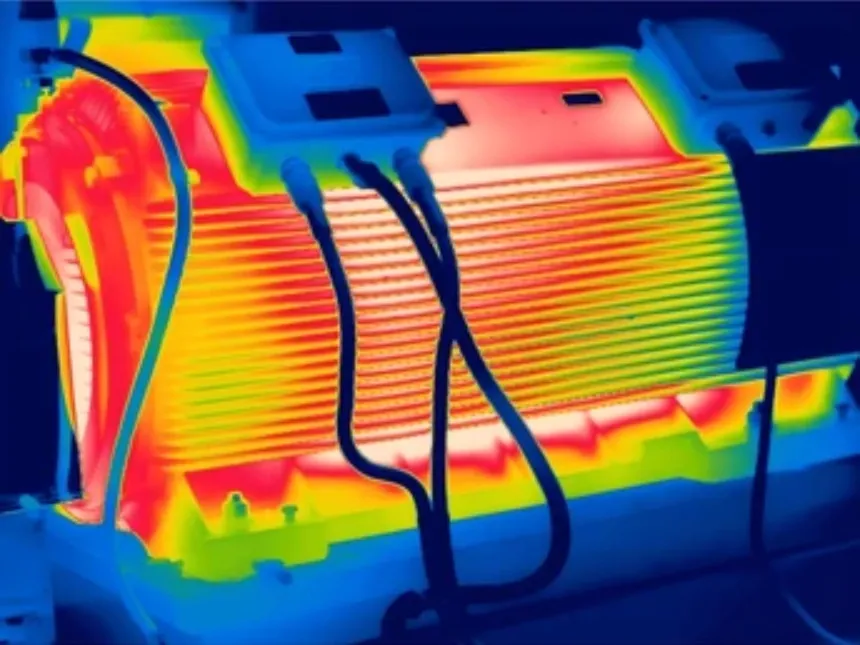

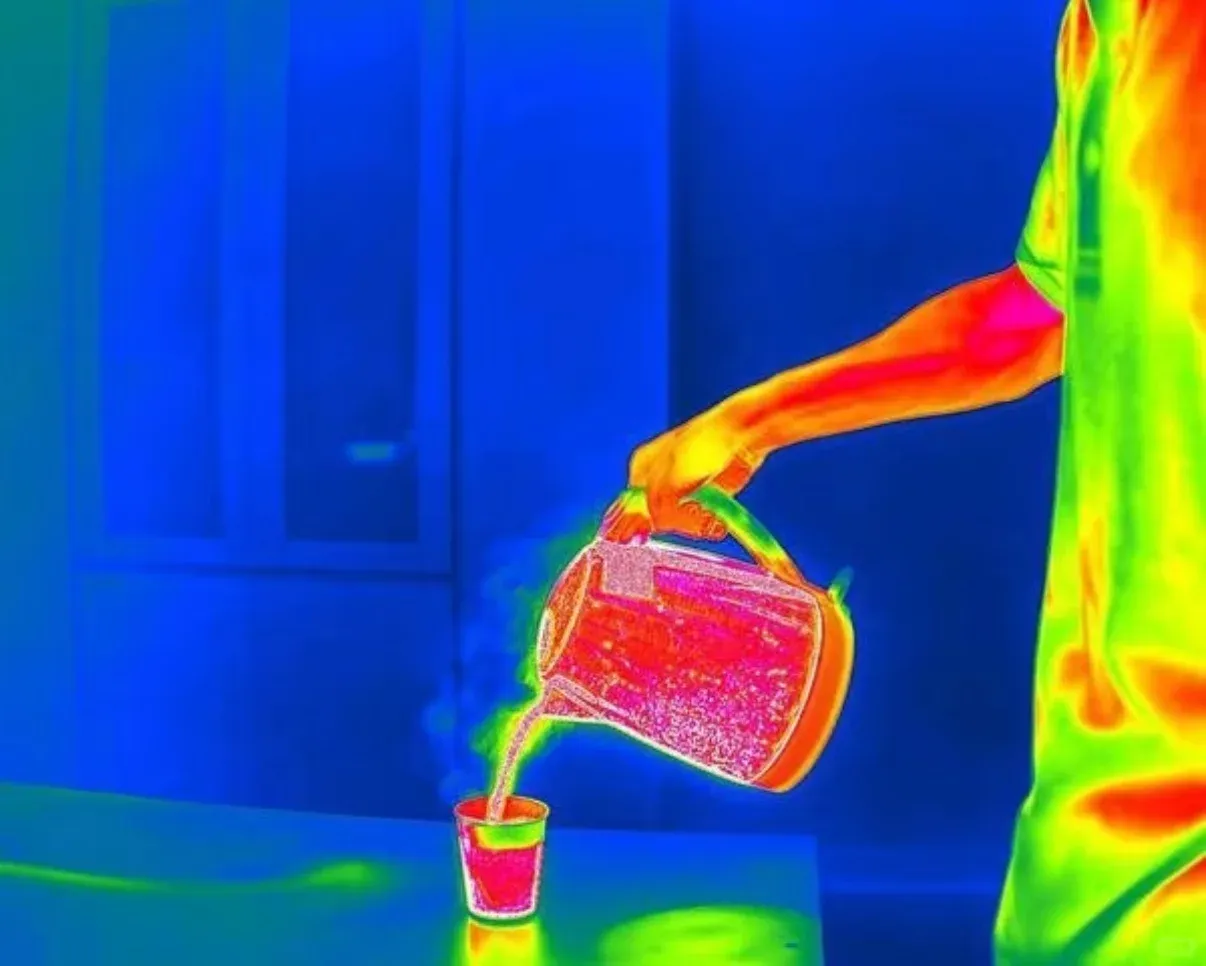

Infrared Thermal Imaging

High-Sensitivity Thermal Imaging & Temperature Measurement

Equipped with an uncooled FPA micro-bolometer with 160×120 or 384×288 resolution, 8–14μm spectral range and thermal sensitivity down to ≤0.05°C@30°C, the series supports temperature measurement from -20°C up to 650°C, with extended ranges up to 1200°C depending on the model.

Rugged Visual Inspection & Smart Data Recording

Featuring a built-in 3.2-megapixel visual camera, 3.5-inch 640×480 TFT LCD, JPEG storage with voice annotation and a red laser locator, the thermal imager also provides 2m drop resistance, IP54 protection and 4 hours of continuous operation for reliable field inspection.

Core Specifications

Parameter	JV-HTCTIII3101	JV-HTCTIII3103
Representative Products
Detector Type	Uncooled FPA microbolometer	Uncooled FPA microbolometer
Array Size / Format	160 × 120	384 × 288
Field of View / Min. Focus Distance	25° × 19° / 0.1 m	25° × 19° / 0.1 m
Spatial Resolution (IFOV)	2.72 mrad	1.36 mrad
Thermal Sensitivity	≤0.06℃ @ 30℃	≤0.05℃ @ 30℃
Frame Frequency	50 / 60 Hz	50 / 60 Hz
Focus	Manual	Manual
Spectral Range	8–14 μm	8–14 μm
Built-in Visual Camera	3.2 million pixels, CMOS	3.2 million pixels, CMOS
LCD	3.5″ TFT LCD, 640 × 480	3.5″ TFT LCD, 640 × 480
Temperature Range	-20℃ to +350℃, expandable to 650℃	-20℃ to +650℃, expandable to 1200℃
Accuracy	±2℃ or ±2% of reading, whichever is greater	±2℃ or ±2% of reading, whichever is greater
Laser Locator	Class 2, 1 mW / 635 nm, red	Class 2, 1 mW / 635 nm, red
Battery Operating Time	4 hours continuous operation	4 hours continuous operation
Working Temperature	-15℃ to +50℃	-15℃ to +50℃
Storage Temperature	-40℃ to +70℃	-40℃ to +70℃
Humidity	≤95% non-condensing	≤95% non-condensing
Protection Rating	IP54	IP54
Drop Resistance	2 m	2 m
Weight	0.98 kg	0.98 kg
Dimensions	230 × 105 × 245 mm	230 × 105 × 245 mm
