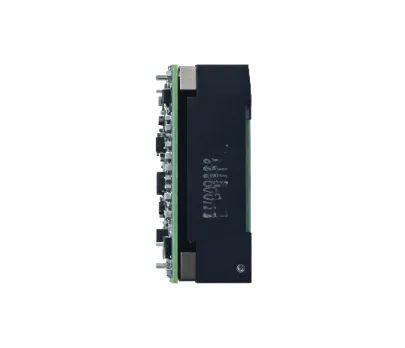

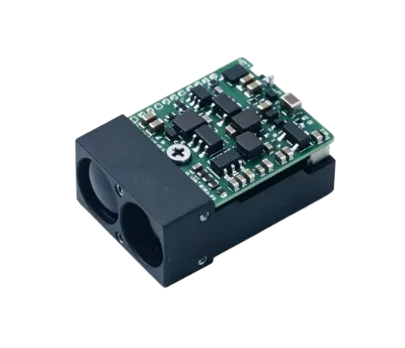

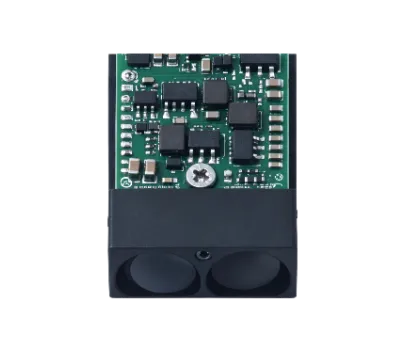

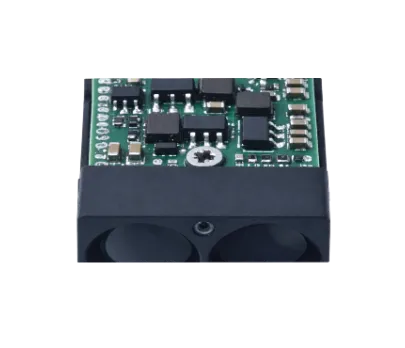

2 KM Laser Rangefinder Module
JV-LRF902BD is an ultra-thin Class 1 eye-safe laser ranging module with 905nm laser, supporting day & night long-distance measurement. Compact, low-power and easy to embed, It Is Widely Applied To security monitoring, Engineering Surveying, warehouse anti-collision, handheld observation and industrial detection.
-
-
-
-
OEM
ODM
Application Scenarios

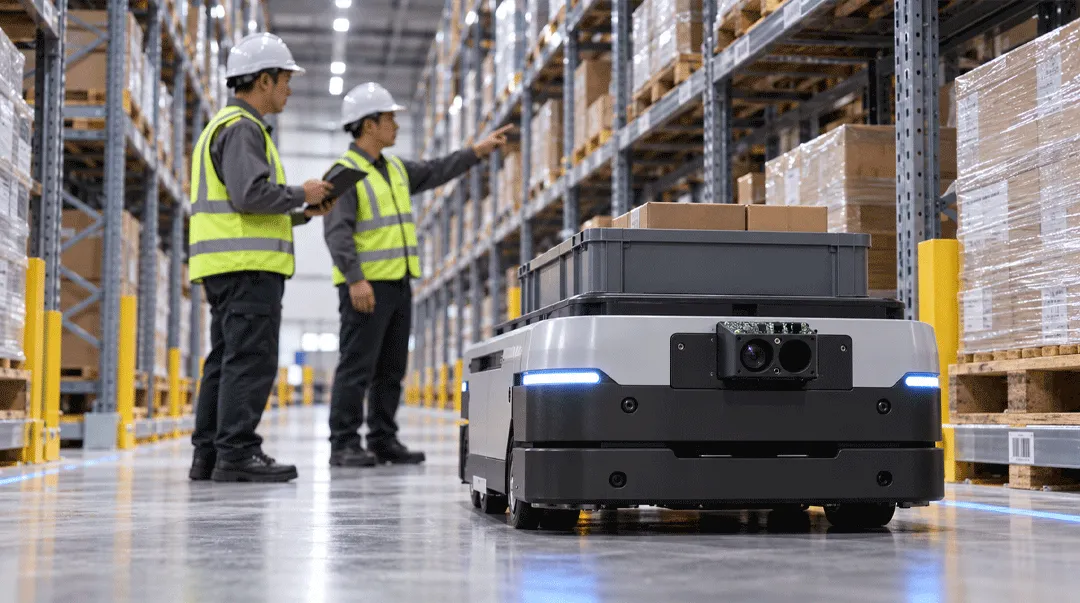

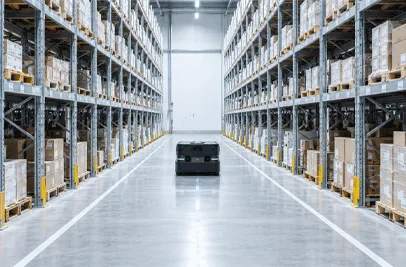

Warehouse Anti-collision Detection

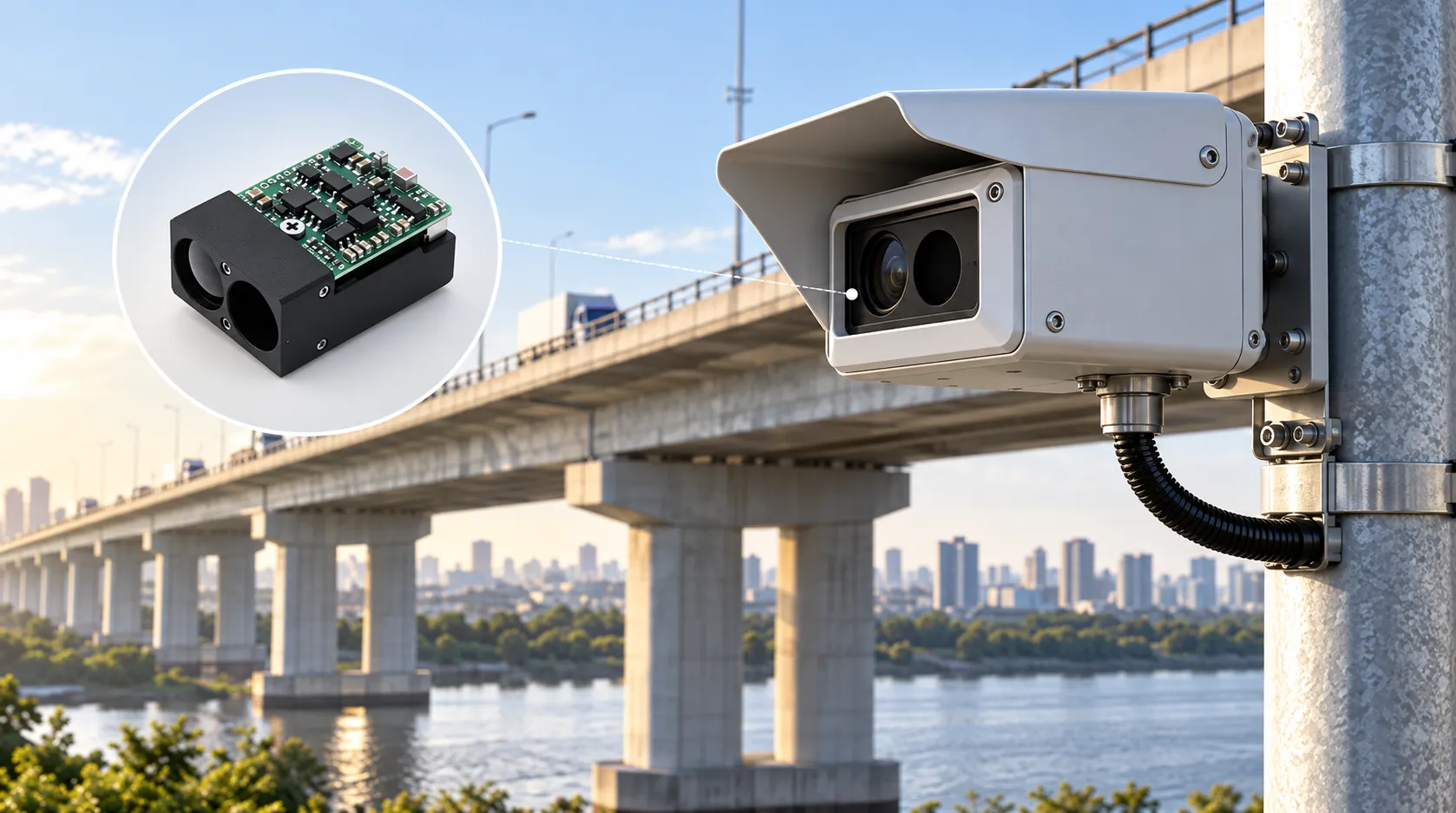

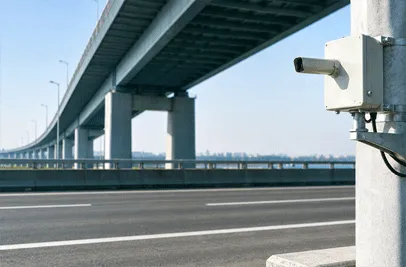

Road Condition Monitoring
01
Day & Night Long-Range Precision Ranging
Equipped with a 905±5 nm Class 1 eye-safe laser, the JV-LRF902BD provides stable long-distance measurement in both daytime and nighttime conditions. It supports building-target ranging up to ≥1200 m by day and ≥2000 m at night, while 0.5×1.7 m targets can be measured up to ≥800 m, delivering reliable ranging data for outdoor observation and monitoring applications.
02
Ultra-Compact Integration & High Measurement Reliability
With dimensions of ≤22.5×15.5×9.5 mm and a weight of ≤5 g, the module is designed for compact embedded systems. It provides a ≥98% valid measurement rate, ≤0.1 m distance resolution, ≤100 ms startup response and single-shot or 1–10 Hz ranging through a UART TTL 3.3 V interface, making it suitable for integration into surveillance devices, inspection systems and other compact optical platforms.
Core Specifications
| Parameters | JV-LRF902BD |
| Representative products |  |
| Eye Safety Class | Class 1 |
| Laser Wavelength | 905 nm ± 5 nm |
| Beam Divergence | ≤6 mrad |
| Receiving Aperture | Φ7 mm |
| Max. Ranging (Visibility ≥10 km) | ≥1200 m (Day, Building) / ≥2000 m (Night, Building) / ≥800 m (0.5 m × 1.7 m Target) |
| Minimum Ranging | 0.1 m |
| Ranging Accuracy | ≤±0.3 m (≤50 m); ≤±0.5 m (50 m < L ≤100 m); ≤±1 m (L >100 m) |
| Valid Measurement Rate | ≥98% |
| Measurement Frequency | Single shot, 1 Hz–10 Hz |
| Distance Resolution | ≤0.1 m |
| Communication Interface | UART (TTL 3.3V) |
| Supply Voltage | DC 3.3 V–5 V |
| Standby Power | ≤0.3 W @3.3 V, POWER_EN High |
| Average Power | ≤0.6 W @3.3 V, 1 Hz |
| Peak Power | ≤1.35 W @3.3 V |
| Startup Response | ≤100 ms |

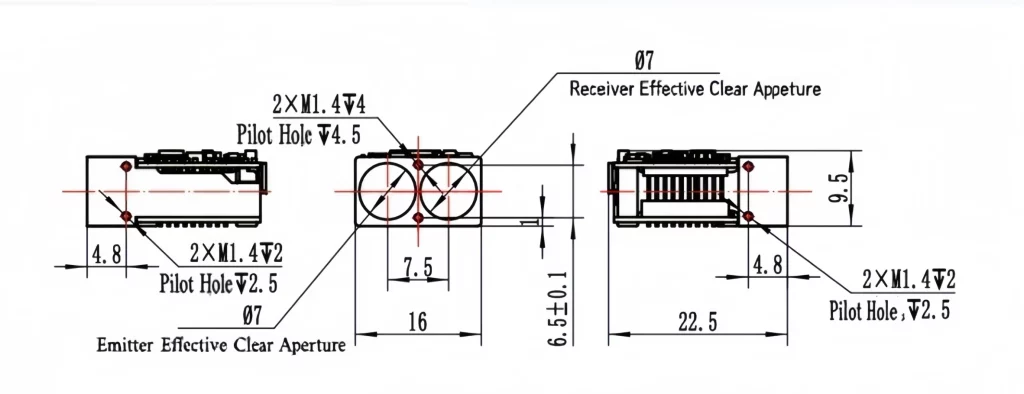

| Dimension | ≤22.5 × 15.5 × 9.5 mm |
| Weight | ≤5 g |
| Temperature Range | Operating: -20℃ ~ +60℃; Storage: -45℃ ~ +70℃ |
