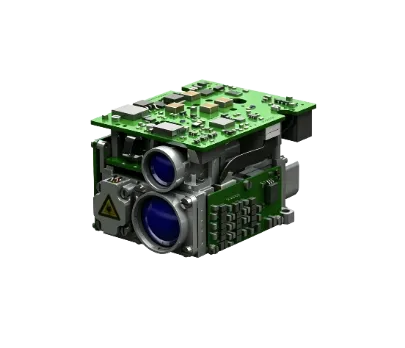

5 KM Laser Rangefinder & Illuminator Module
JV-LRF1005AD is an integrated laser ranging & Illumination Module with 1064nm active Q-switched laser, athermal optics and energy auto-compensation. Compact, wide voltage & wide temperature design, easy to integrate for ground reconnaissance, Vehicle-mounted, shipborne and airborne optoelectronic payloads.
-
-
-
-
OEM
ODM
Application Scenarios
Field Observation
Law Enforcement Monitoring
01
5 KM Laser Illumination & Integrated Ranging
Equipped with a 1064 nm active Q-switched laser and advanced optical design, the JV-LRF1005AD integrates laser ranging and illumination functions into a compact module. With stable laser energy output, precise coding capability and illumination distance up to 2 km, it provides reliable target detection and distance measurement for ground reconnaissance, vehicle-mounted systems and airborne optoelectronic platforms.
02
Compact Integration & Reliable All-Weather Operation
Designed with a lightweight integrated structure, the JV-LRF1005AD features athermal optics, automatic energy compensation and wide temperature adaptability. Supporting RS422/TTL communication and flexible system integration, the module delivers stable intermittent illumination performance in demanding environments while enabling easy deployment in various intelligent sensing systems.

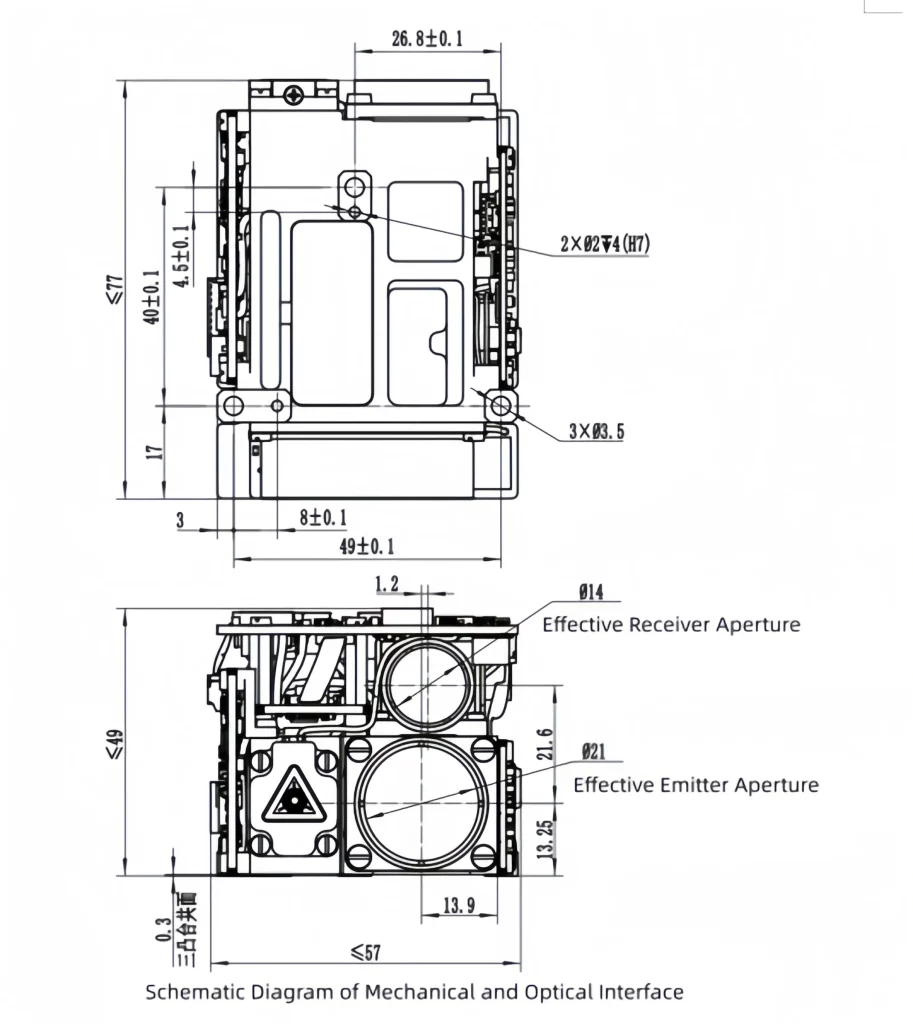

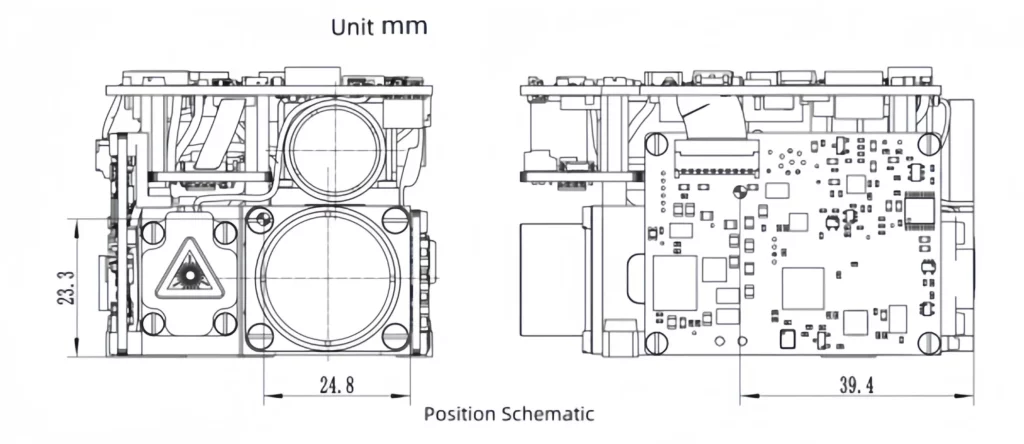

Core Specifications
| Parameters | JV-LRF1005AD |
| Representative products |  |
| Laser Wavelength | 1064 nm ±3 nm |
| Average Laser Energy | ≥25 mJ |
| Energy Stability | Less than 10% of average energy (exclude first 2 s) |
| Laser Divergence Angle | ≤0.6 mrad |
| Optical Axis Stability | ≤0.03 mrad |
| Pulse Width | 15 ns ±5 ns |
| Illumination Distance | ≥2 km |
| Coding Mode & Precision | Precision frequency code 45 ms~56 ms (20 Hz base), external sync: ≤±2 us |
| Illumination Working Mode | Work 60 s, rest 60 s, 5 cycles; 30 min interval for re-trigger |
| Ranging Range | 200 m~5000 m |
| Ranging Frequency | Single shot, 1 Hz, 5 Hz |
| Ranging Accuracy | ≤±5 m |
| Communication Interface | RS422 (TTL customizable) |
| Power Supply Voltage | DC 12 V~36 V |
| Power Consumption | Standby ≤5 W, Average ≤30 W, Peak ≤100 W, Startup Peak ≤60 W |
| Weight | ≤350 g |
| Dimension (L×W×H) | ≤77×57×49 mm |
| Temperature Range | Operating: -40℃~+60℃; Storage: -45℃~+75℃ |
