Night Vision White Tube
Night Vision Goggles

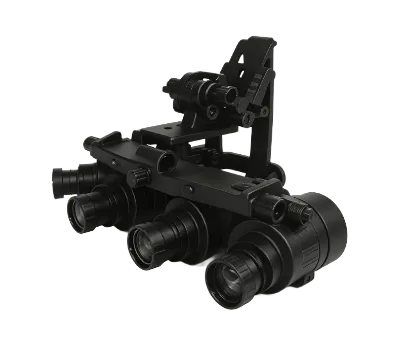

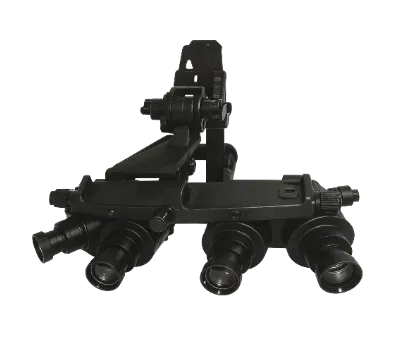

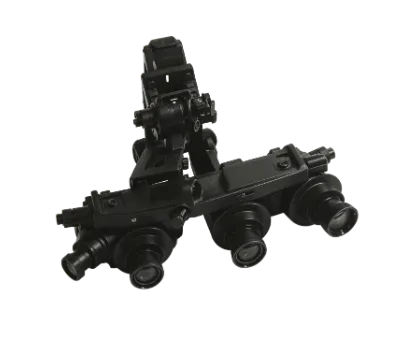

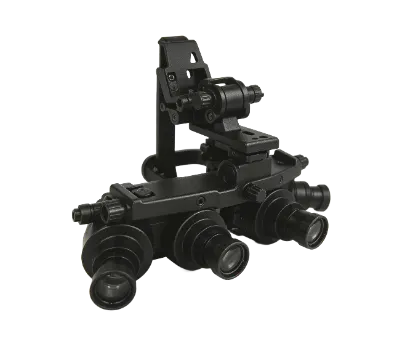

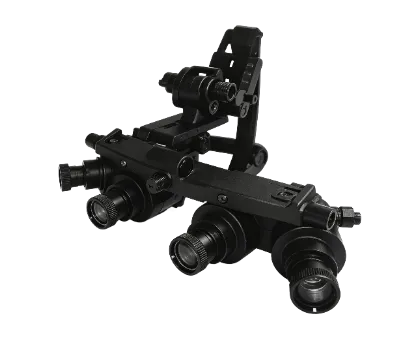

Low-light Four-tubes Night Vision Goggle
The Four-Tube Binocular Night Vision Goggles feature a wide field of view, making them suitable for nighttime environment observation, vehicle driving and operation, nighttime operations, and other activities, enhancing the range of nighttime perception. It utilizes a four-channel imaging architecture and real-time image stitching technology to achieve an ultra-wide-angle panoramic view.The equipment adopts a standard helmet-mounted design, balancing lightweight wear with high reliability. It is a high-performance night vision solution suitable for scenarios such as night security, search and rescue, and outdoor operations.
-
-
-
-
OEM
ODM
Effect Display
Night Vision White Tube
Night Vision White Tube
01
Four-Channel Ultra-Wide Night Vision
Featuring a four-tube imaging architecture with real-time image stitching, the night-vision goggles provides a horizontal field of view ≥90° and vertical field of view ≥24°. With detector resolution ≥800×600 and a focus range from 250mm to infinity, it delivers a wide panoramic view for low-light observation.
02
Adjustable Helmet-Mounted Observation & Recording
Designed for helmet-mounted use, the device supports 52–72mm interpupillary adjustment, -5D to +3D diopter adjustment and ≥25mm eye relief. It also supports photo/video recording, battery reverse-polarity protection, 1X magnification with optional 3X/4X/6X configurations and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVD401 |
| Representative products |  |
| Recognition distance | Under the conditions of visibility ≥8km |
| Magnification | 1X (3X/4X/6X Optional) |
| FOV | Horizontal FOV ≥90°, Vertical FOV ≥24° |
| Focus range | 250mm ~ ∞ |
| Dioptric Adjustment Range | -5D ~ +3D |
| Eye Relief | ≥25mm |
| Pupil Distance Adaptation Range | 52mm ~ 72mm |
| Detector Resolution | ≥800 × 600 |
| Functions | Battery reverse polarity protection, Photo/Video recording |
| Weight | ≤580g (Main unit) |
| Size | 210mm × 70mm × 110mm |
| Working temperature | -40℃ ~ +50℃ |
| Storage temperature | -55℃ ~ +70℃ |
| Waterproof | IP65 (IP67 Optional) |
