Fusion Night Vision Goggles with 640×512 Thermal Imaging | JV-FNV2105

Night Vision Goggles

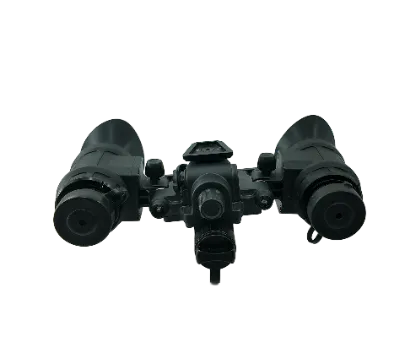

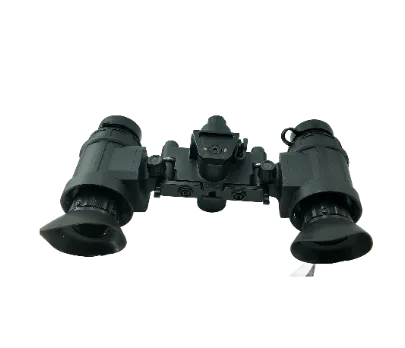

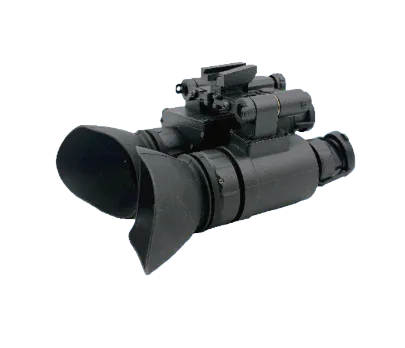

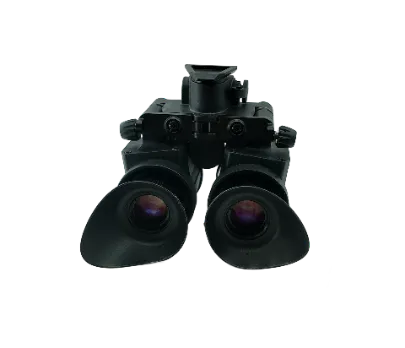

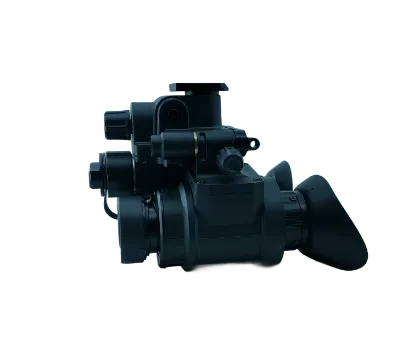

Binocular Fusion Night Vision Goggles (Image Intensifier goggles)

This is an image tube fusion night vision device. The binocular fusion night vision goggles delivers both infrared and low-light imaging via optical display fusion, combining the respective strengths of low-light and infrared imaging to adapt to complex and volatile environments, making it ideal for nighttime observation. It supports a wide range of functions including video input and thermal fusion, and features multiple image viewing modes, precise target positioning and guidance, image capture as well as real-time data transmission. It can efficiently assist users in on-site investigation, search operations and intelligence gathering missions.

  • CE
  • FC
  • ISO
  • OEM
    ODM

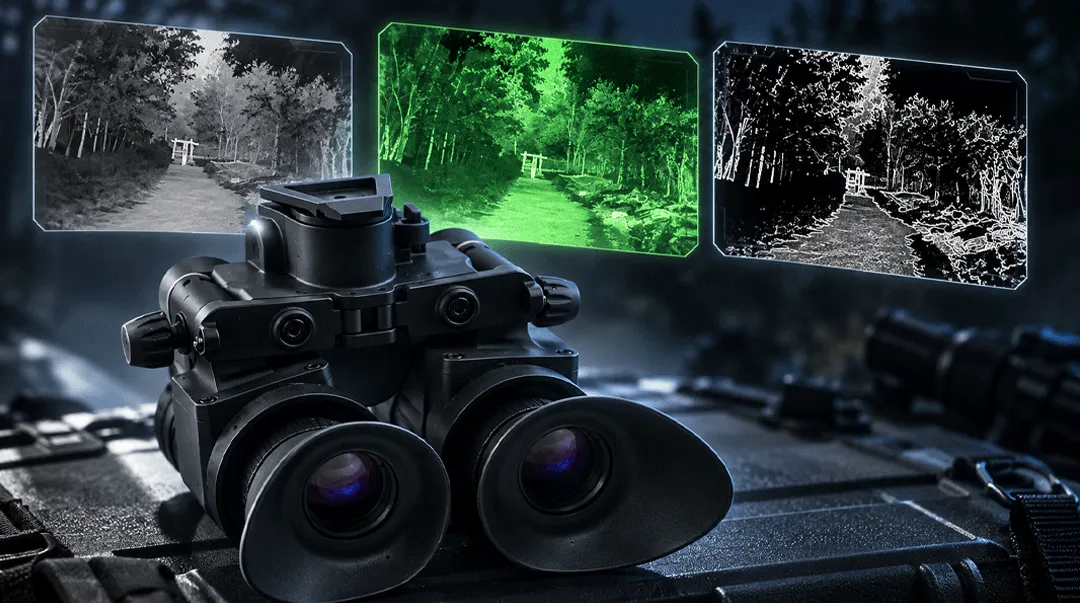

Effect Display

Monochrome Low-Light Imaging
Green Edge Enhancement
Monochrome Outline Enhancement
01

Dual-Spectrum Low-Light & Infrared Fusion

Combining a optional GEN2+ / GEN3 image intensifier with a 640×512 infrared detector, the binocular fusion night vision optional GEN2+ / GEN3 image intensifiers integrate low-light and infrared imaging for enhanced target visibility. Low-light recognition reaches ≥120m under moon-less conditions, while fusion mode extends pedestrian recognition to ≥200m.

02

Multi-Mode Binocular Observation

Supporting five viewing modes including low-light, infrared and image fusion, the device features a ≥40° low-light field of view, 56–72mm adjustable interpupillary distance and 1X magnification with optional 3X/4X/6X configurations. Brightness/contrast adjustment and manual or automatic infrared image correction provide flexible observation in changing environments.

Core Specifications

Parameter JV-FNV2105
Representative products Binocular Fusion Night Vision Goggles (Image intensifier)
Recognition distance No moon, identify pedestrians: Low light ≥120m; Fusion ≥200m
FOM 1400–2200+
IIT GEN2+ / GEN3 (Optional)
Magnification 1X (3X/4X/6X Optional)
FOV Low light ≥40°; Infrared ≥34°×26°
Center resolution 60 lp/mm
Infrared Detector Resolution 640×512
Exit pupil distance 25mm
Pupil distance adjustment 56mm ~ 72mm
Power 18650 battery
Focus range 250mm ~ ∞
Waterproof IP65 (IP67 Optional)
Working temperature -40℃ ~ +50℃
Weight ≤550g (Mainframe)
Size 150mm × 105mm × 80mm
