Green Phosphor Low-Light Imaging
Night Vision Goggles

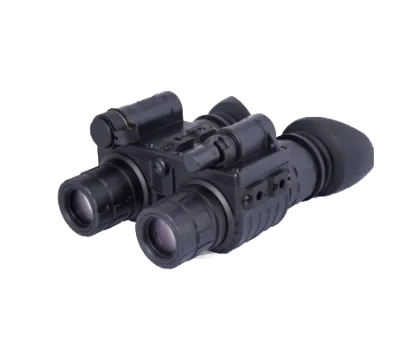

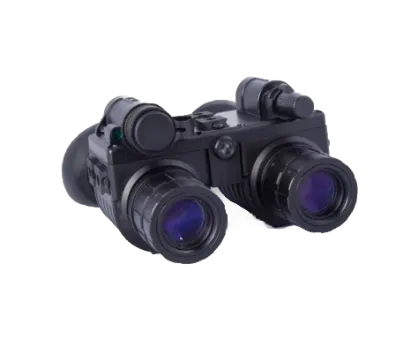

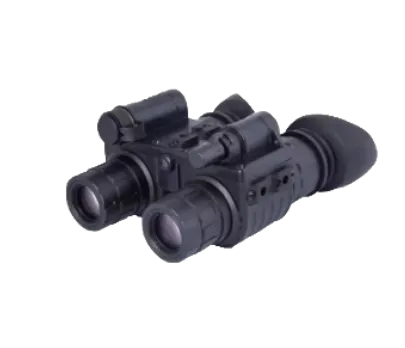

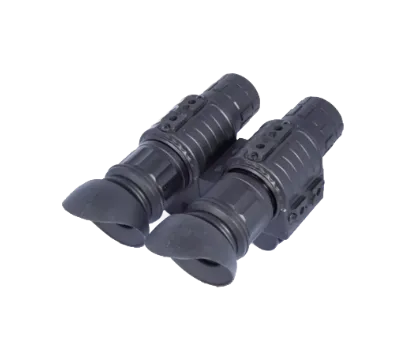

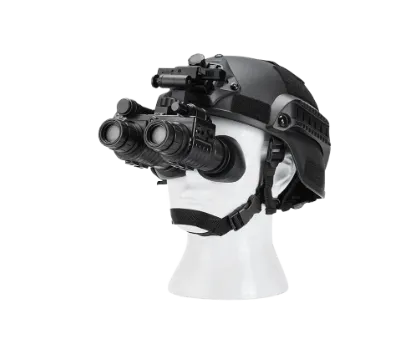

Binocular Night Vision Goggle
This is a compact and lightweight night vision device equipped with a high performance Gen 2+ image intensifier, with Gen 3 tubes available as an optional upgrade. It features outstanding comprehensive performance, including a compact body, lightweight design, ultra wide field of view, and sharp, distortion-free, lifelike imaging. Constructed with premium materials, the unit is waterproof, rugged, and highly reliable for long term outdoor operation. It is built with bright light protection to prevent damage to the image intensifier tube caused by strong light exposure. Additionally, it adopts a flip up power off structure and supports optional helmet mounting.
-
-
-
-
OEM
ODM
Effect Display
White Phosphor Night Vision
Green Phosphor Night Vision
01
GEN2+ / GEN3 High-Performance Binocular Night Vision
Featuring a standard GEN2+ image intensifier with optional GEN3 configuration, these binocular night-vision goggles deliver clear low-light observation with a minimum 40°field of view and 1×magnification. Under moonless conditions, it achieves pedestrian recognition beyond 100 m and vehicle recognition beyond 150 m.
02
Lightweight Helmet-Mounted Design & Extended Endurance
Engineered for comfortable head-mounted observation, the device supports 56–72 mm adjustable interpupillary distance, 6D to +4D diopter adjustment, and a focusing range from 250 mm to infinity. Weighing a maximum of 420 g (without battery and bracket), it offers over 8 hours of continuous runtime. It also features strong-light protection, flip-up power-off function, standard IP65 protection and optional IP67 protection for harsh outdoor scenarios.
Core Specifications
| Parameter | JV-NVB201 |
| Representative products |  |
| Recognition distance | No moon, identify pedestrians ≥100m, vehicles ≥150m |
| IIT | GEN2+ / GEN3 (Optional) |
| Magnification | 1X (3X/4X/5X Optional) |
| Exit pupil distance | 15mm |
| Exit pupil diameter | 9mm |
| Pupil distance adjustment | 56mm ~ 72mm |
| Diopter | -6SD ~ +4SD |
| Focus range | 250mm ~ ∞ |
| Power | AA battery |
| Waterproof | IP65 (IP67 Optional) |
| Working time | ≥8h (Normal temperature) |
| Working temperature | -40℃ ~ +50℃ |
| Weight | ≤420g (Without battery, bracket) |
| Size | 103mm × 115mm × 80mm |
| FOV | ≥40° |
