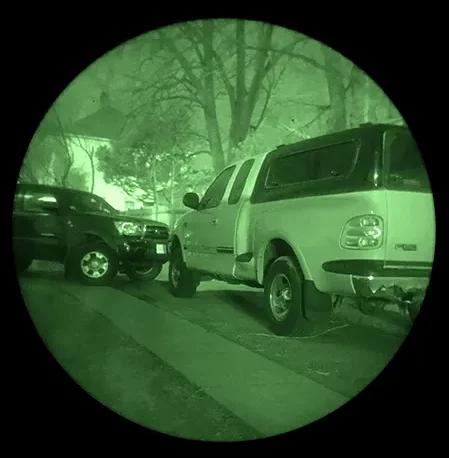

Green Phosphor Night Vision
Night Vision Goggles

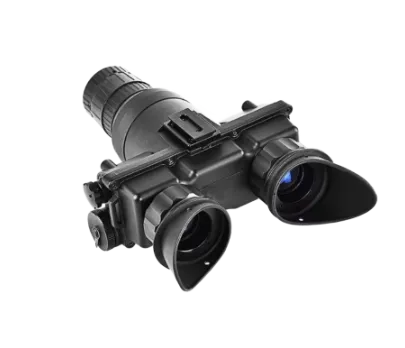

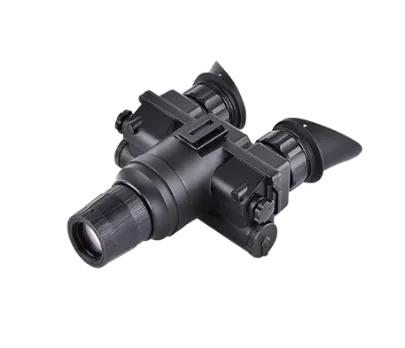

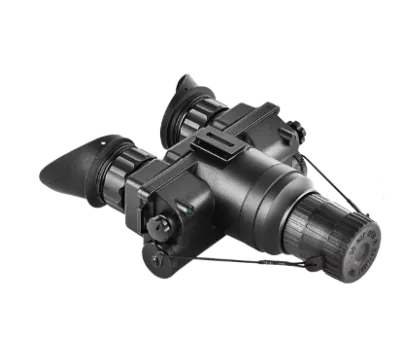

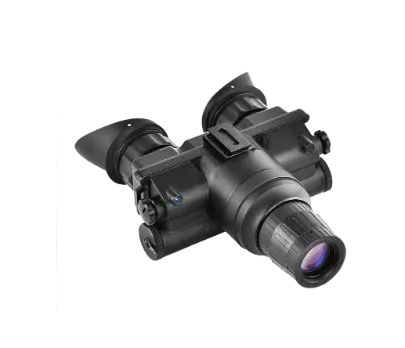

Dual View Monocular Night Vision Goggles
This is a high-performance 2nd-generation enhanced night vision device. It is compact, lightweight with sharp imaging and adjustable interpupillary distance. The magnification can be changed by replacing the objective lens. Constructed from premium materials, it is waterproof, rugged and highly reliable. Equipped with a built-in infrared illuminator that emits invisible infrared light, it enables observation even in complete darkness. This night vision device also features anti-glare function to protect the image tube from strong light sources. It comes with a flip-up shutdown design and can be matched with an optional helmet mount for use.
-
-
-
-
OEM
ODM

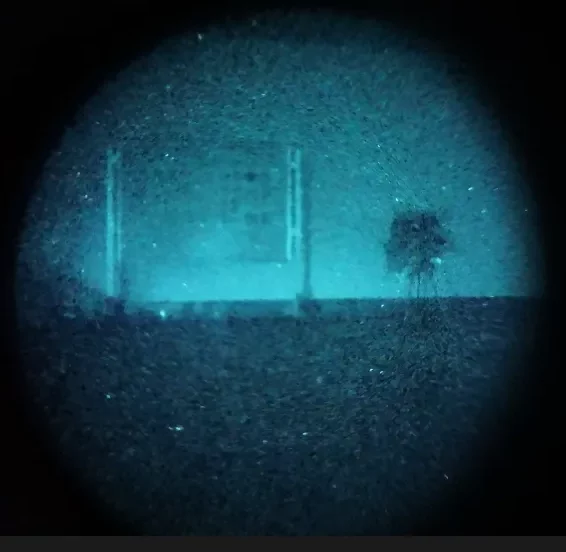

Effect Display

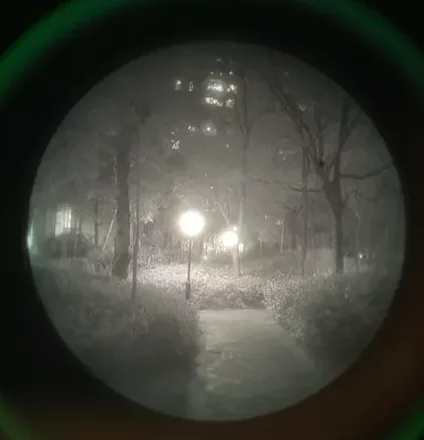

White Phosphor Night Vision Imaging
White Phosphor Night Vision
01
GEN2+/GEN3 High-Performance Night Vision
Supporting optional GEN2+ / GEN3 image intensifier tubes with FOM 1400–2200+ and 60–72 lp/mm resolution, the night vision goggles delivers sharp low-light imaging with a 40° or 50° field of view, F1.2 25mm lens system and focus from 0.25m to infinity.
02
Lightweight Helmet-Mounted Observation

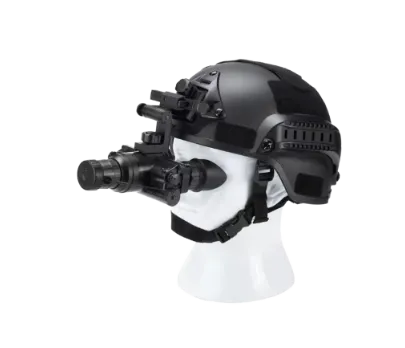

Designed for head-mounted and helmet-mounted use, the compact 0.47kg night vision device supports 1X magnification with optional 3X/4X/5X configurations, automatic brightness adjustment and high-light protection. A CR123A battery provides 60–100 hours of operation, with IP65 protection and IP67 optional.
Core Specifications
| Parameter | JV-NVG201 |
| Representative products |  |
| IIT | GEN2+ / GEN3 (Optional) |
| FOM | 1400–2200+ |
| Magnification | 1X (3X/4X/5X Optional) |
| FOV deg | 40° or 50° |
| S/N db | 23–32 |
| Resolution (lp/mm) | 60–72 |
| Diopter (deg) | -1 |
| Lens system | F1.2, 25mm |
| Range of Focus (m) | 0.25m to infinity |
| Dimensions (mm) | 153 × 121 × 58 |
| Weight (kg) | 0.47 |
| Battery Type | CR123A battery |
| Battery Life (h) | 60–100 h |
| Operating Temperature (℃) | -51 to +49 |
| Environmental Rating | IP65 (IP67 Optional) |
