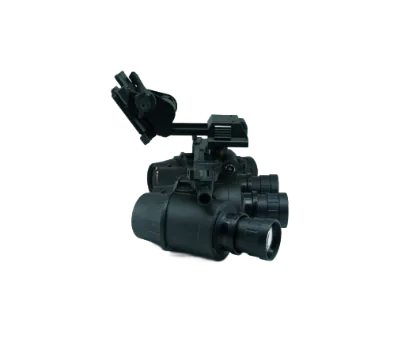

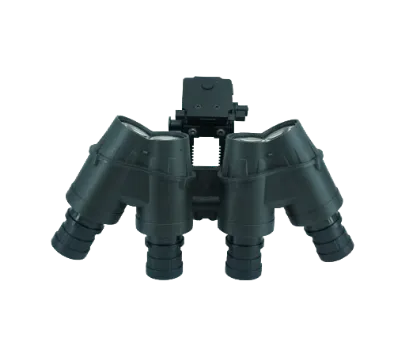

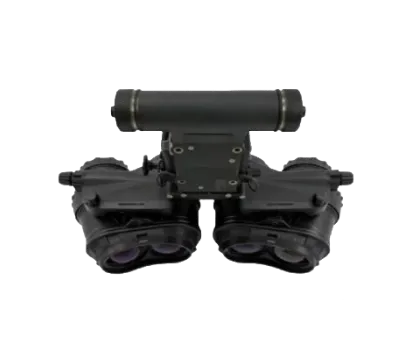

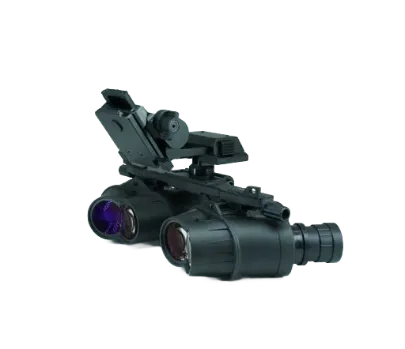

Four-Tube Night Vision Goggles
This low-light night-vision device is equipped with a high-performance Gen 2+ image intensifier tube, with Gen 3 tubes available for upgrade. Adopting a professional four-tube panoramic wide field-of-view design, it reduces frequent head movement during scanning, enables real-time target capture, and greatly improves overall situational awareness. As a high-end four-tube binocular low-light night vision unit, it delivers an ultra-wide viewing range. It is widely used for nighttime environmental observation, vehicle driving and field operations, effectively extending visual perception in dark and low-light scenarios.
-
-
-
-
OEM
ODM
Effect Display
White Phosphor Night Vision
Green Phosphor Night Vision
01

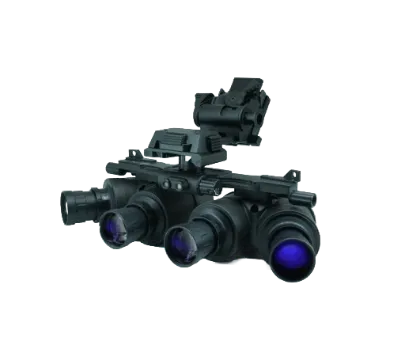

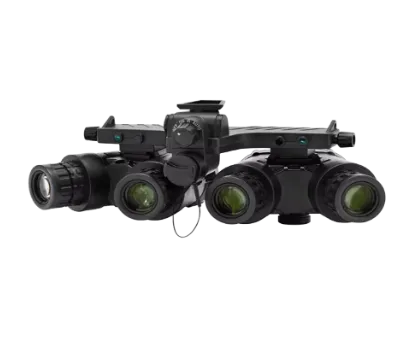

Panoramic Four-Tube Night Vision
Configurable with GEN2+ / GEN3 image intensifier tubes, these four-tube night-vision goggles provide an ultra-wide panoramic field of view with a minimum 100° horizontal angle and minimum 40° vertical angle. Under moonless conditions, it recognizes stationary and moving personnel at distances over 120 meters, significantly enhancing nighttime situational awareness.
02

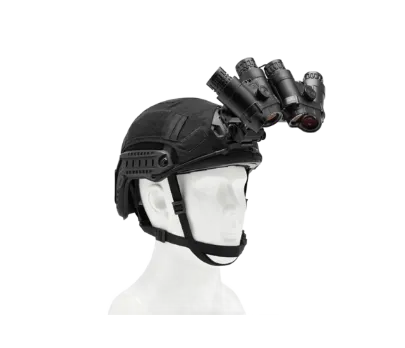

Extended Endurance & Wearable Observation
Built for long-time comfortable observation, the device features 52–72 mm adjustable interpupillary distance, 35 mm eye relief, and manual focusing for targets at varying distances. It offers over 24 hours of continuous operation, and comes with glare protection, battery reverse-polarity protection, standard IP65 protection and optional IP67 protection.
Core Specifications
| Parameter | JV-NVF201 |
| Representative products |  |
| Recognition Distance | Recognition range for standing and moving people ≥120m with no moon |
| IIT | GEN2+ / GEN3 (Optional) |
| FOV Angle | Horizontal ≥100°; Vertical ≥40° |
| Magnification | 1X (3X/4X/6X Optional) |
| FOM | 1200–1800 (Optional) |
| IPD Adjustment Range | 52mm ~ 72mm |
| Continuous Working Time | ≥24h (Normal temperature) |
| Waterproof | IP65 (IP67 Optional) |
| Eye Relief | 35mm |
| Size | 215mm × 73mm × 113mm |
| Weight | ≤775g (Without battery box) |
| Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -50℃ ~ +70℃ |
| Battery Type | 1×123A Lithium Battery / Optional Battery Box (4×123A Lithium Batteries) |
| Power Supply | 2.8–4.2V |
