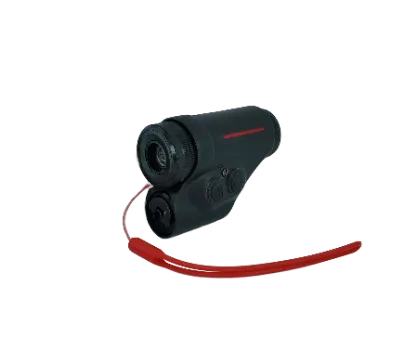

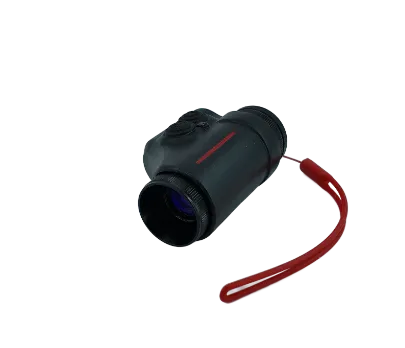

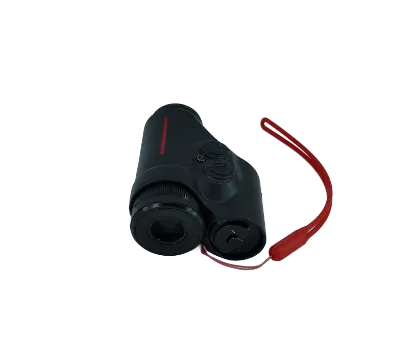

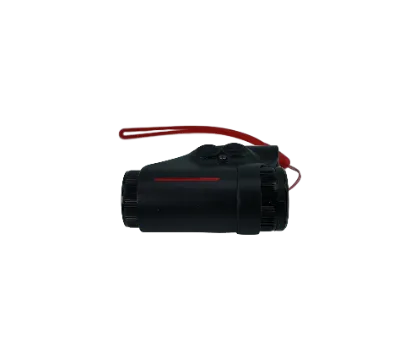

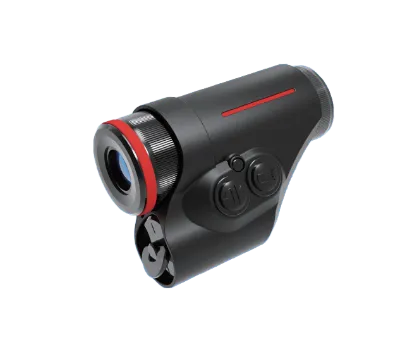

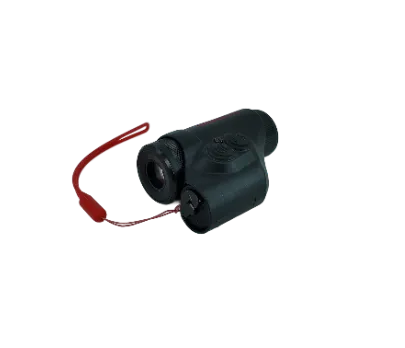

Handheld/Head Mounted Digital Observation Goggles
This handheld and head-mounted digital observation monocular is a lightweight, multi-scenario optical observation device. It features a compact all-in-one monocular body design and supports two usage modes: portable handheld observation and helmet mounting. Integrated with a high-definition digital imaging system and low-light enhancement technology, it meets diverse demands for high-definition daytime observation and low-light nighttime operation, and is widely applicable to outdoor exploration, security patrols, field surveys, industrial inspection, emergency rescue and other scenarios.
-
-
-
-
OEM
ODM
Effect Display
Monochrome Night Vision Imaging
Monochrome Night Vision Imaging
01
High-Resolution Low-Light Night Vision
Equipped with an 800×600 sensor and 1024×768 display, the device supports infrared-assisted illumination and provides pedestrian recognition at ≥100m under moon-less conditions. A ≥25°×18° field of view and 250mm-to-infinity focusing range deliver clear and flexible nighttime observation.
02
Lightweight Handheld & Head-Mounted Design
Weighing ≤220g, the compact night vision device supports both handheld and helmet-mounted use with interchangeable left/right-eye observation. It features 1X magnification with optional 3X/4X/6X configurations, ≥6 hours of continuous operation, battery reverse-polarity protection and IP65 protection with IP67 optional.
Core Specifications
| Parameter | JV-NVD103 |
| Representative products |  |
| Recognition distance | No moon, identify pedestrians ≥100m |
| Magnification | 1X (3X/4X/6X Optional) |
| FOV | ≥25° × 18° |
| Focus range | 250mm ~ ∞ |
| Diopter | -5SD ~ +3SD |
| Sensor resolution | 800×600 |
| Display Resolution | 1024×768 |
| Power | 20350 battery |
| Continuous working time | ≥6h (Normal temperature) |
| Waterproof | IP65 (IP67 Optional) |
| Working temperature | -40℃ ~ +55℃ |
| Storage temperature | -55℃ ~ +70℃ |
| Weight | ≤220g |
| Size | 92mm × 67mm × 40mm |
