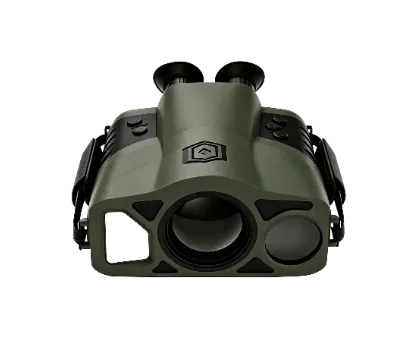

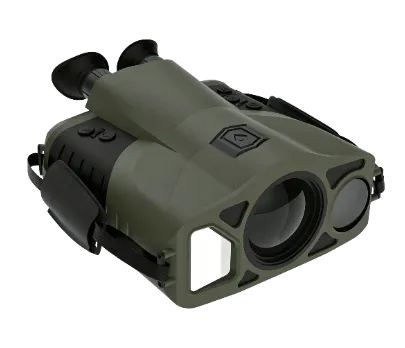

JV-CTMFB655-13T 640×512 Cooled Thermal Imaging Binoculars

640×512 Cooled Thermal Imaging Binoculars | JV-CTMFB655-13T

Thermal Imaging Camera

Cooled Thermal Imaging Binoculars

This product is a refrigerated ultra-long-range multi-spectral target detection device capable of observing dual bands: 0.4μm~1.1μm visible light and 3μm~5μm mid-wave infrared. It provides dual optical band imaging highlighting suspicious living targets, and features long-range target ranging, speed measurement, precise positioning in different coordinate systems, and multi-environmental parameter acquisition.

OEM
ODM

Effect Display

Infrared Thermal Imaging

Cooled Dual-Band Multi-Spectral Imaging

Combining 640×512 mid-wave infrared imaging with 1920×1080 visible-light imaging, the system supports 15–300mm F4.0 optics and continuous optical zoom fusion without loss of image resolution, enabling clear long-range observation and target highlighting.

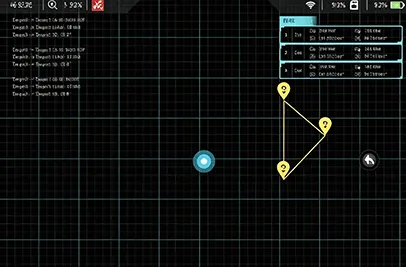

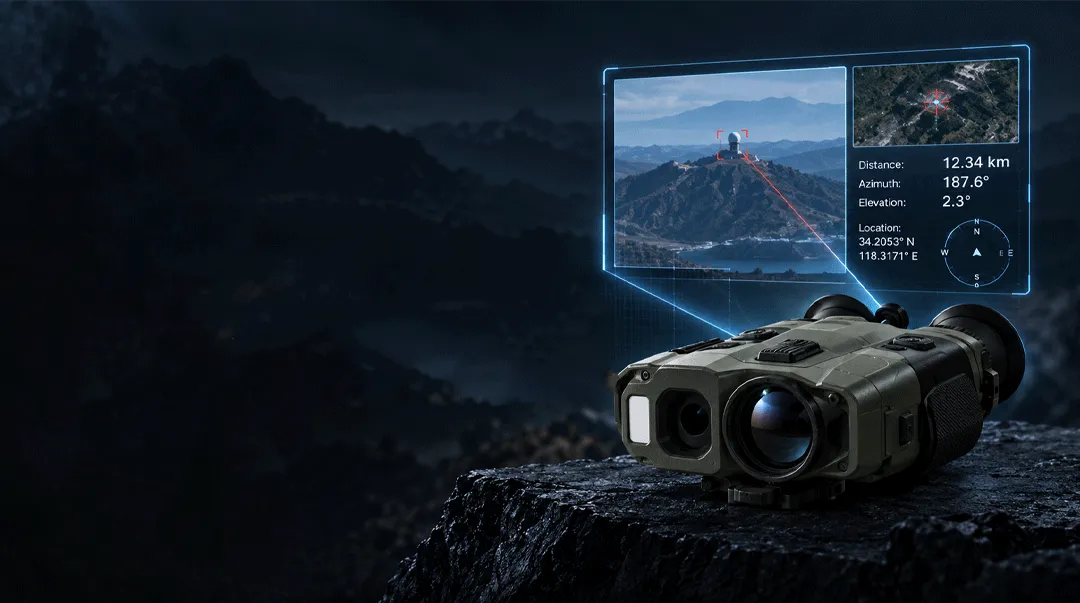

Ultra-Long-Range Ranging & Precision Positioning

Equipped with a 1535nm eye-safe laser rangefinder, the system provides measuring ranges of ≥10km for vehicles and ≥13km for buildings with ±2m accuracy, while BeiDou positioning with optional GPS/GLONASS supports precise target localization and orientation.

Core Specifications

Parameter	JV-CTMFB655-13T
Representative products
Device type	Refrigerated cadmium mercury
Infrared Resolution	640×512
Focal length	15~300mm f4.0
FOV (Optical)	35.5°×28.7° ~ 1.83°×1.47°
Visible Light Resolution	1920×1080
Visible Light FOV (Optical)	35.5°×28.7° ~ 1.37°×1.10°
Laser wavelength	1535nm (Eye safety)
Max measuring range	≥10Km (Vehicle); ≥13Km (Building)
Measurement accuracy	±2m
Polarity Positioning mode	BeiDou (Optional: GPS/GLONASS multi-mode)
Azimuth orientation accuracy	0.2° (RMS Host tilt angle of 0°)
Pitch angle measurement error	≤0.1° (RMS, @-85° ~ 85°)
Roll angle measurement error	≤0.1° (RMS, @-65°≤Pitch angle≤65°)
Weight	≤3.8kg
OLED	0.71 inch
OLED resolution	1920×1080
Working Time	Continuous working time ≥4 hours (@25℃)
