JV-HTI625 640×480 Thermal Imaging Monocular

640×480 Thermal Imaging Monocular | JV-HTI625

Thermal Imaging Camera

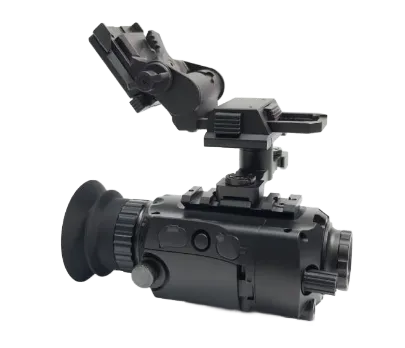

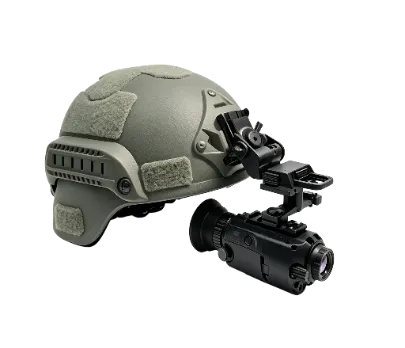

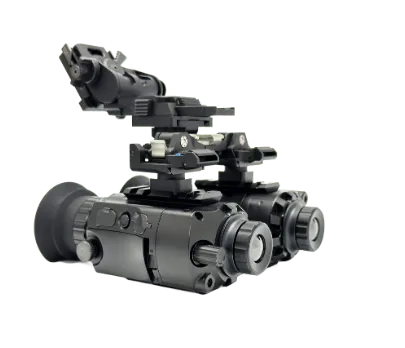

Monocular Thermal Imaging Camera

This is a dedicated man reconnaissance target shooting night vision viewer. The product can provide high-quality high-resolution infrared images, detecting in total darkness, fog and haze fireworks and can be used for man-night observation. By changing different connection support, it can be used in conjunction with a variety of sighting equipment, shooting equipment, observation equipment. It can be as all types of light weapons,telescopic sight, also be used as handheld observation for night reconnaissance, search target.

OEM
ODM

Effect Display

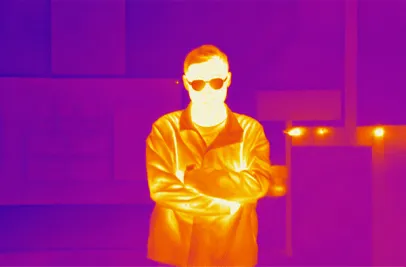

Infrared Thermal Imaging

High-Resolution Shutterless Thermal Imaging

Equipped with a 640×480 uncooled infrared detector, 25mm lens, 8–14μm spectral range, ≤40mK NETD and 50Hz frame rate, the thermal camera combines shutterless technology with WDR image processing for reliable thermal observation.

Lightweight Multi-Function Observation

Featuring 2X/4X/8X digital zoom, a 1440×1080 OLED display, compass, Wi-Fi, pitch and slant angle support, the 360g thermal camera provides 6–8 hours of continuous operation and animal recognition up to 0.6km.

Core Specifications

Parameter	JV-HTI625
Representative products
Recognition distance	0.6km for animals
Detector	Uncooled sensor Resolution 640×480
FOV	28.7°×21.7°
Spectral range	8–14μm
NETD	≤40mK
Frame rate	50Hz
Focal length	25mm
Zoom	Digital zoom: 2X/4X/8X
Diopter adjustment	-5 to +5 dpt
Laser range finder	Optional
Display	1440×1080 OLED
Start up	≤5 seconds
Pitch angle	Support
Slant angle	Support
Compass	Support
WIFI	Support
Battery type	Li-Ion battery 18350, rechargeable
Operating time	6–8 hours continuous operation
Working temp.	-40℃ ~ +60℃
Weight	360g
