JV-NSR201 Gen2+/Gen3+ Night Vision Scope

Gen2+/Gen3+ Night Vision Scope | JV-NSR201

Night Vision Goggles

Night Vision Scope

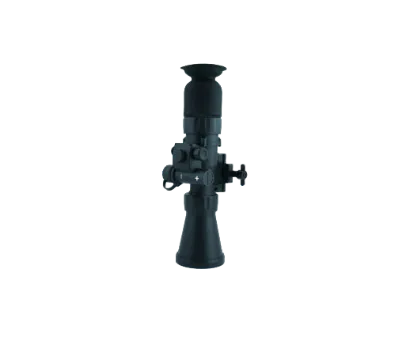

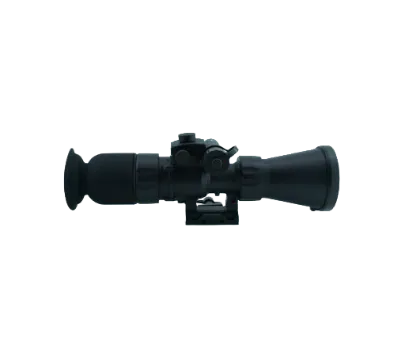

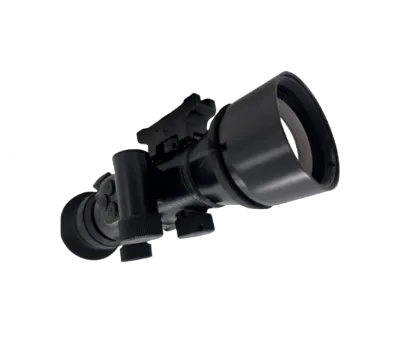

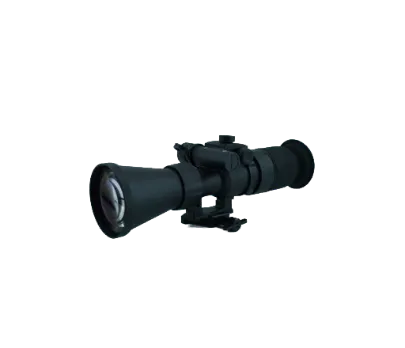

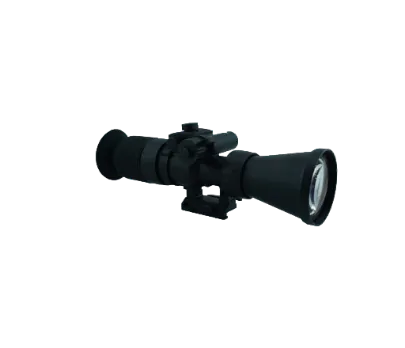

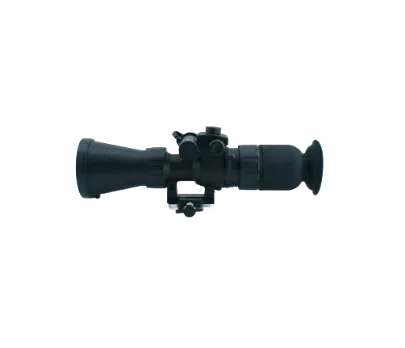

The JV-NSR201-4.5X is a professional night vision scope engineered for precision and reliability. It features a classic reticle with vivid red lines against a green or white fluorescent background, ensuring clear target acquisition in low-light conditions. The innovative quick-adjust and quick-lock mechanism allows for rapid, secure mounting and removal. Built with a rugged, IP67 waterproof housing, this scope is built to withstand harsh environments. The multi-coated low-light lens and nitrogen-purged interior effectively eliminate internal fogging, delivering consistent optical performance even in humid or extreme weather conditions.

OEM
ODM

Effect Display

Green-Tone Low-Light Imaging

White Phosphor Night Vision

Image Intensifier Night Vision

Gen2+/Gen3+ Long-Range Night Vision

Equipped with a Gen2+/Gen3+ image intensifier, the night vision scope provides 3.8× magnification, a 12° field of view and a focusing range from 20m to infinity. It supports human recognition at distances of ≥400m, delivering clear observation and target acquisition in low-light environments.

Precision Adjustment & Rugged Quick-Mount Design

Designed for reliable field operation, the scope features ±20 mil adjustment with 0.25 mil increments, multi-layer coated optics and a quick-install locking mechanism. With IP67 waterproof protection, ≥20 hours of continuous operation and a weight of ≤620g, it delivers dependable performance in demanding outdoor conditions.

Core Specifications

Parameter	JV-NSR201
Representative products
Magnification Generation (IIT)	Gen2+ / Gen3+
Magnification	3.8×
FOV	12°
Exit pupil	40mm
Focusing range	20m ~ ∞
Recognition	≥400 meter (for human)
Diopter	-6SD ~ +3SD
Divide range	±20mil
Partition adjustment amount	0.25mil
Working Temperature	-40℃ ~ +50℃
Power supply	CR2 battery
Waterproof	IP67
Continuous working time	≥20h
Weight	≤620g
Size	290mm × 85mm × 99mm
